Small flux leakage ,low loss, small phase error and high precision；
The voltage is directly input ,and the secondary side directly outputs the voltage ;
Reliable operation and good consistency ;
Various shape structures are available .
| Electrical performance parameters |
Operation temperature | -25℃～+55℃/-40℃～+85℃ optional | Relative humidity | ≤90%hPa |
|---|---|---|---|---|
| Internal insulation | Epoxy resin | Insulation resistance | ≥500 MΩ/500V DC | |
| Power frequency withstand voltage | 3000V AC/1min | Withstand impulse voltage | 5000V（1.2/50μsStandard Lightning Wave） | |
| Operation frequency | 50～400Hz | Rated load | ＞5kΩ | |
| Accuracy class | According to（IEC 61869-3）0.1 class or （GB 20840.3-2013）accuracy 0.1 class |
Environmental friendly | According to the requirements of RoHS |

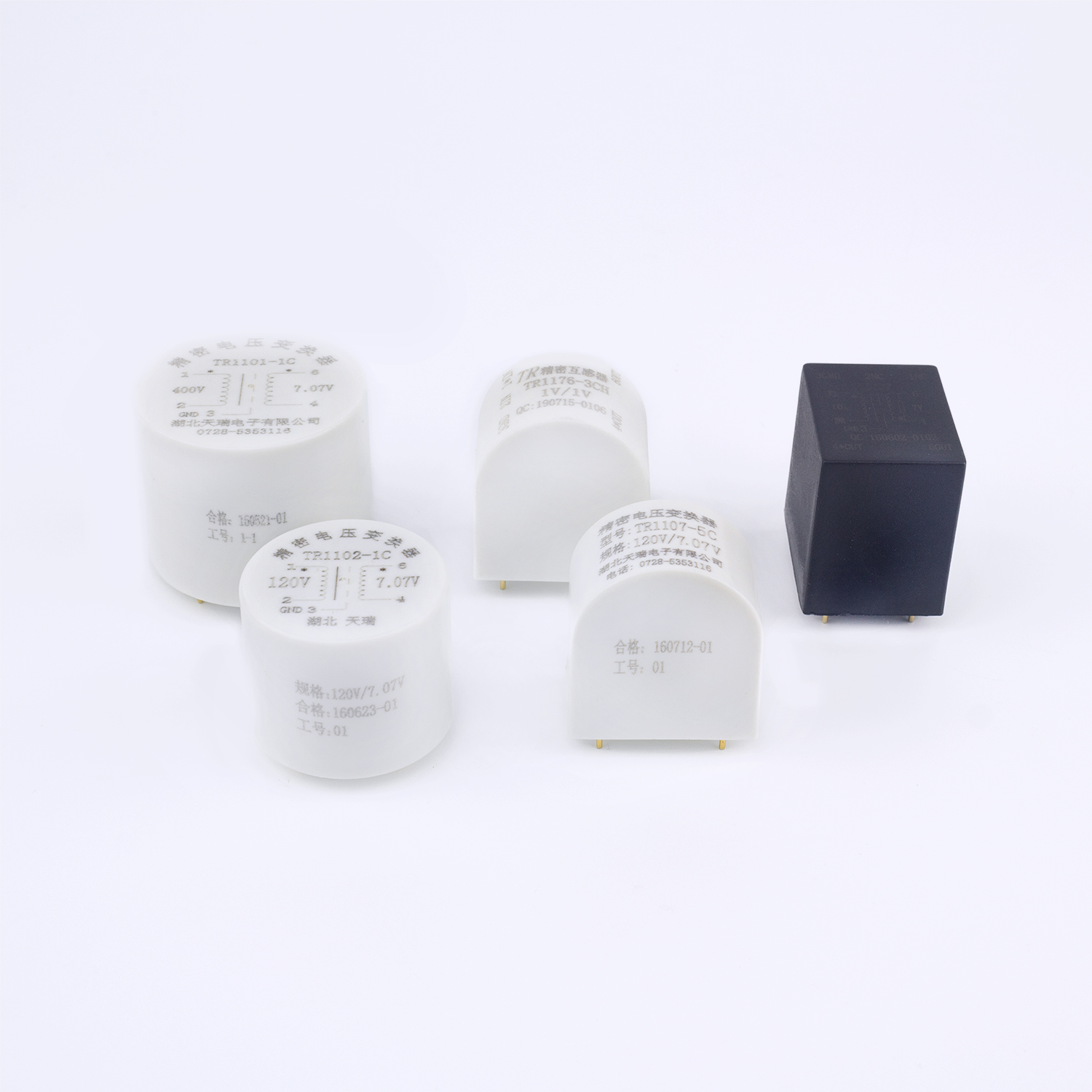

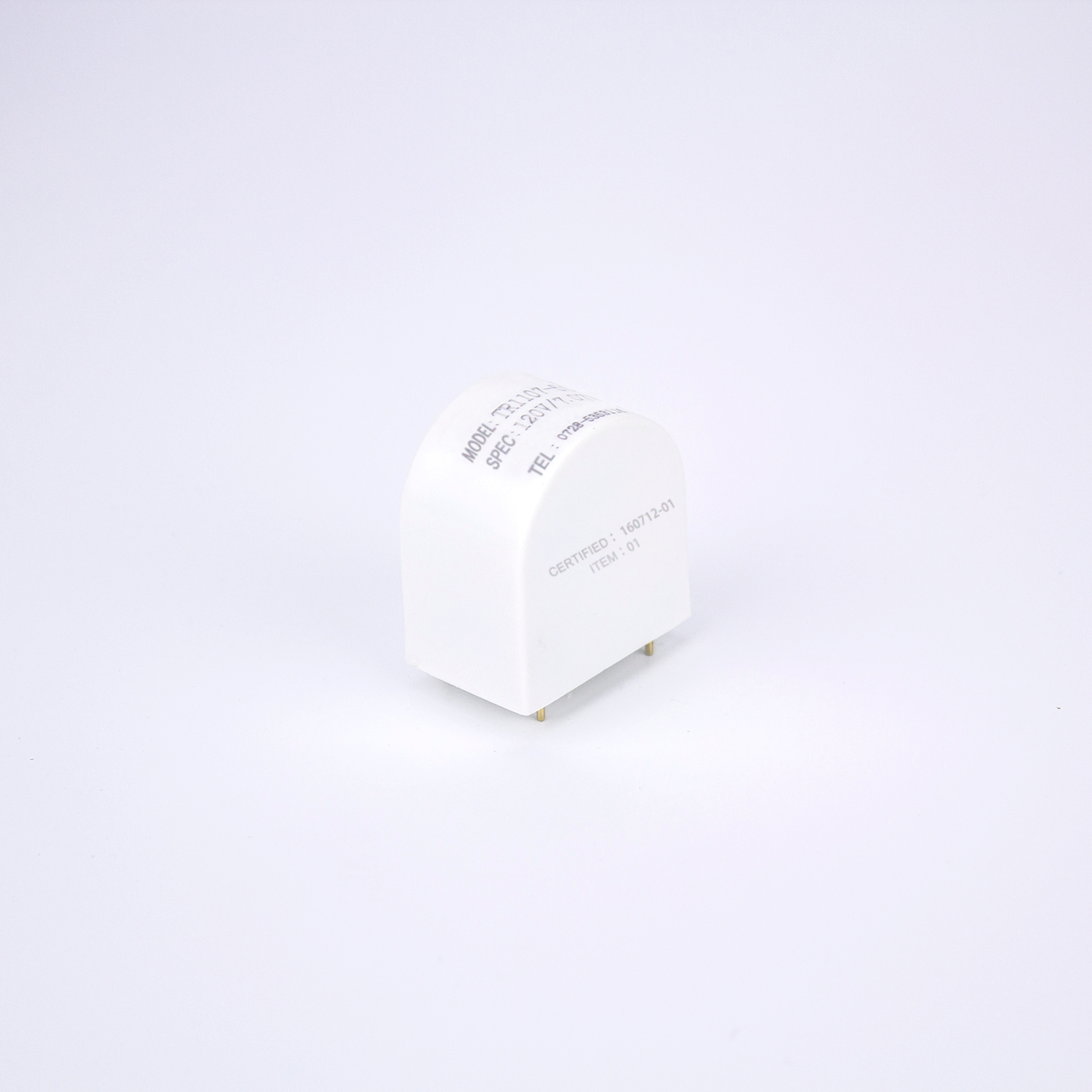

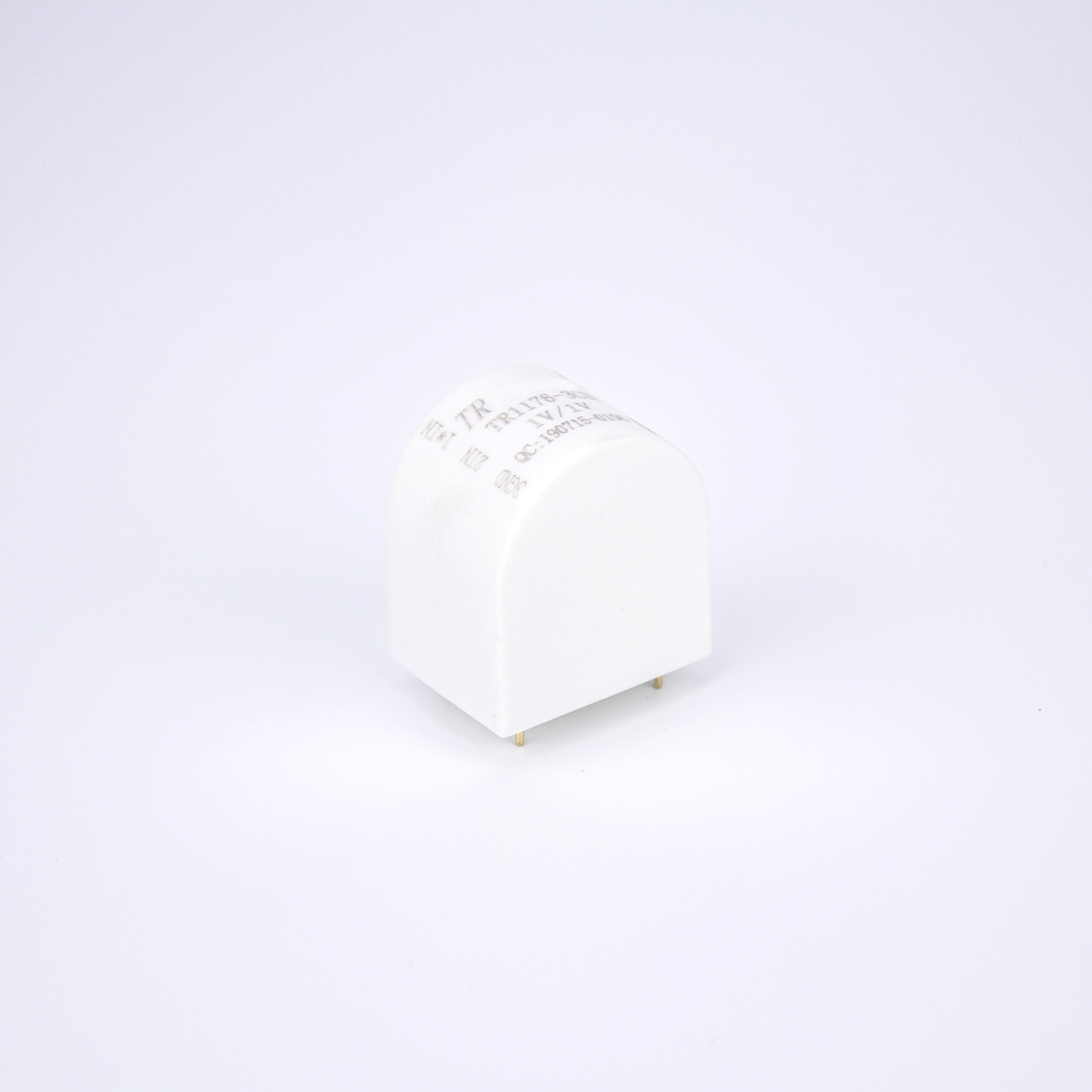

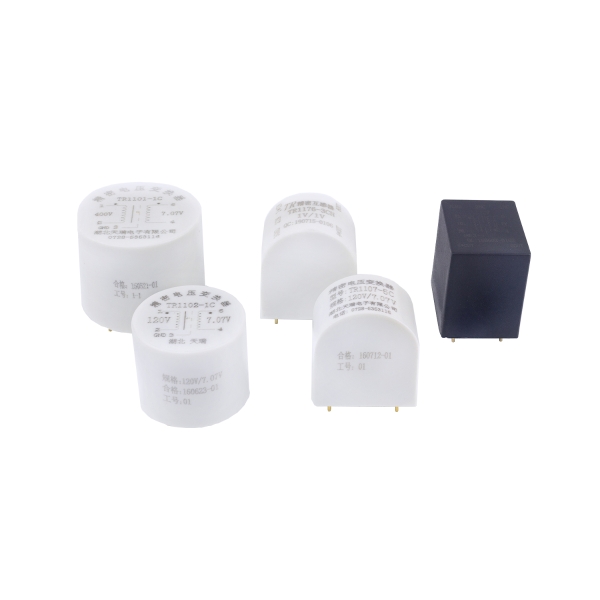

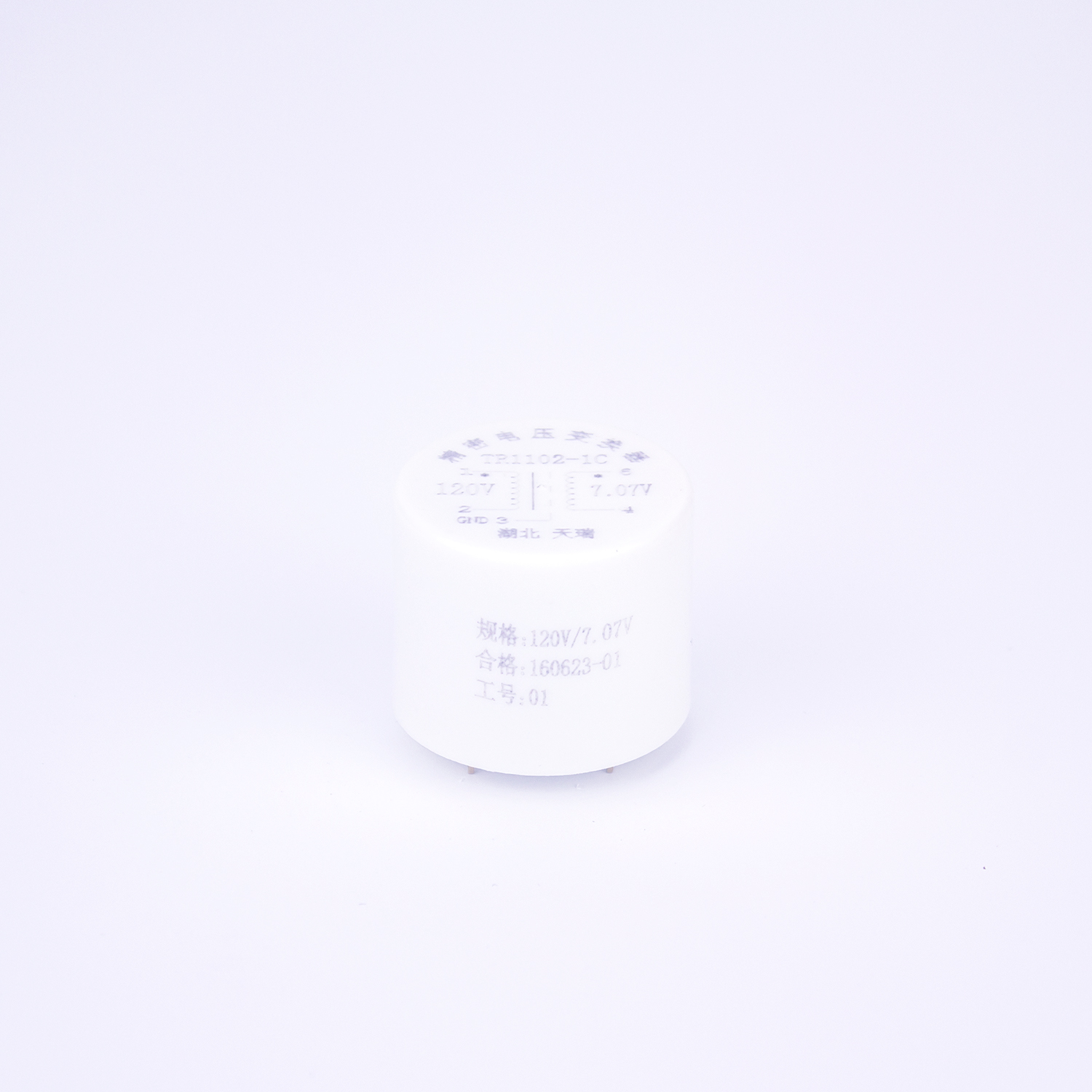

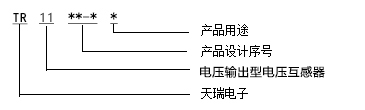

| Physical Pic | Type | Rated input Uin | Rated output Uout | Accuracy class | No load power consumption（VA) | Power frequency withstand voltage（V） | Dimensions（mm） |
|---|---|---|---|---|---|---|---|
 |

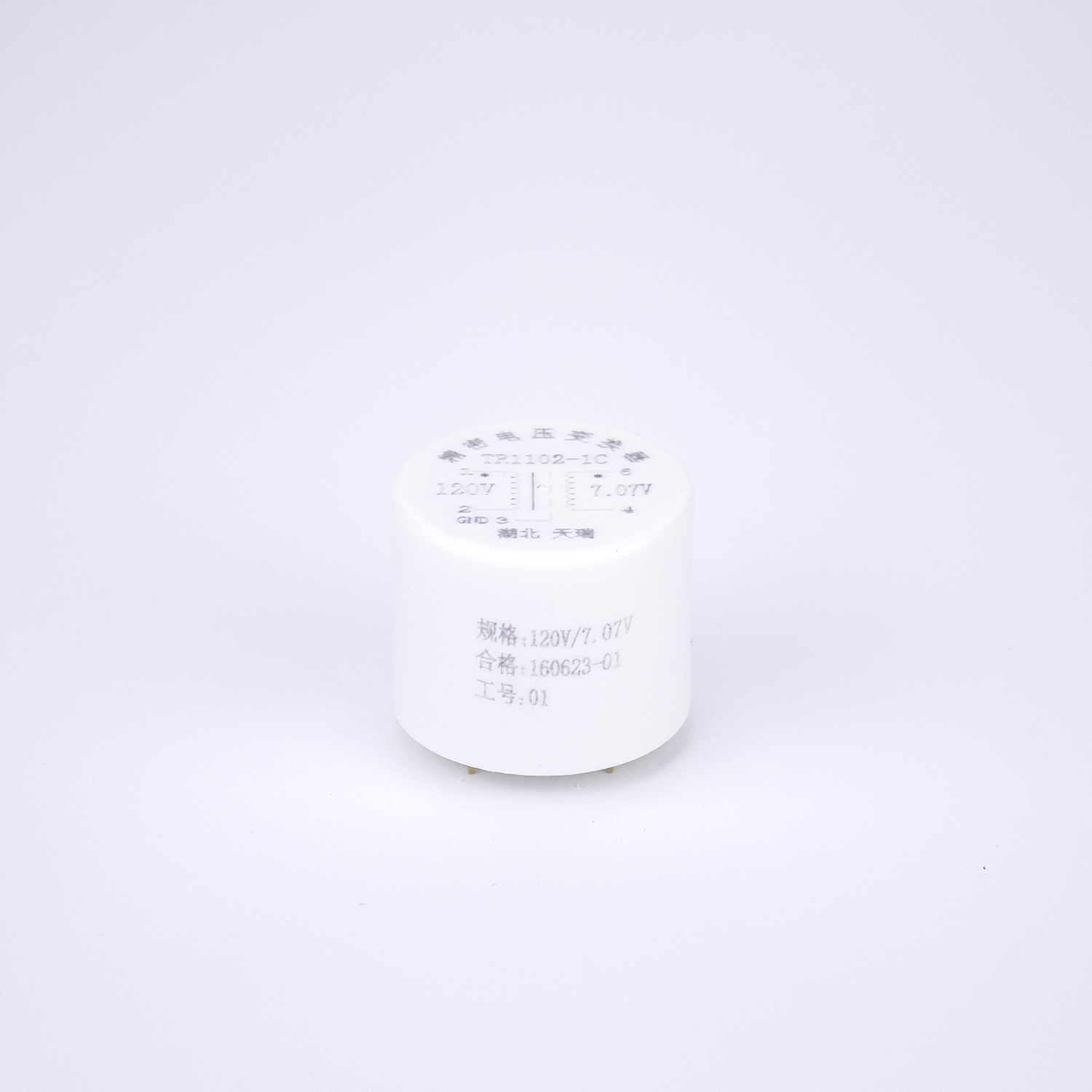

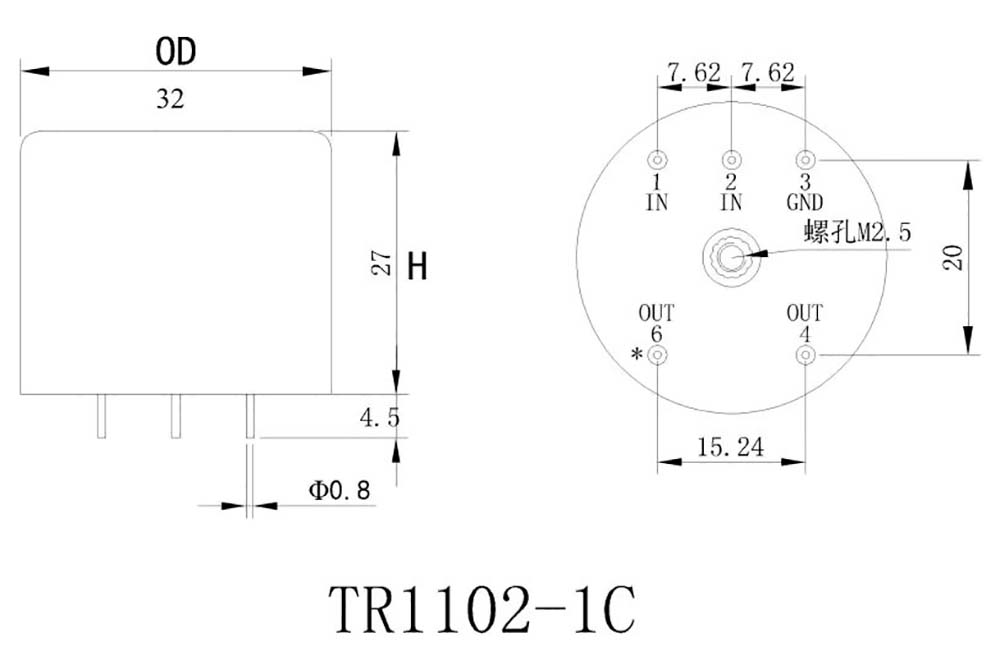

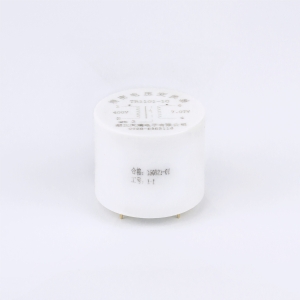

TR1102-1C | 57.5V,100V,120V, 150V,200V,300V, 380V, |
0.353V,2.5V, 1.414V,3.53V, 4V,7.07V |
0.1 | ≤0.5 | ≥3000 |  OD-H 32-27 |
 |

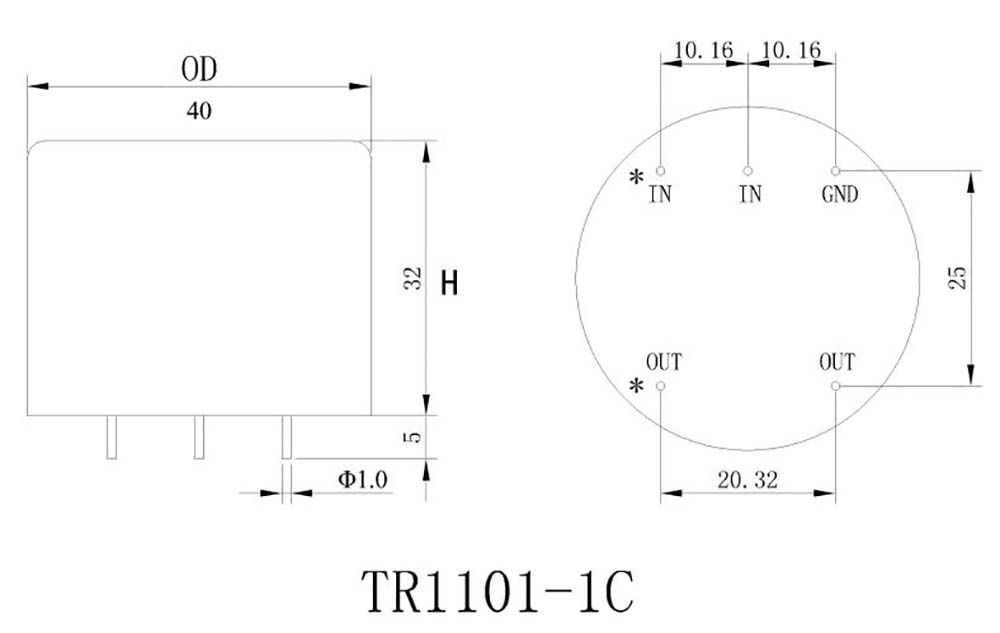

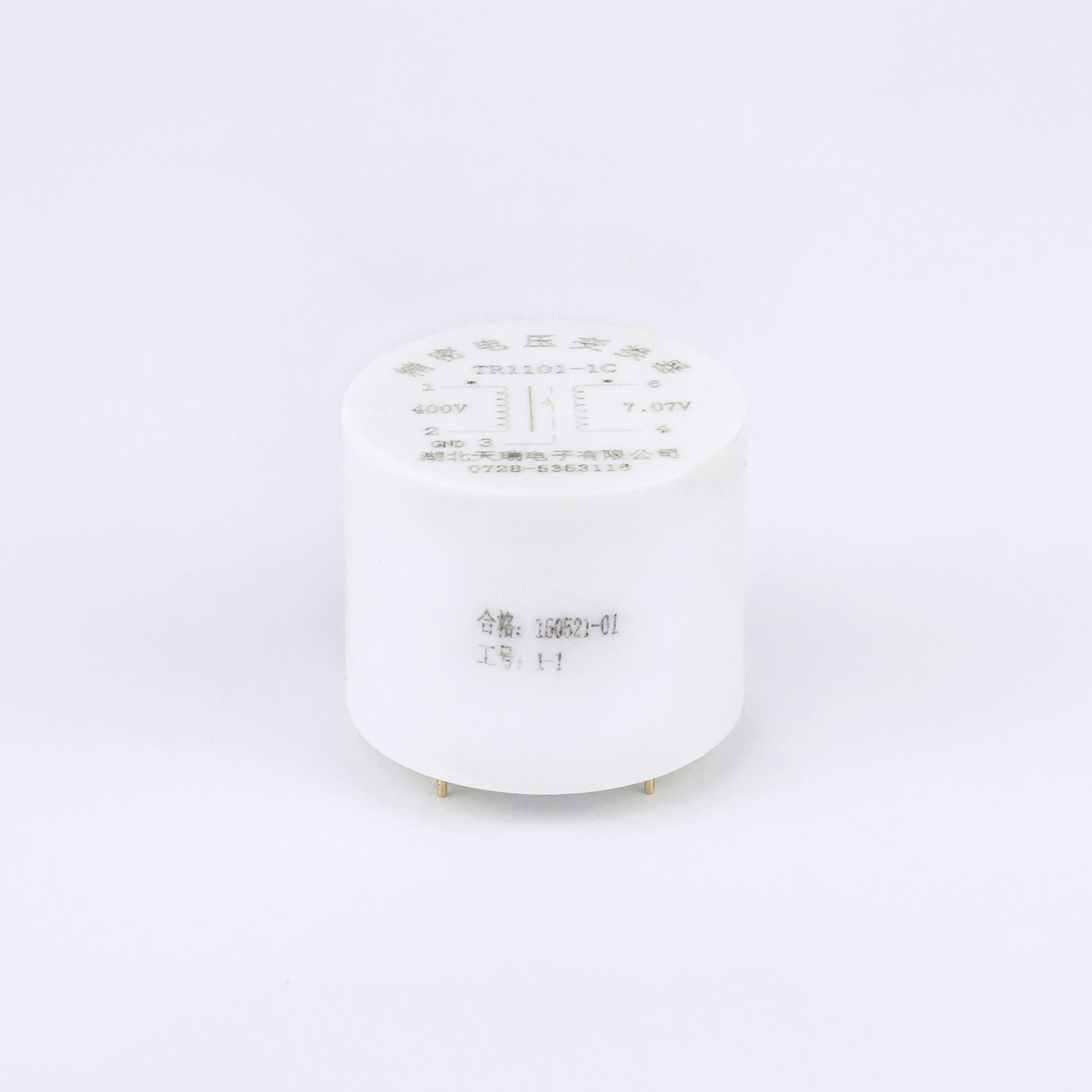

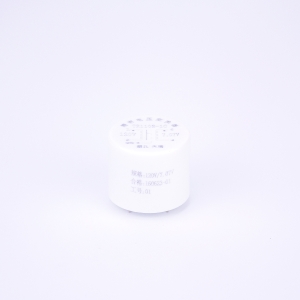

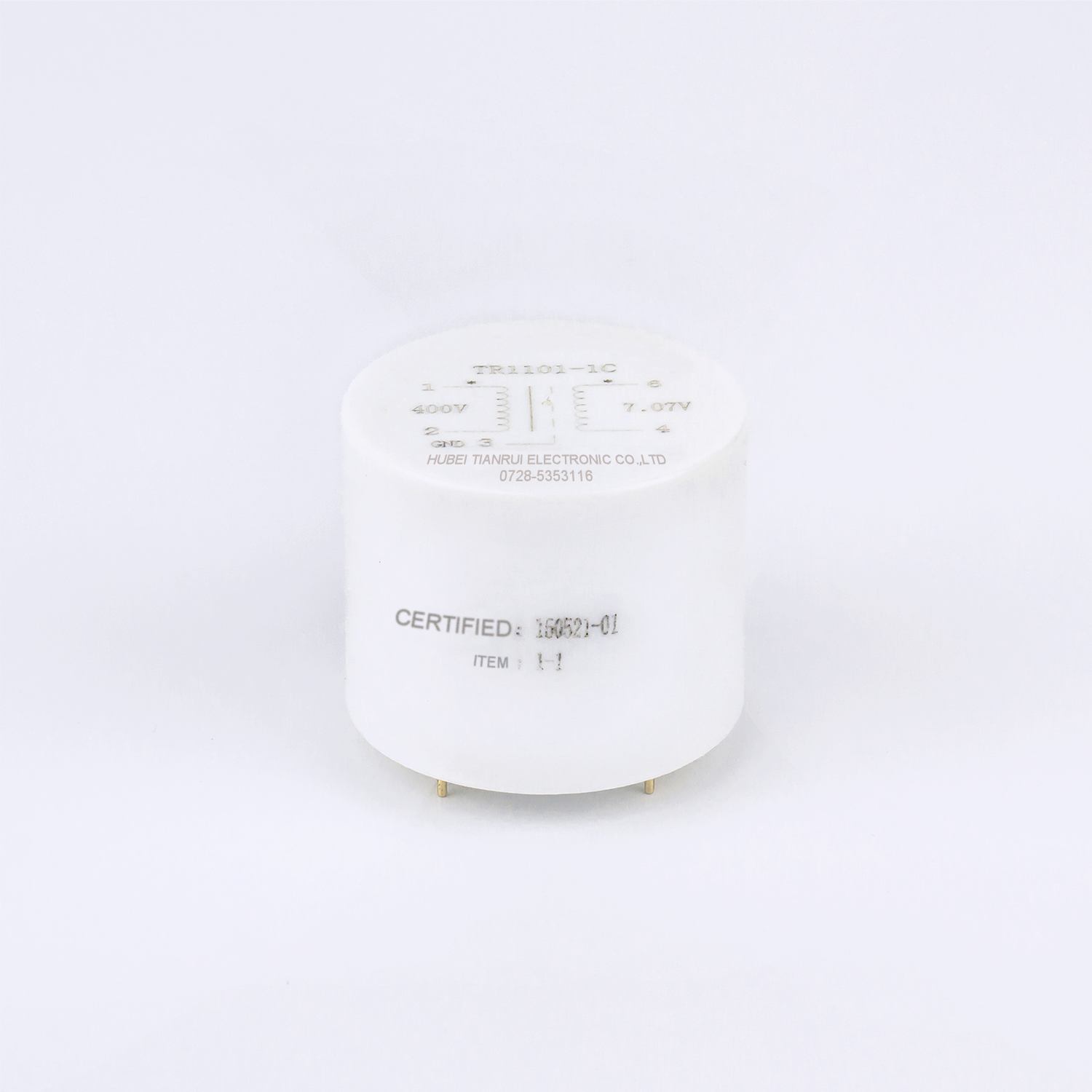

TR1101-1C | 57.5V,100V,200V, 380V，450V |
0.353V,2.5V, 1.414V,3.53V, 4V,7.07V |
0.1 | ≤0.5 | ≥3000 |  OD-H 40-32 |
 |

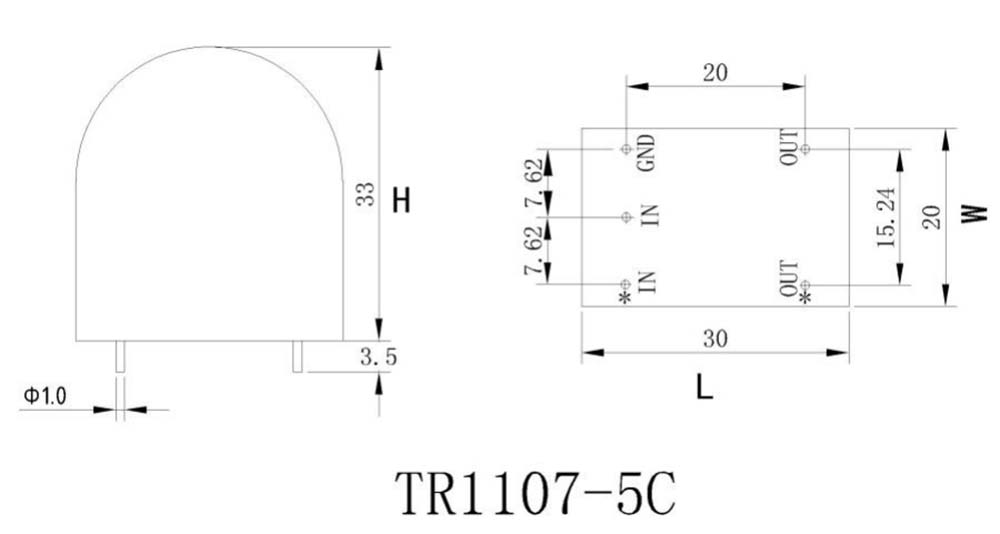

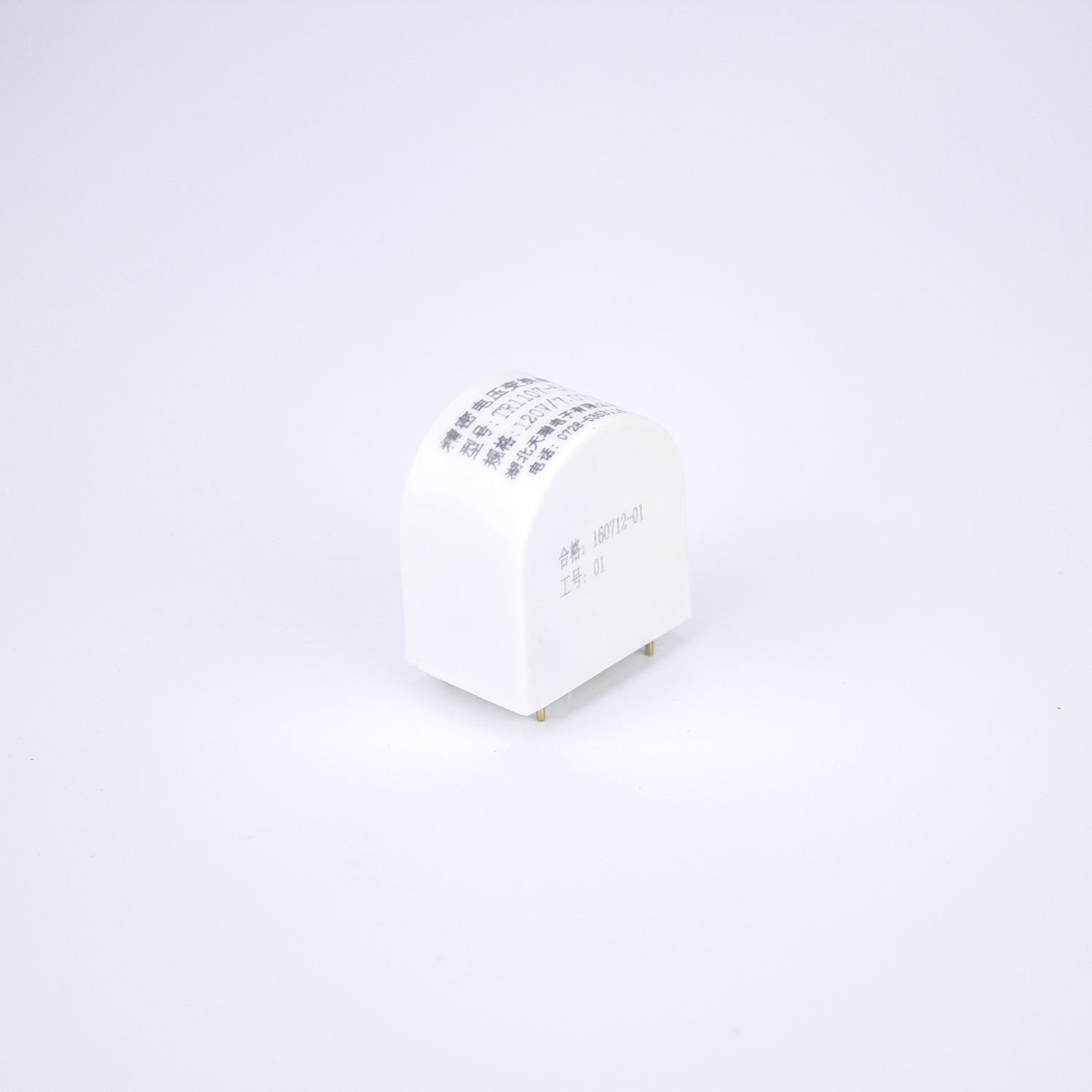

TR1107-5C | 57.5V,100V,120V, 200V |
0.353V,2.5V, 1.414V,3.53V, 4V,7.07V |
0.1 | ≤0.5 | ≥3000 |  L-W-H 30-20-33 |
 |

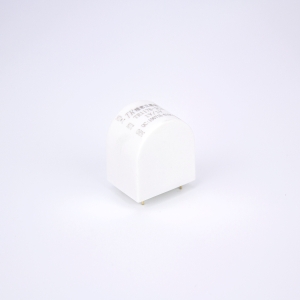

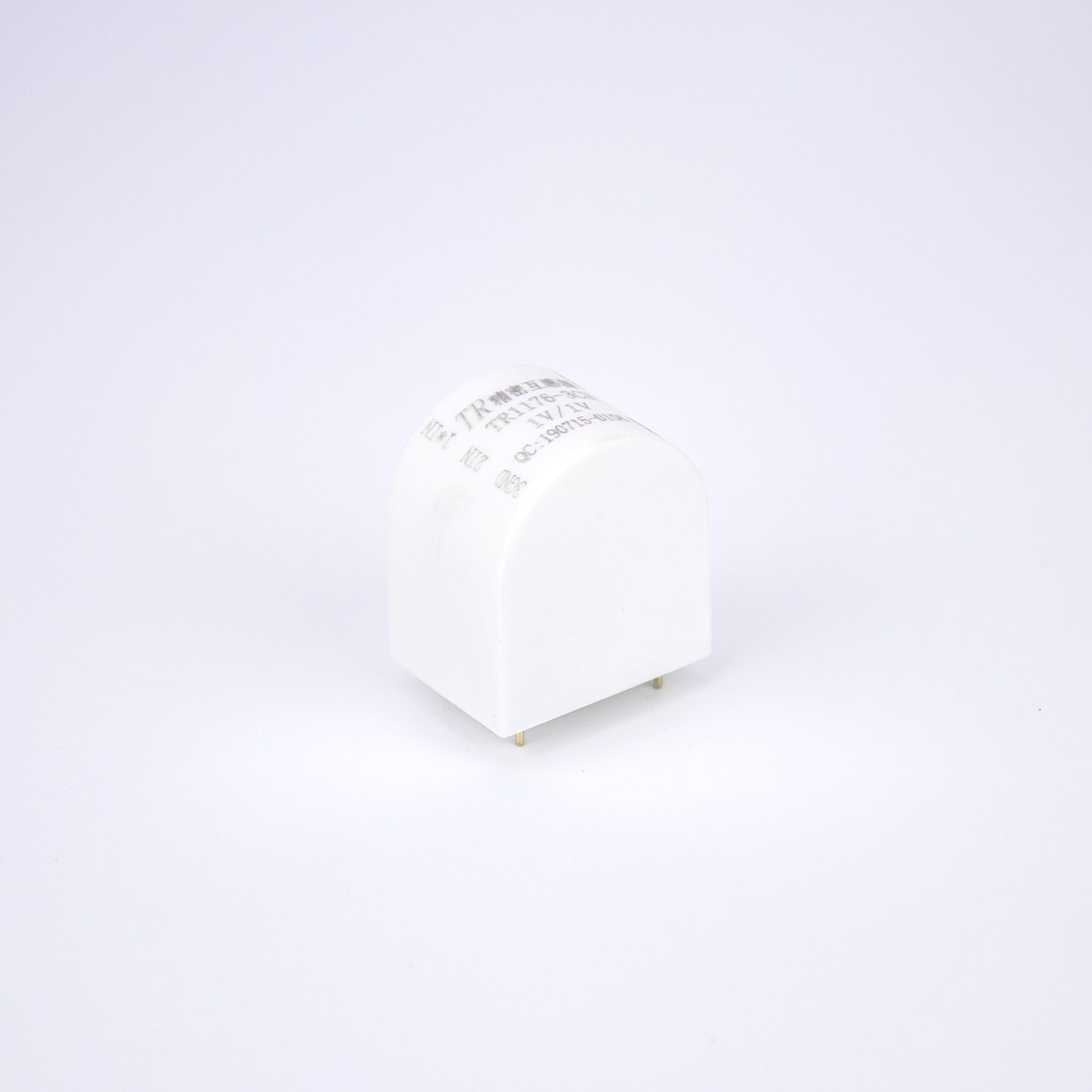

TR1176-3C | 57.5V,100V,120V, 150V,200V,300V, 380V, |
0.353V,2.5V, 1.414V,3.53V, 4V,7.07V |

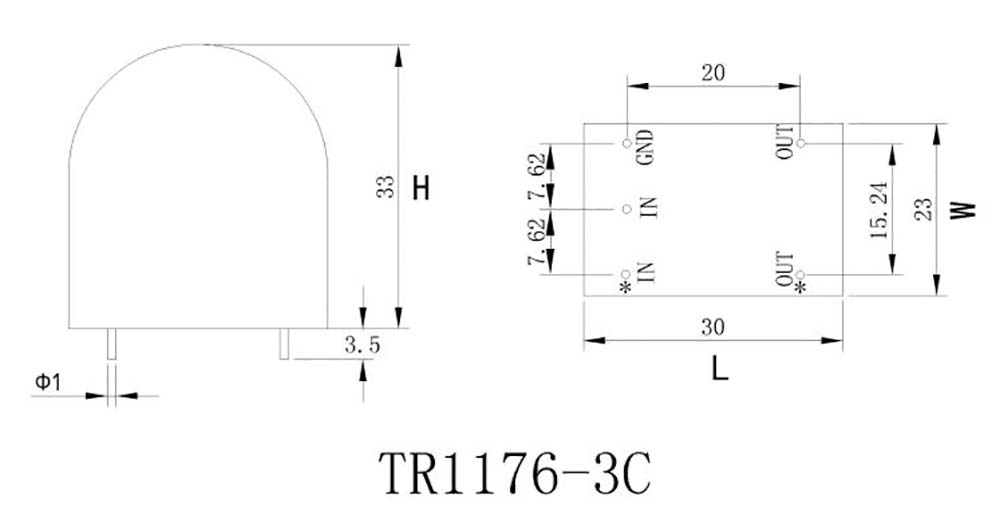

0.1 | ≤0.5 | ≥3000 |  L-W-H 30-23-33 |
 |

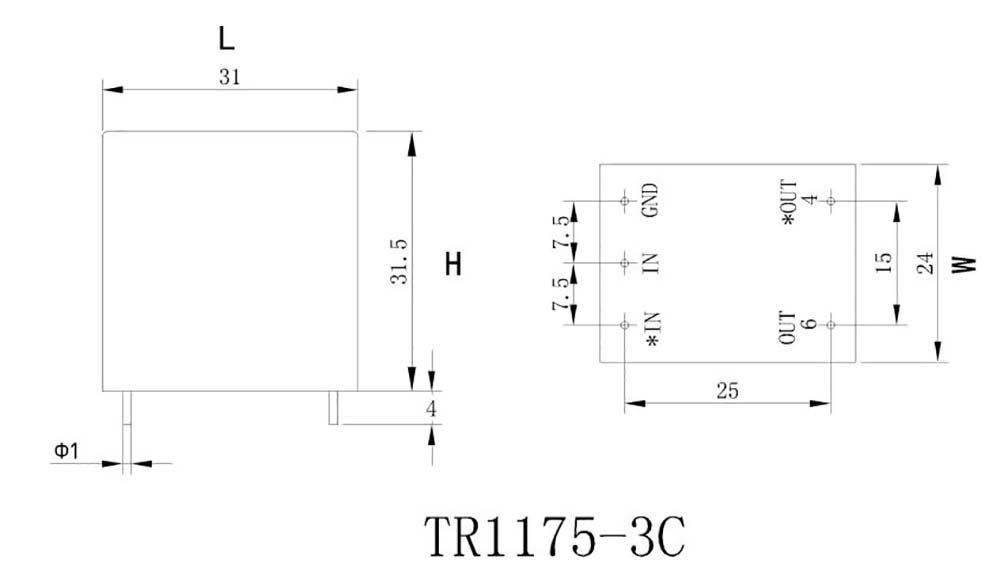

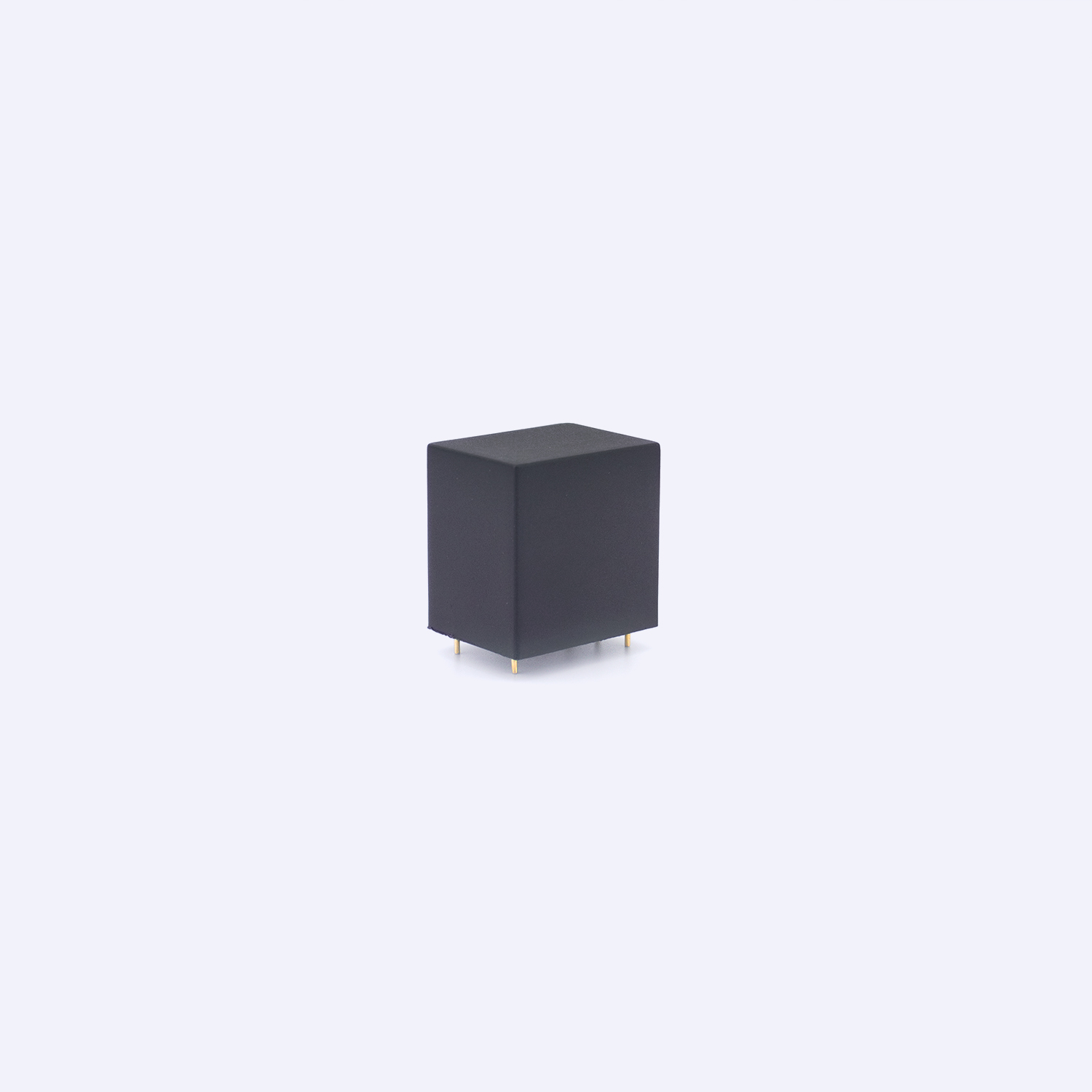

TR1175-3C | 57.5V,100V,120V, 150V,200V,300V, |
0.353V,2.5V, 1.414V,3.53V, 4V,7.07V |
0.1 | ≤0.5 | ≥3000 |  L-W-H 31-24-31.5 |
Remarks：Customization available according to system requirements .
