Built-in capacitive voltage divider voltage transformer, which directly outputs standard small voltage signals, simplifies the system structure, reduces error sources, and improves the stability and accuracy of the entire measurement system;
The built-in current sensor has a wide frequency range, a large measurement range, good linearity, and strong anti-interference ability, which can make the protection device operate reliably under system fault conditions;
No overcurrent will be generated when the voltage output terminal is short-circuited twice, there is no hidden danger of ferromagnetic resonance failure, which has better equipment safety;

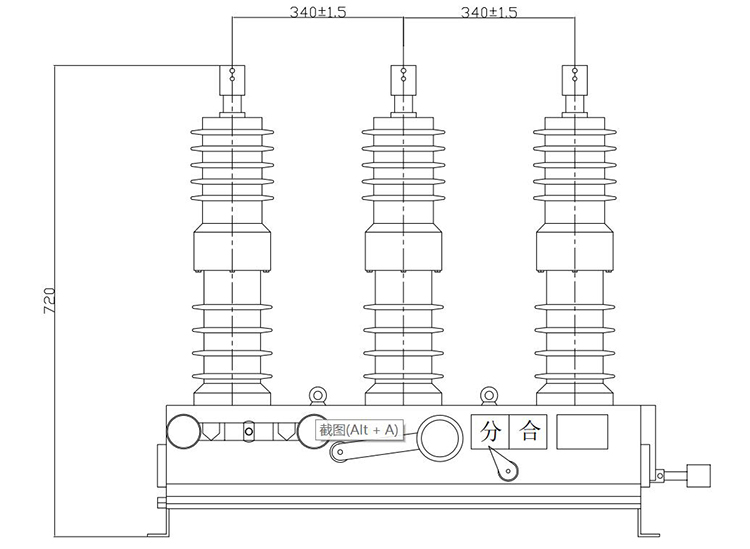

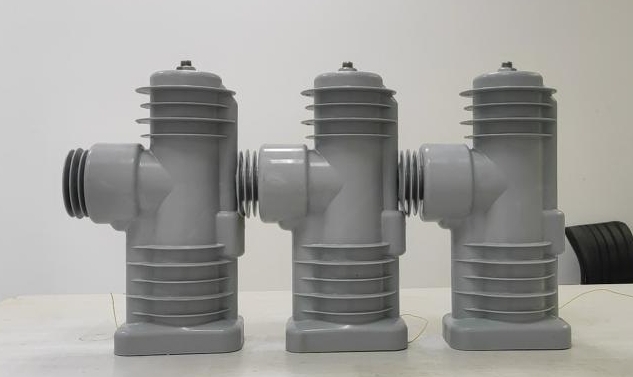

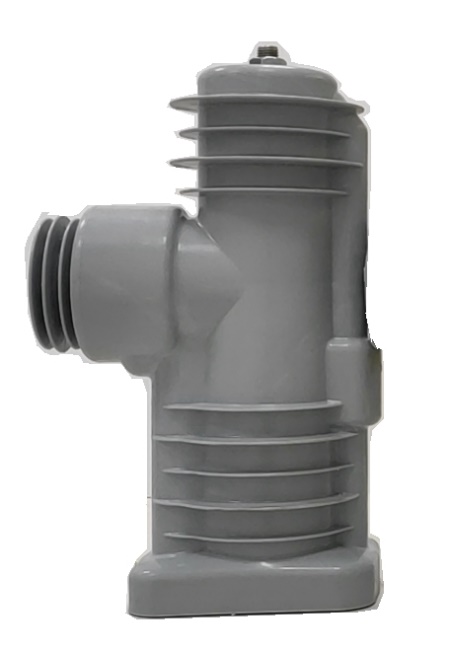

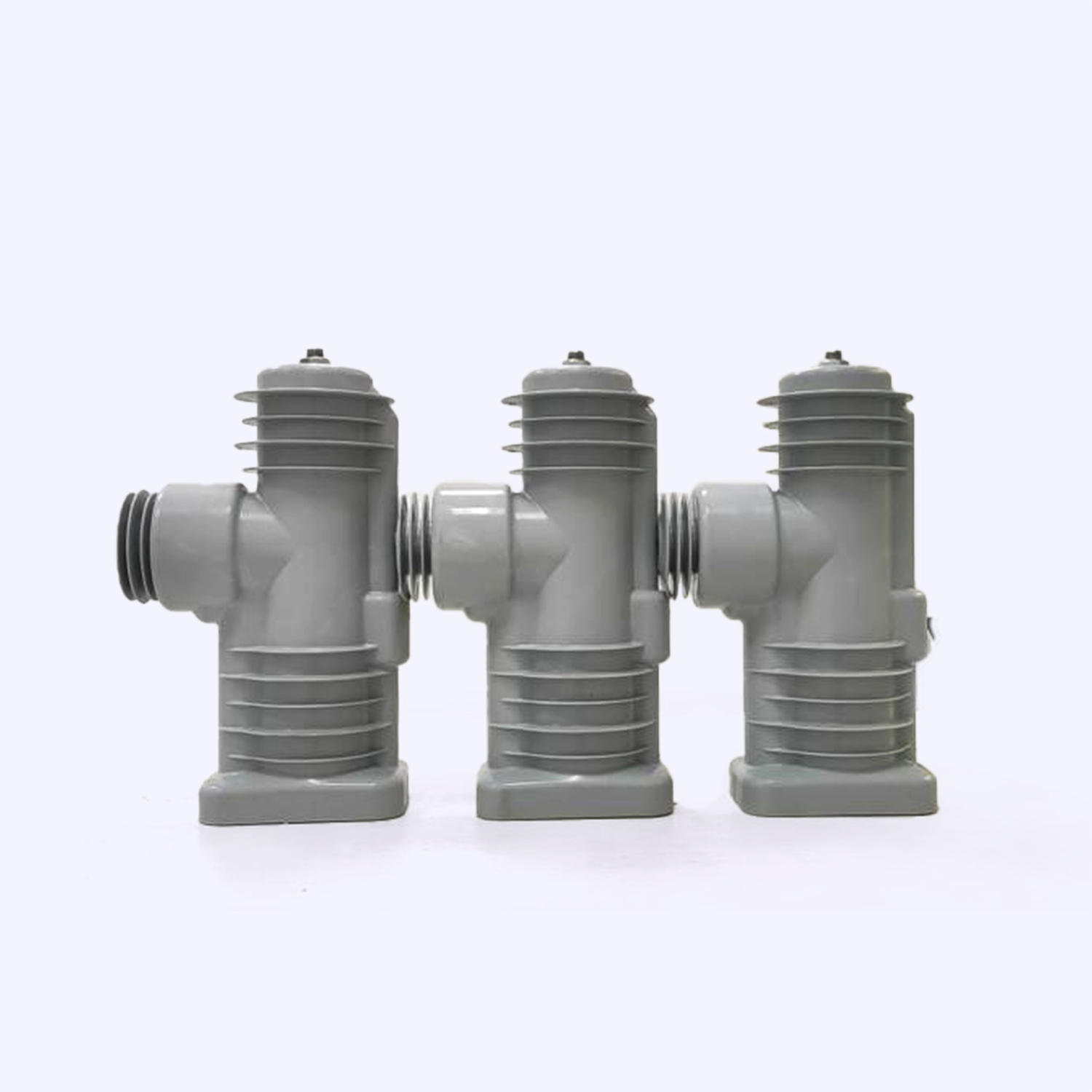

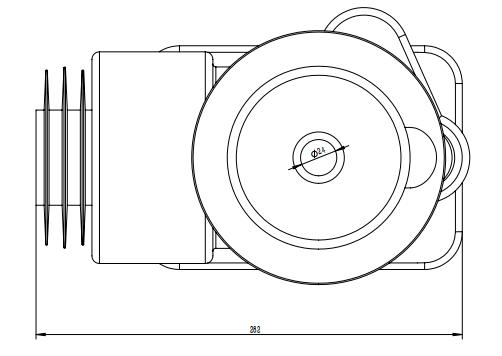

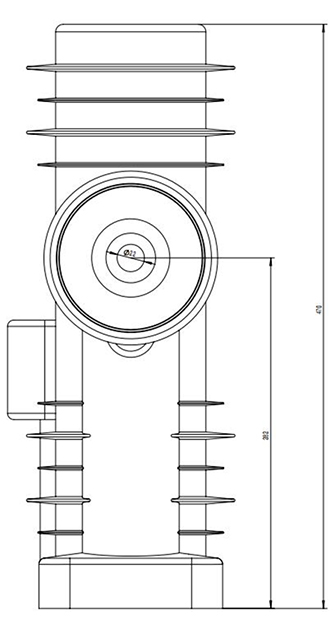

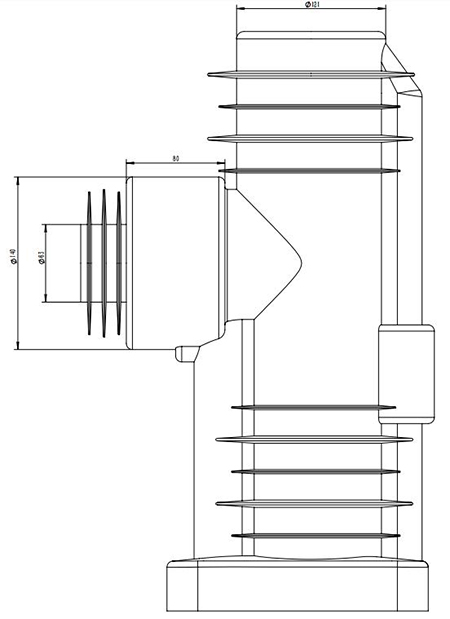

The first and second fusion solid-sealed poles are highly integrated, small in size, light in weight, and low in energy consumption, suitable for highly integrated applications in intelligent distribution networks
Electromagnetic Current Transformer
| TYPE | Parameter Index |
|---|---|
| Rated Primary Current | Phase Current: 600A Zero Sequence Current: 20A |
| Rated Secondary Current | Phase Current: 1V Zero Sequence Current: 0.2V |
| ACCURACY | Phase Current: Level 0.5（5P10） Zero Sequence Current: Level 1（5P10） |
| Rated Load | ≥20kΩ |
| Rated Frequency | 50Hz |
| Insulation Level | 3kV |
| Executive Standard | IEC 60044-8；GB/T20840.8-2007 T/ZDG018-2018 Technical conditions of 10kV and 20kV AC sensors in distribution network |
| Operating Enviroment | -40℃~70℃ |
Zero Sequence Voltage Sensor
| Type | Parameter Index |
|---|---|
| Rated Primary Voltage | 10kV/√3 |
| Rated Secondary Voltage | 6.5V/3 |
| ACCURACY | lavel 3 |
| Rated Load | 2MΩ、5MΩ |
| Rated Frequency | 50Hz |
| Insolation Lavel | 12/42/75kV |
| Partial Discharge | ≤10pC（14.4kV） |
| Executive Standard | IEC 60044-8；GB/T20840.8-2007 T/ZDG018-2018 Technical conditions of 10kV and 20kV AC sensors in distribution network |
| Operating Enviroment | -40℃~70℃ |
