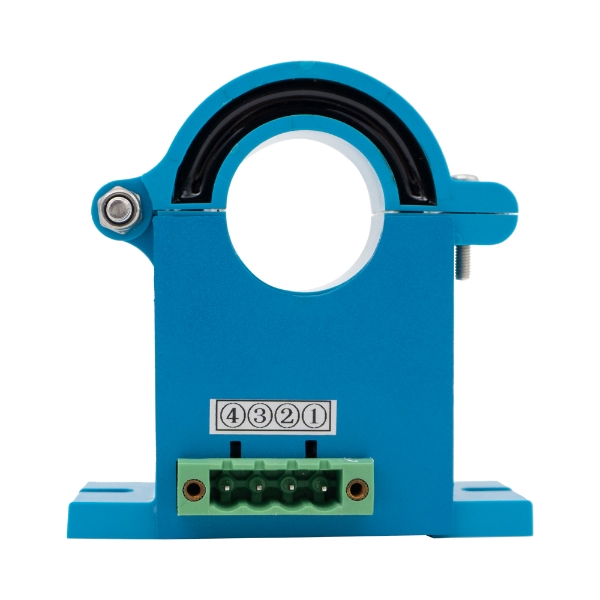

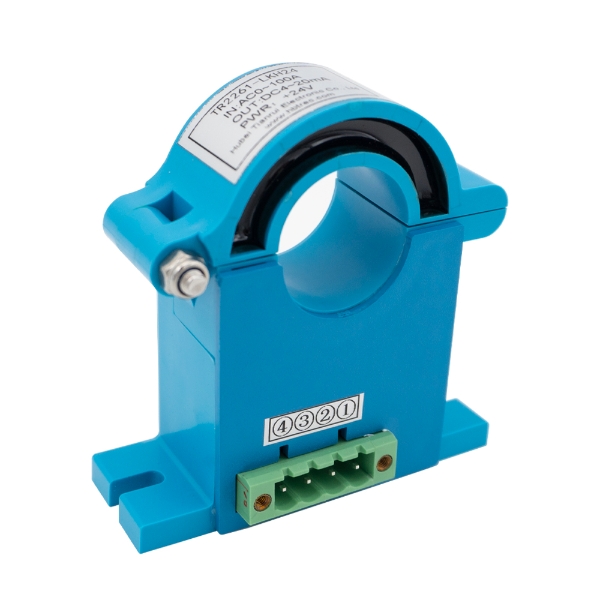

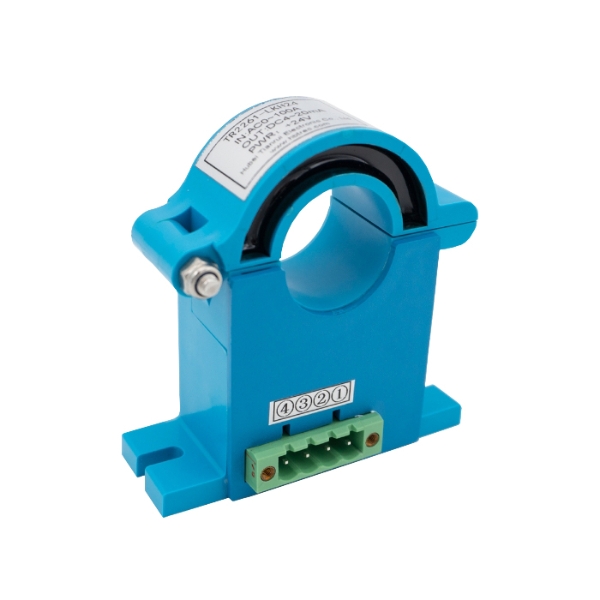

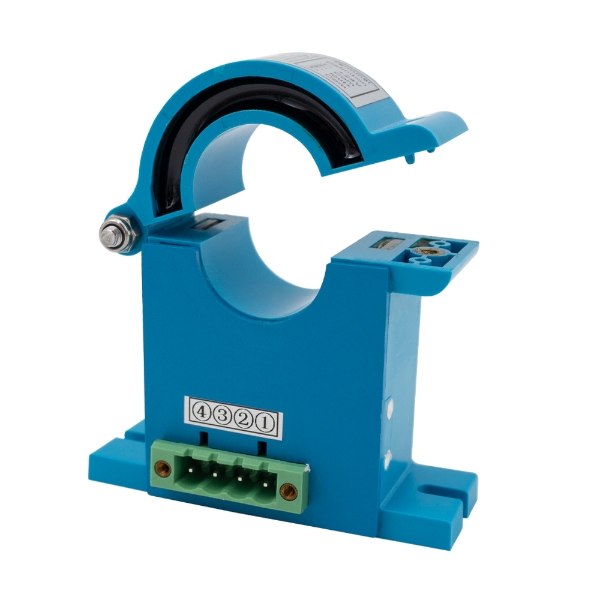

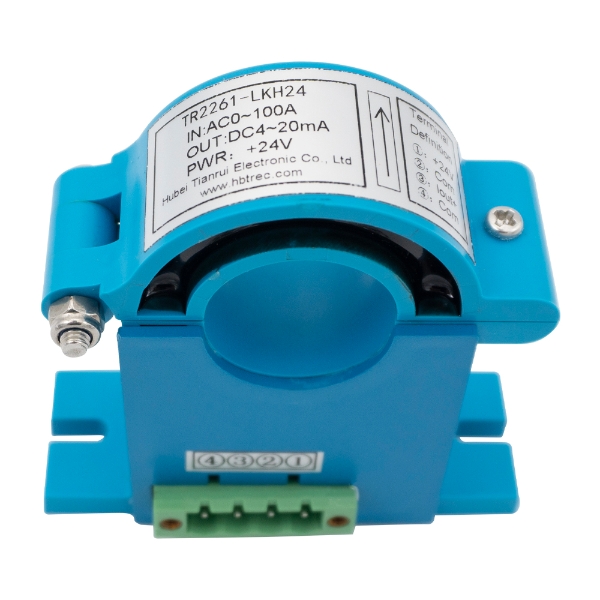

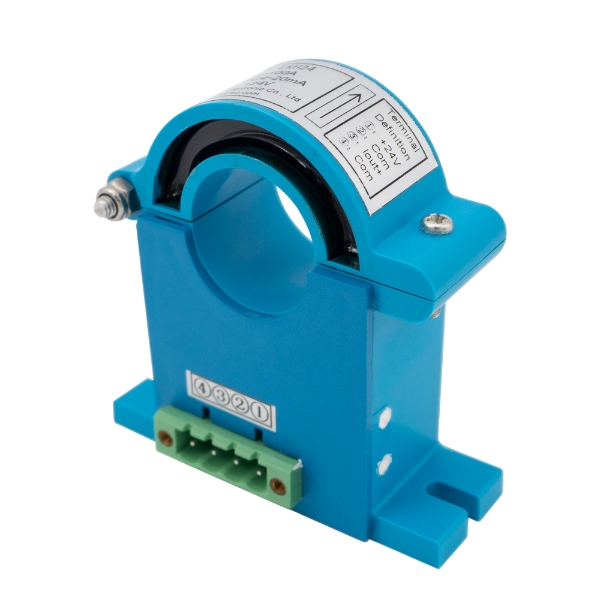

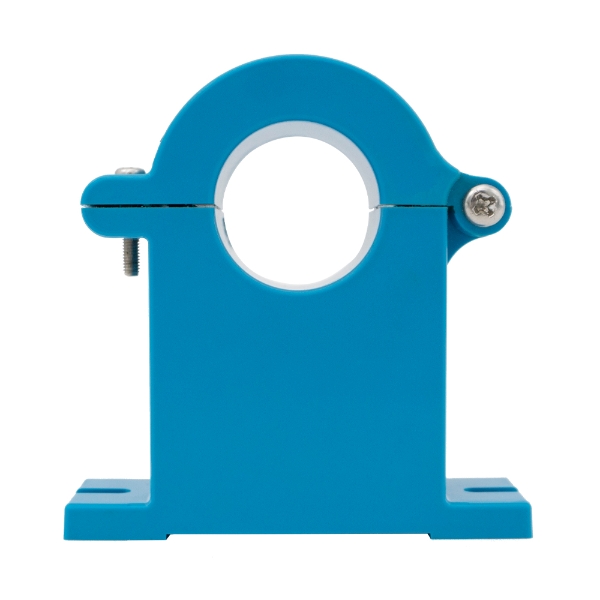

TR2261-LKH24 ‌Open-Loop Hall Effect Current Sensor AC 0~100A/DC 4~20mA
TR2261-LKH24 ‌Open-Loop Hall Effect Current Sensor AC 0~100A/DC 4~20mA TR2261-LKH24 ‌Open-Loop Hall Effect Current Sensor AC 0~100A/DC 4~20mA TR2261-LKH24 ‌Open-Loop Hall Effect Current Sensor AC 0~100A/DC 4~20mA TR2261-LKH24 ‌Open-Loop Hall Effect Current Sensor AC 0~100A/DC 4~20mA TR2261-LKH24 ‌Open-Loop Hall Effect Current Sensor AC 0~100A/DC 4~20mA TR2261-LKH24 ‌Open-Loop Hall Effect Current Sensor AC 0~100A/DC 4~20mA

TR2261-LKH24 ‌Open-Loop Hall Effect Current Sensor AC 0~100A/DC 4~20mA

Open-Loop Hall Effect Current Sensor

  • Product Detail
  • FAQ
  • Qualification certificate
  • Send Inquiry
Product Overview

The Open-Loop Hall Effect Current Sensor operates on the ‌direct-measurement Hall-effect detection principle‌. The magnetic flux generated by the primary current is concentrated through the magnetic circuit and converted into a Hall voltage signal by the Hall device. After amplification by an amplifier, this voltage signal ‌accurately reflects the magnitude of the primary current‌.
Product Features


Wide-range current measurement.

Isolated voltage/current output.

Industrial temperature endurance.

Compact screw-mount design.

Applications


Generator and motor monitoring systems.

Smart low-voltage distribution cabinets.

HVAC and lighting load management.

Industrial power monitoring solutions.

Technical Data


@TA=25℃,unless otherwise stated.

Type TR2261-LKH24 Product Specifications
IPN Primary Rated Input Current AC 100A PDF文档
IP Primary Current Measure Range AC 0~200A
IS Secondary Rated Output Current DC 4~20mA
UC The Power Supply Voltage DC +24V
RL Load Capacity RL ≤300Ω
X Accuracy ±1%
  Zero Output Accuracy ±0.5%
  Overload Capacity 2 times
Ud Power Frequency Withstand Voltage 3kV AC/1min
Tr Response Time <250ms
IC Current Consumption ≤25mA
I0 Offset Current ≤0.5%IS
  Temperature Drift ≤200ppm/℃
TA Ambient Operating Temperature -20℃~+80℃
TS Ambient Storage Temperature -25℃~+85℃

IS：output current.

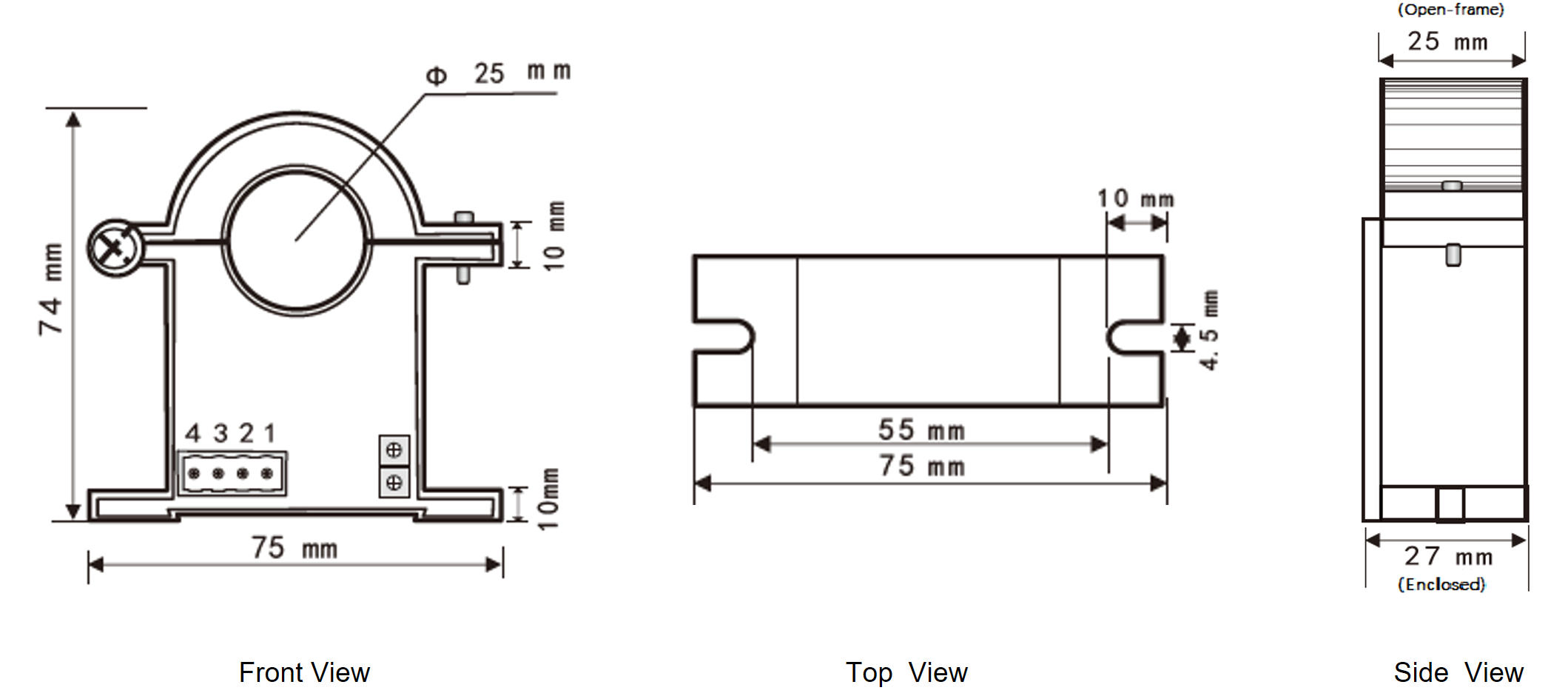

Mechanical Dimension(mm)

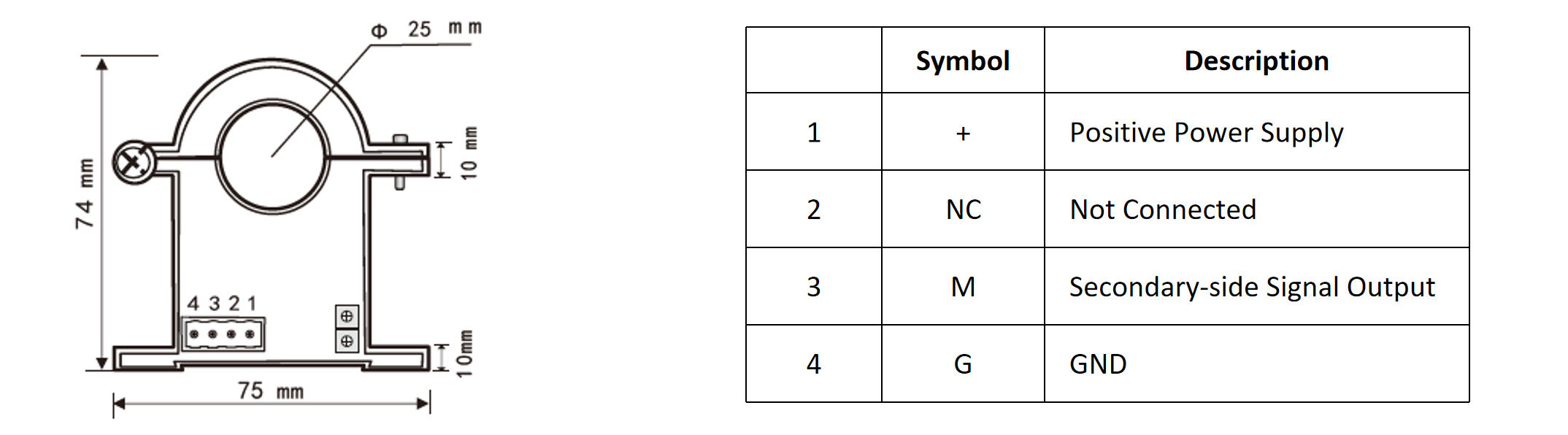

Circuit Connection Diagram
