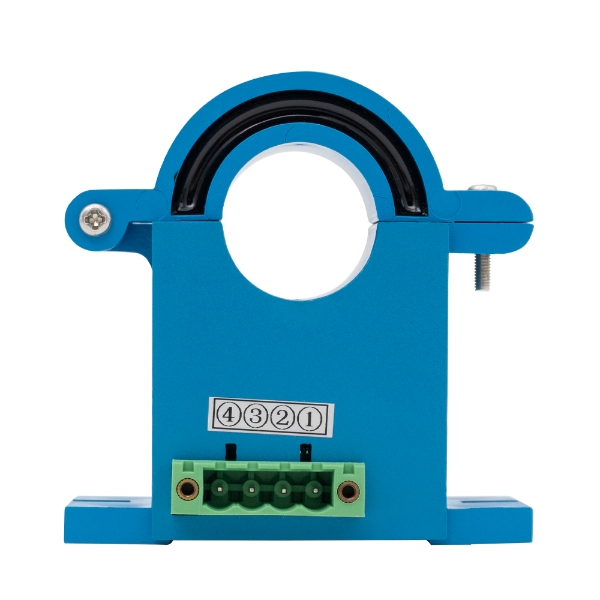

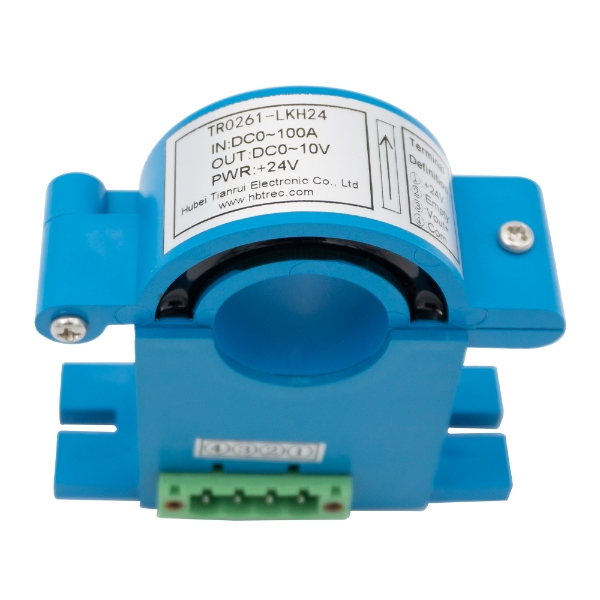

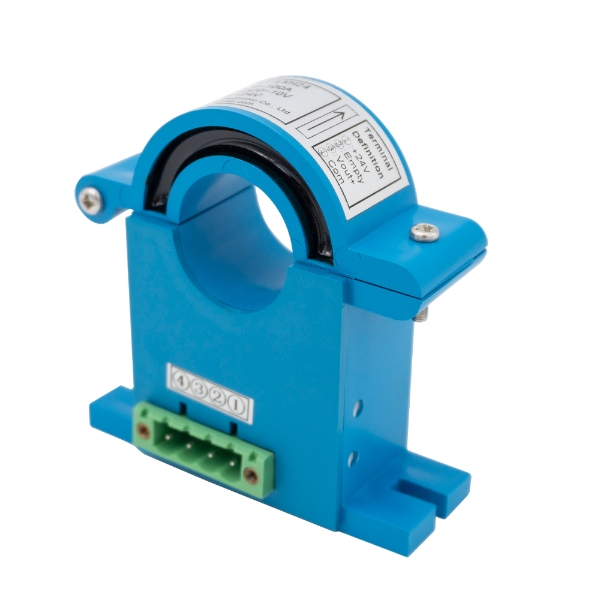

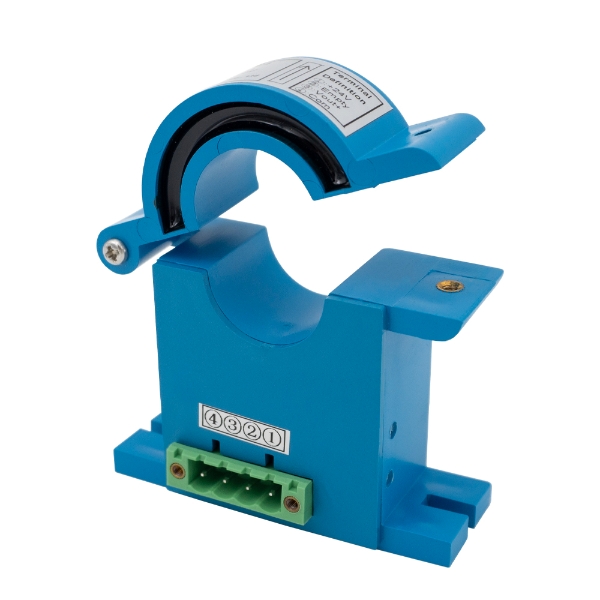

Open-Loop Hall Effect Current Sensor

  • Product Detail
  • FAQ
  • Qualification certificate
  • Send Inquiry
Product Overview

The Open-Loop Hall Effect Current Sensor operates on the ‌direct-measurement Hall-effect detection principle‌. The magnetic flux generated by the primary current is concentrated through the magnetic circuit and converted into a Hall voltage signal by the Hall device. After amplification by an amplifier, this voltage signal ‌accurately reflects the magnitude of the primary current‌.
Product Features


High immunity to interference.

Excellent linearity performance.

Long-term stability guaranteed.

Reliable and accurate measurement.

Applications


Motor starting protection systems.

Electric locomotive applications.

Power supply monitoring.

Industrial drive protection.

Technical Data


@TA=25℃,unless otherwise stated.

Type TR0261-LKH24
IPN Primary Rated Input Current DC 100A
IP Primary Current Measurement Range DC 0~120A
VSN Secondary Rated Output Voltage DC 10V
UC The Power Supply Voltage DC +24V
RL Load Capacity RL ≤300Ω
X Accuracy ±1%
BW Frequency Bandwith 0~1kHz
  Overload Capacity 2 times
Ud Power Frequency Withstand Voltage 3kV AC/1min
Tr Response Time < 250ms
V0 Offset Voltage ≤ 20mV
  Temperature Drift ≤200ppm/℃
TA Ambient Operating Temperature -20℃~+80℃
TS Ambient Storage Temperature -25℃~+85℃

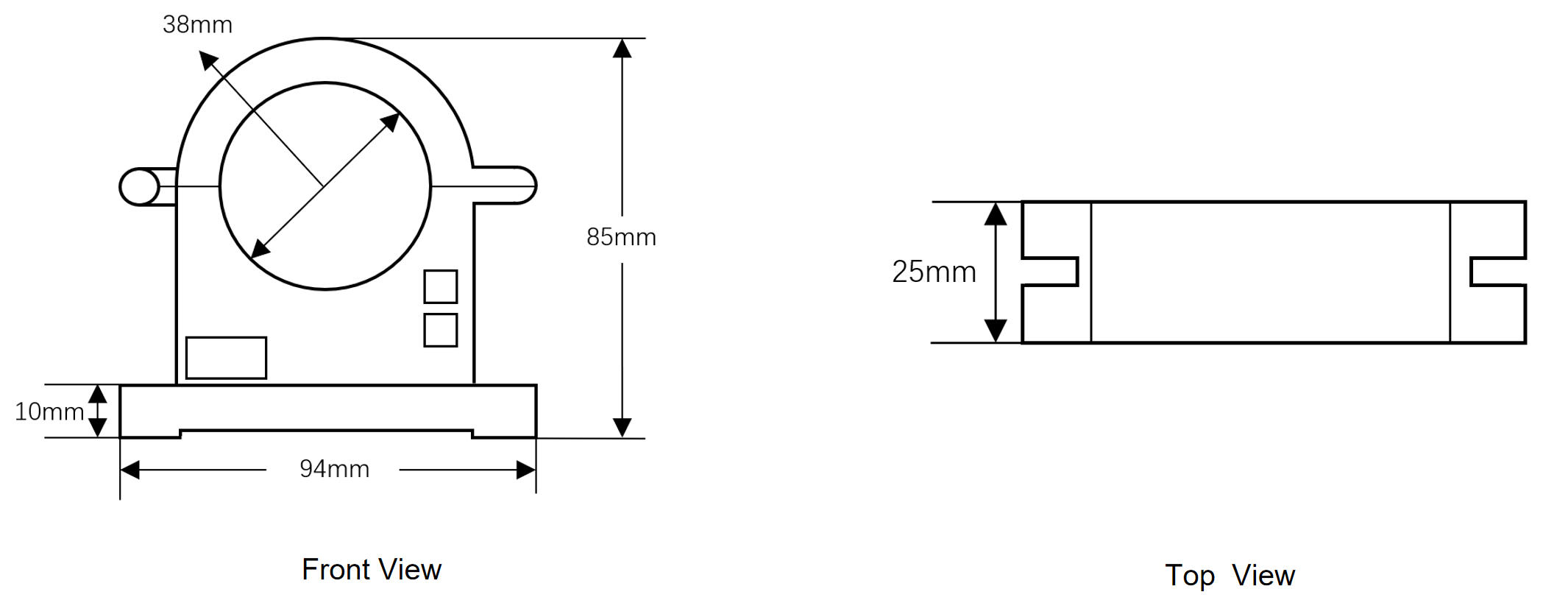

Mechanical Dimension(mm)

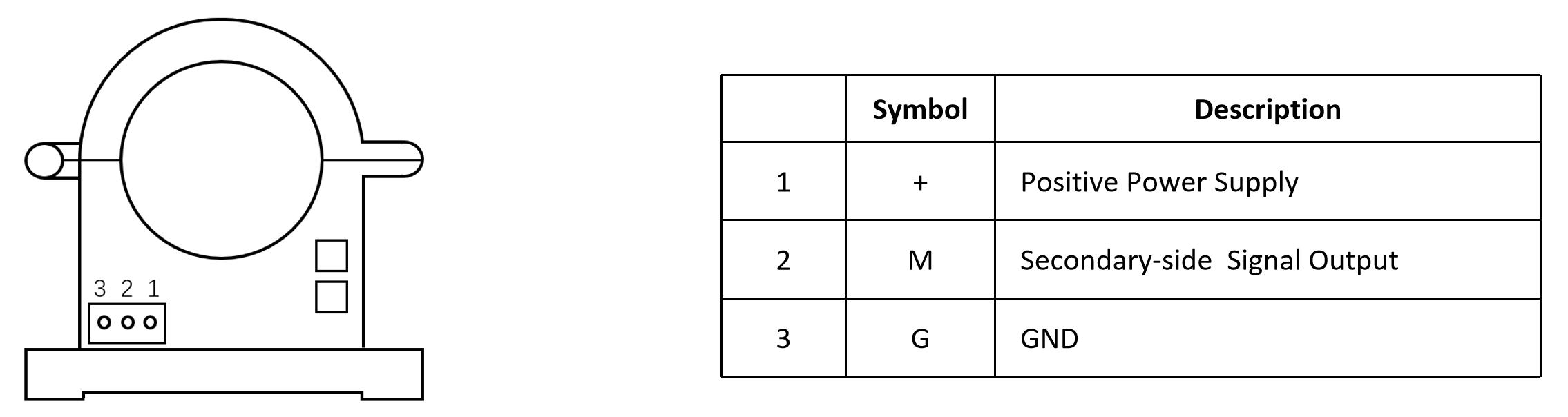

Circuit Connection Diagram
