High-performance DC current sensing.
Cost-effective and energy-efficient design.
Compact and easy-to-install solution.
Reliable isolation and fast response.
Power grid monitoring and maintenance.
Petrochemical process control systems.
Steel production line current detection.
Industrial equipment energy efficiency analysis.
@TA=25℃,unless otherwise stated.

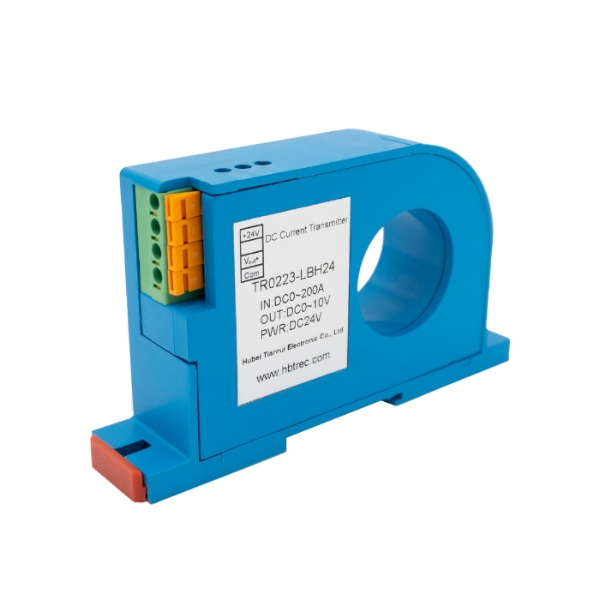

| Type | TR0223-LBH24 | Product Specifications | |||
|---|---|---|---|---|---|
| IPN | Primary Rated Input Current | DC 200A |  |
||
| IP | Primary Current Measurement Range | DC 0~240A | |||
| VSN | Secondary Rated Output Voltage | DC 10V | |||
| UC | The Power Supply Voltage | DC 24V | |||
| RL | Load Capacity | RL≥ 10kΩ | |||
| εL | Linearity | 0.1% | |||
| X | Accuracy | ±0.5% | |||
| BW | Frequency Bandwith | DC~20kHz | |||
| di/dt Accurately Followed | >50A/μs | ||||
| IC | Current Consumption | ≤25mA | |||
| Ud | Power Frequency Withstand Voltage | 2.5kV AC/1min | |||
| Tr | Response Time | <200ms | |||
| V0 | Offset Voltage | ≤50mV | |||
| Temperature Drift | ≤500ppm/℃ | ||||
| TA | Ambient Operating Temperature | -10℃~+70℃ | |||
| TS | Ambient Storage Temperature | -25℃~+85℃ | |||
