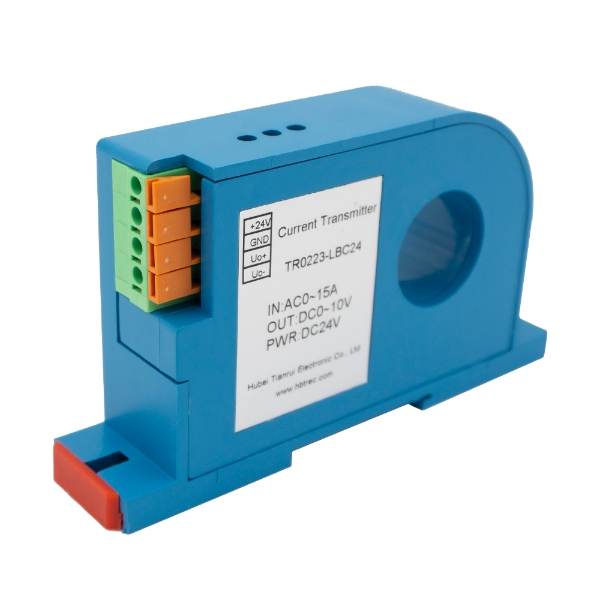

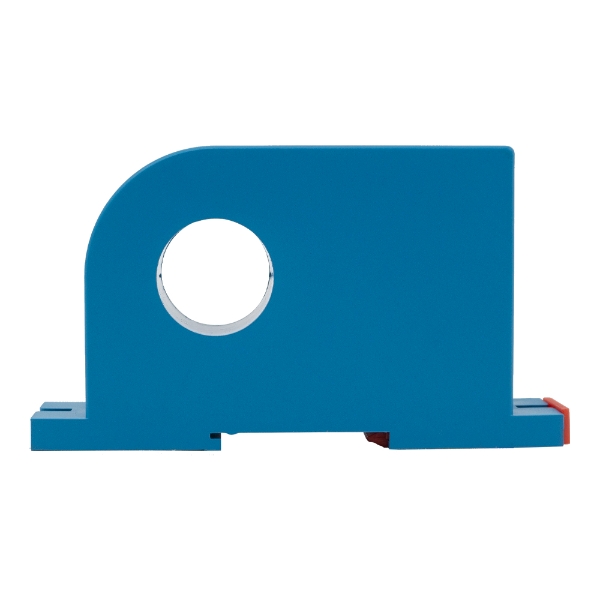

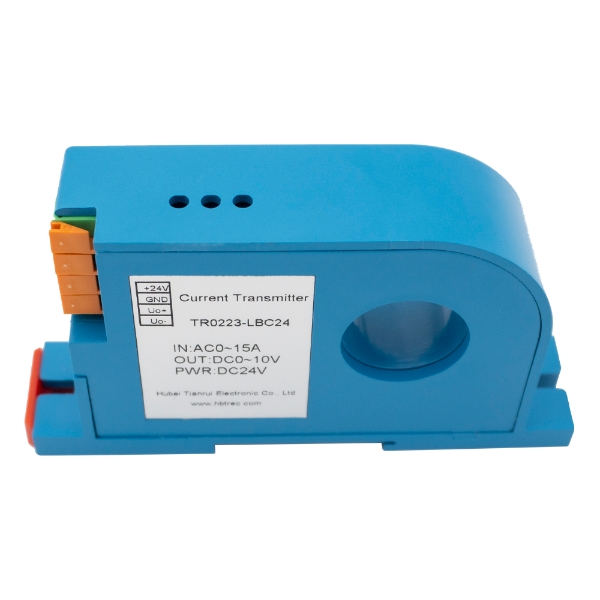

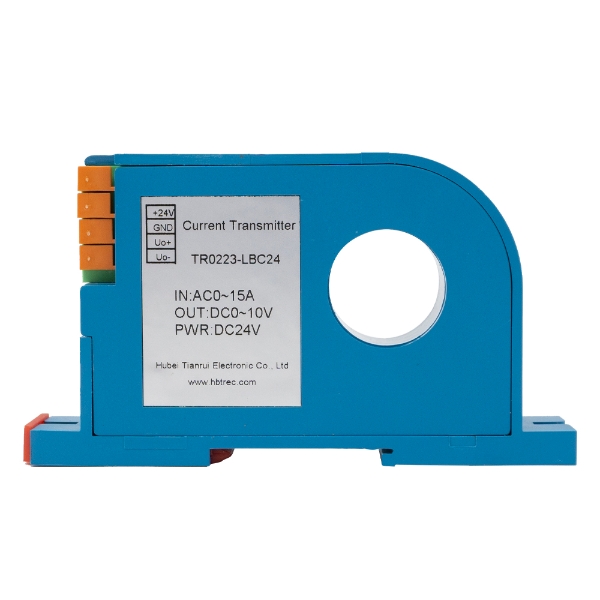

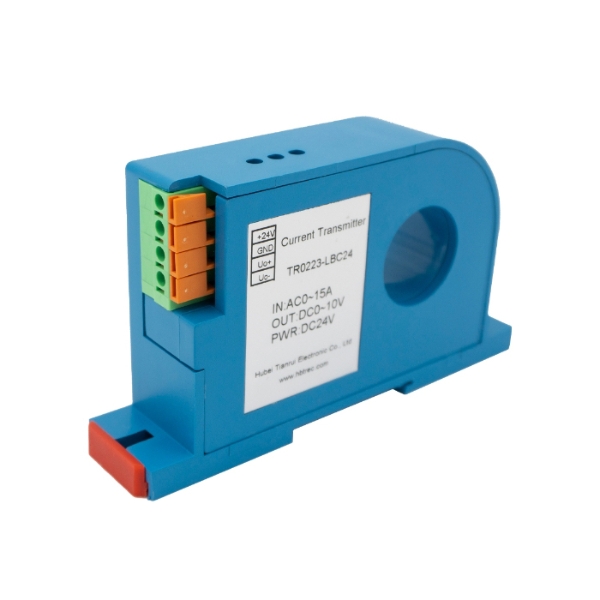

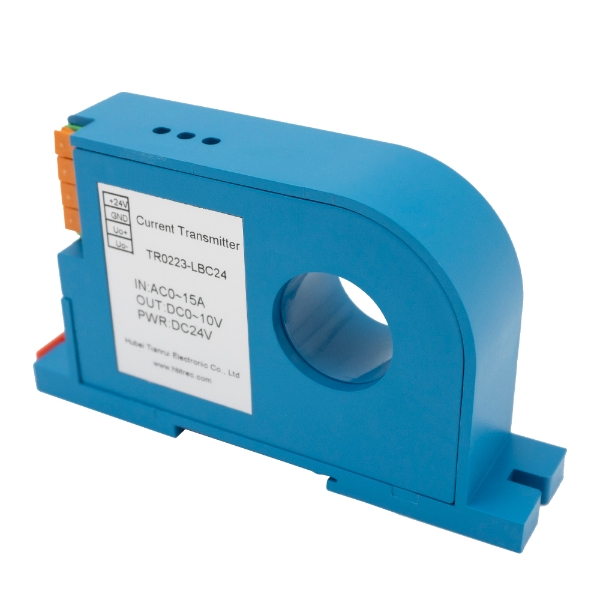

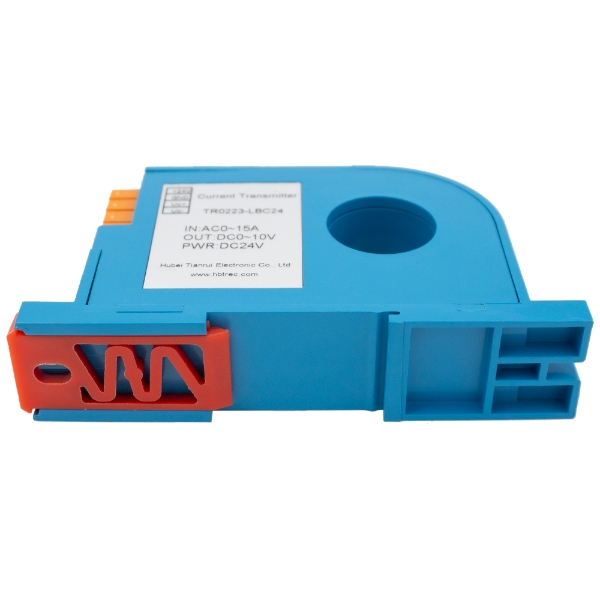

TR0223-LBC24 AC/DC Current Transmitter AC 0~15A/DC 0~10V
TR0223-LBC24 AC/DC Current Transmitter AC 0~15A/DC 0~10V TR0223-LBC24 AC/DC Current Transmitter AC 0~15A/DC 0~10V TR0223-LBC24 AC/DC Current Transmitter AC 0~15A/DC 0~10V TR0223-LBC24 AC/DC Current Transmitter AC 0~15A/DC 0~10V TR0223-LBC24 AC/DC Current Transmitter AC 0~15A/DC 0~10V TR0223-LBC24 AC/DC Current Transmitter AC 0~15A/DC 0~10V

TR0223-LBC24 AC/DC Current Transmitter AC 0~15A/DC 0~10V

AC/DC Current Transmitter

  • Product Detail
  • FAQ
  • Qualification certificate
  • Send Inquiry
Product Overview

This transmitter performs ‌isolated measurement and conversion‌ of field parameters such as ‌high-voltage/high-current, power, frequency, phase angle, and electroplating levels‌. Its output signals can ‌connect directly‌ to traditional ‌analog pointer instruments‌, as well as modern ‌digital automation instruments‌, various ‌A/D converters‌, and ‌computer systems‌. This enables the establishment of a ‌highly reliable industrial monitoring and control system‌.
Product Features


Excellent accuracy, good linearity.

High immunity to interference, excellent CMRR.

Low drift, low power, wide bandwidth.

Perforated structure, no insertion loss.

Applications


Automatic Control.

Measuring Meter.

Railway Monitoring System.

Station Control System.

Technical Data


@TA=25℃,unless otherwise stated.

Type TR0223-LBC24 Product Specifications
IPN Primary Rated Input Current AC 15A PDF文档
IP Primary Current Measurement Range AC 0~18A
VSN Secondary Rated Output Voltage DC 10V
UC The Power Supply Voltage DC 24V
RL Load Capacity RL ≤ 500Ω
εL Linearity 0.1%
X Accuracy ±0.5%
BW Frequency Bandwith 40 ~ 5kHz
  Overload Capacity 10 times
IC Current Consumption <15mA+IS
Ud Power Frequency Withstand Voltage 2.5kV AC/1min
Tr Response Time <200ms
I0 Offset Current ≤80μA
  Temperature Drift ≤500ppm/℃
TA Ambient Operating Temperature -10℃~+70℃
TS Ambient Storage Temperature -25℃~+85℃

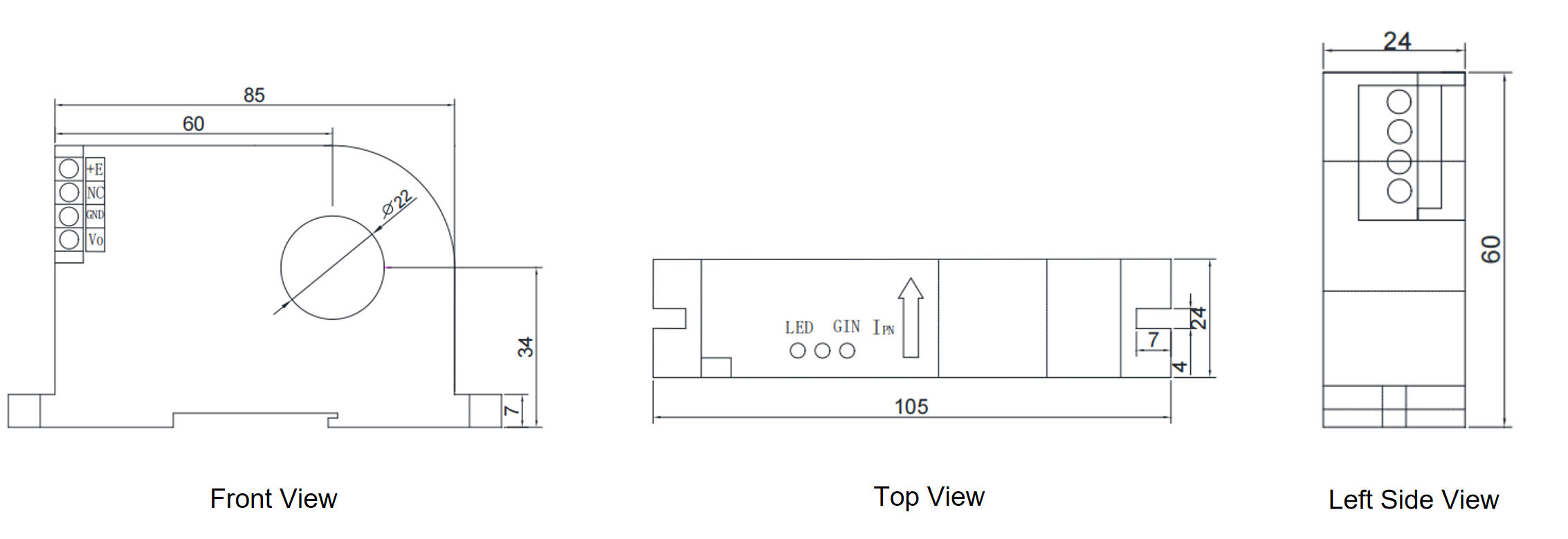

Mechanical Dimension(mm)

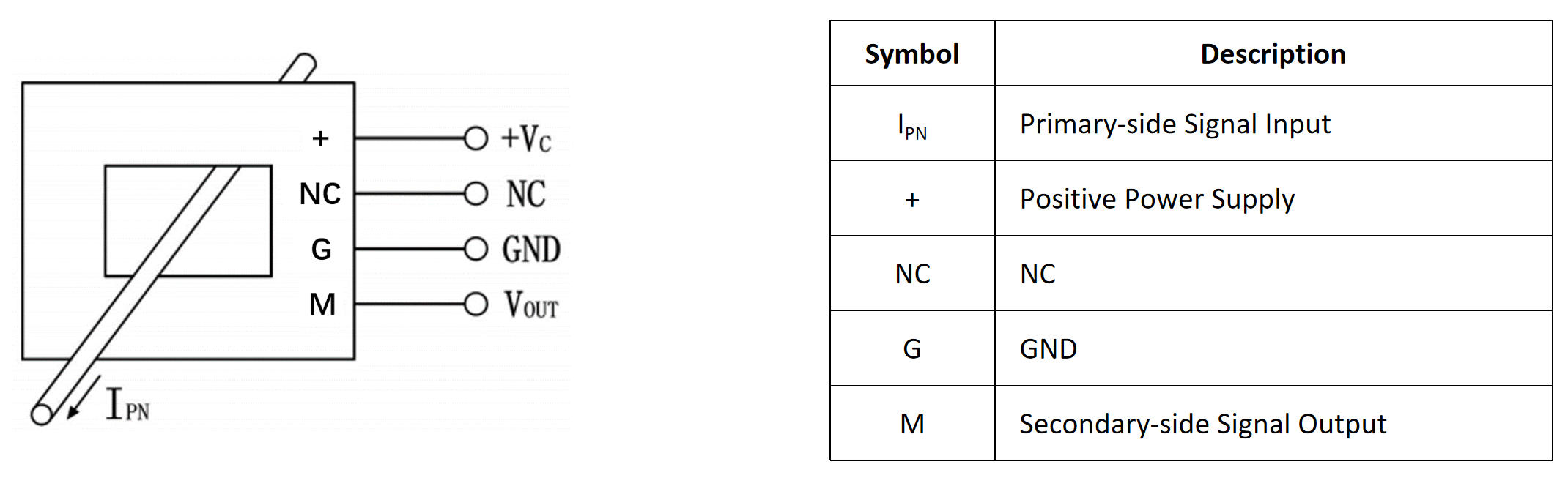

Circuit Connection Diagram
