The circuit is simple ,no external power supply is required and the operation is reliable .
Good transient characteristics, real waveform, 100% DC component waveform can be superimposed without distortion .
Various installation methods, optional PCB installation and bolt fixing methods.

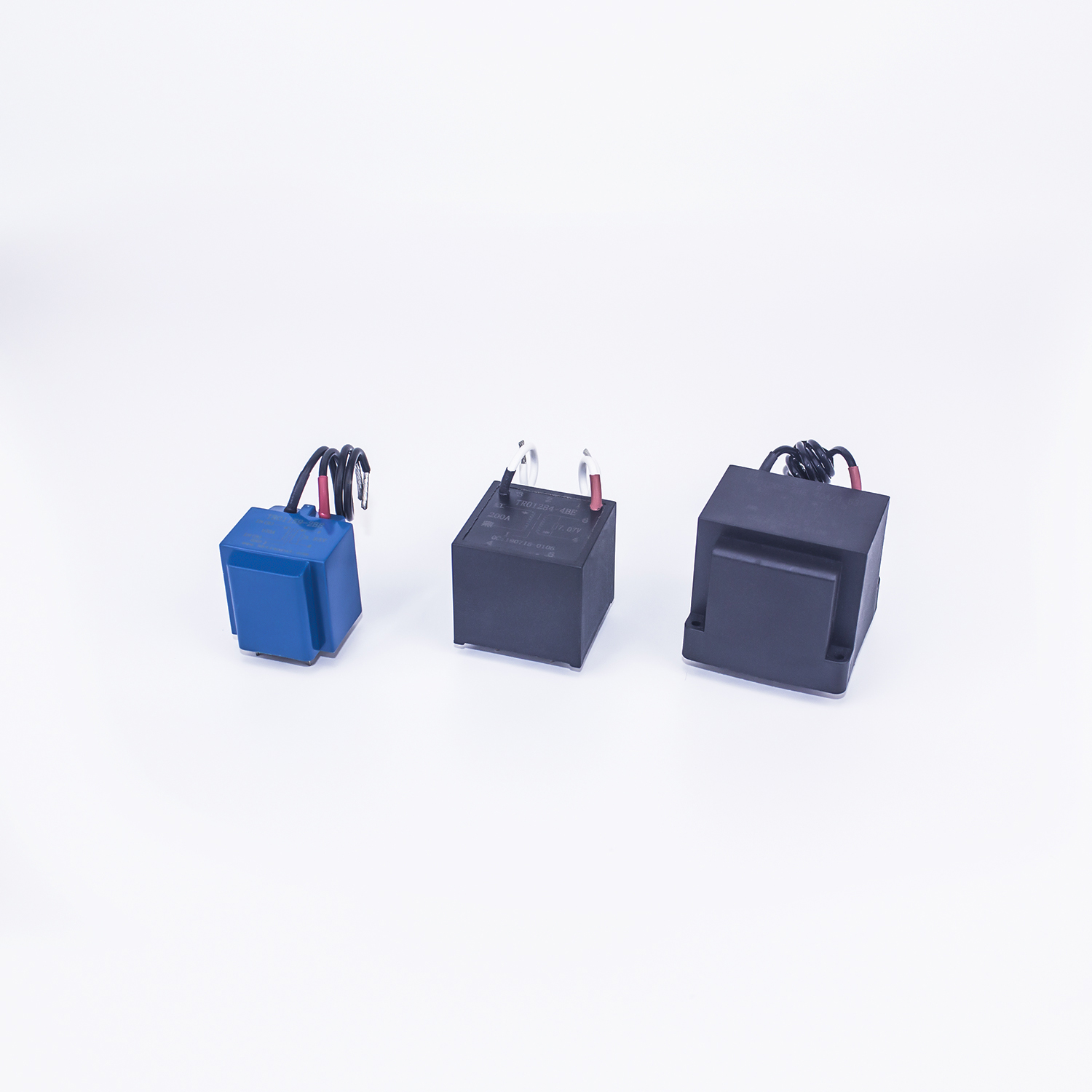

Various shape structures are available .
| Electrical performance parameters |
Operation temperature | -25℃～+55℃/-40℃~～+85℃optional | Relative humidity | ≤90%hPa |
|---|---|---|---|---|
| Internal insulation | Epoxy resin | Insulation resistance | ＞500 M Ohms/500Vdc | |
| Medium strength | 3000Vac/min | Withstand impulse voltage | 5000V（1.2/50μsStandard Lightning Wave） | |
| Rated load | ＞50K Ohms | Operation frequency | 50～400Hz | |
| Accuracy class | According to（IEC 61869-2）or （GB 20840.2-2014）the definition of the error limit of the current transformer for medium protection; |
Environmental friendly | According to the requirement of RoHS; |

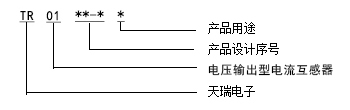

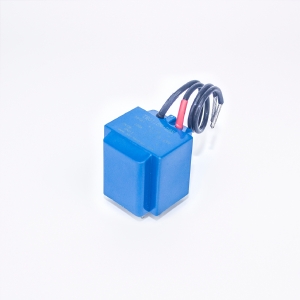

| Physical Pic | Type | Rated input current (AC) |
Rated overload Input current /output voltage (AC) |
Error limit | Transient characteristic | Power consumption （VA) | Dimensions（mm） |
|---|---|---|---|---|---|---|---|
 |

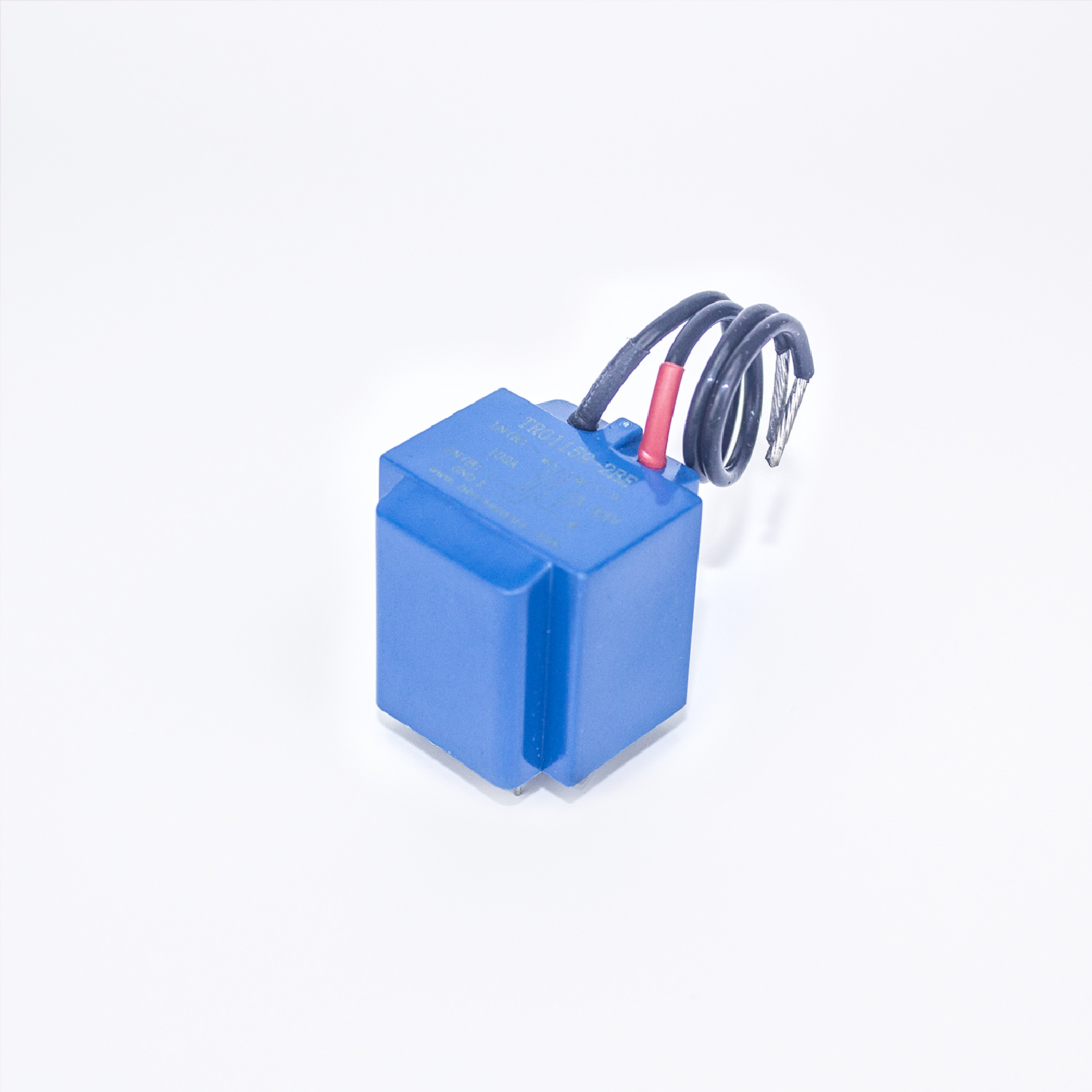

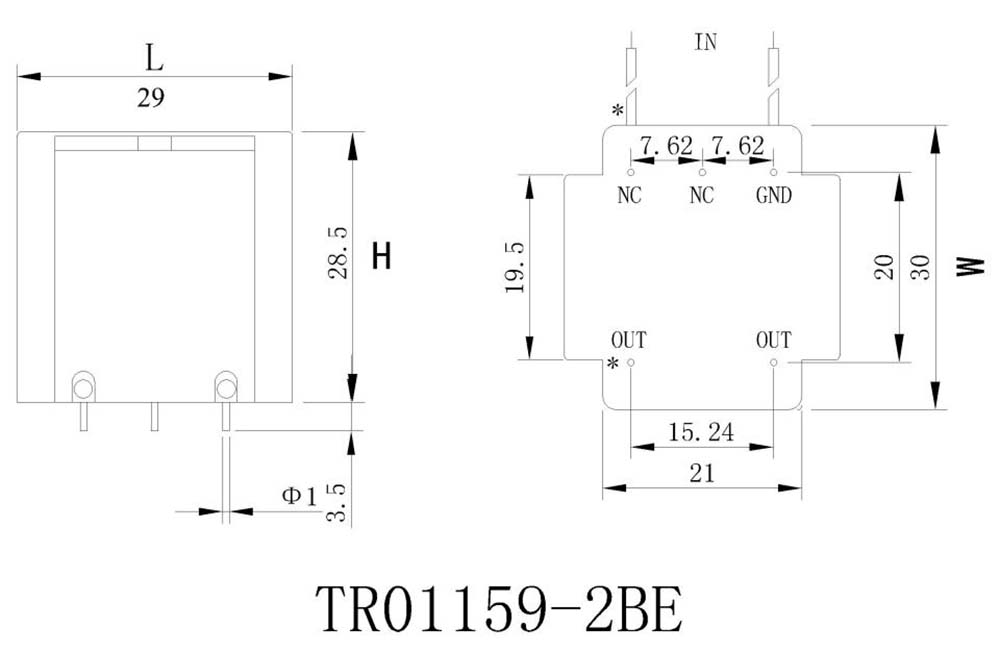

TR01159-2BE | 1A,5A | 20A/3.5V,3.53V 40A/3.5V,3.53V 100A/3.5V,3.53V 200A/3.5V,3.53V |
5%～200%within rated current input range ：0.5，1.0 class; 2～20/40times within rated current input range1.0 class； |
Tp=100ms,offset factorcosθ=0.5， |
≤0.5 |
 L-W-H 29-30-28.5 |
 |

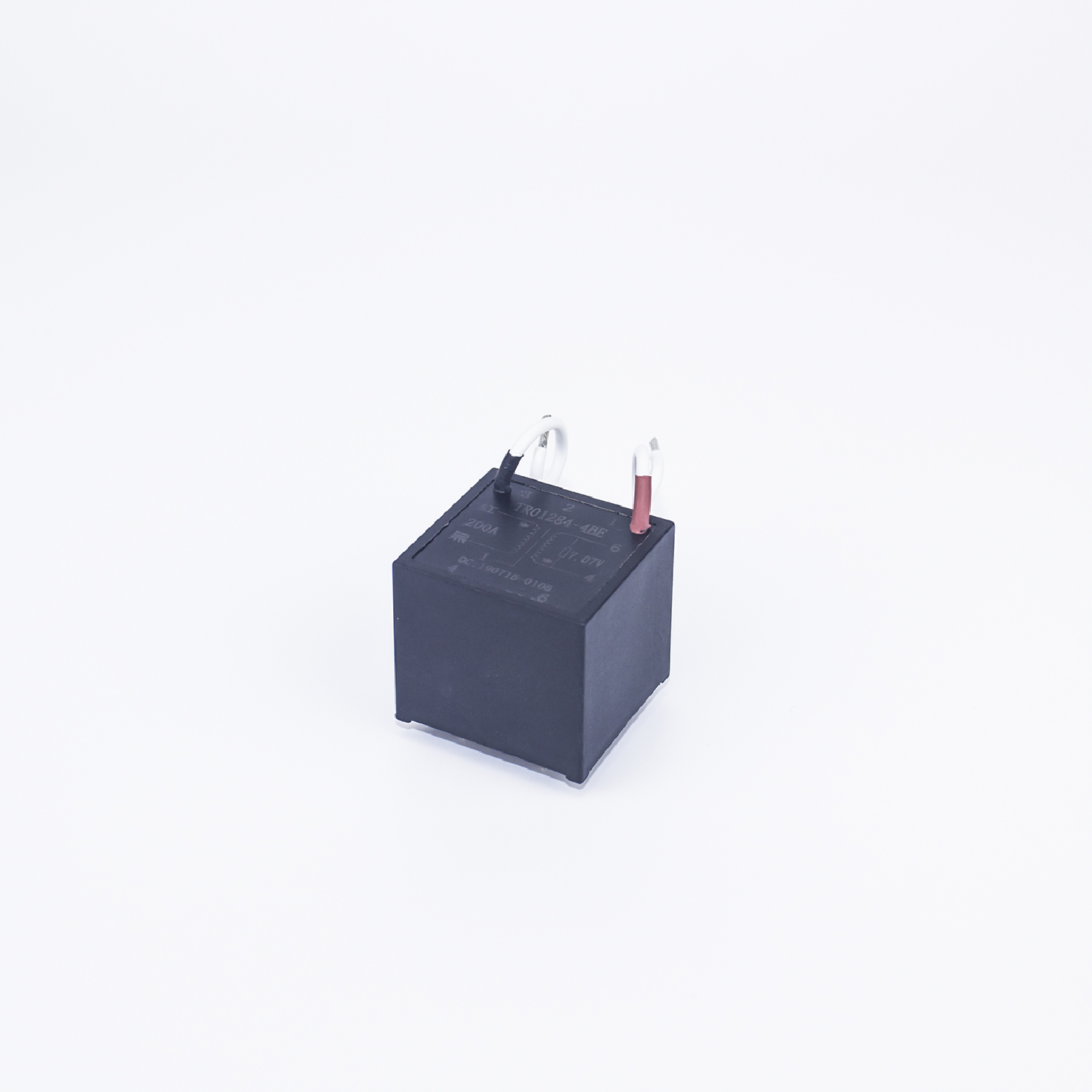

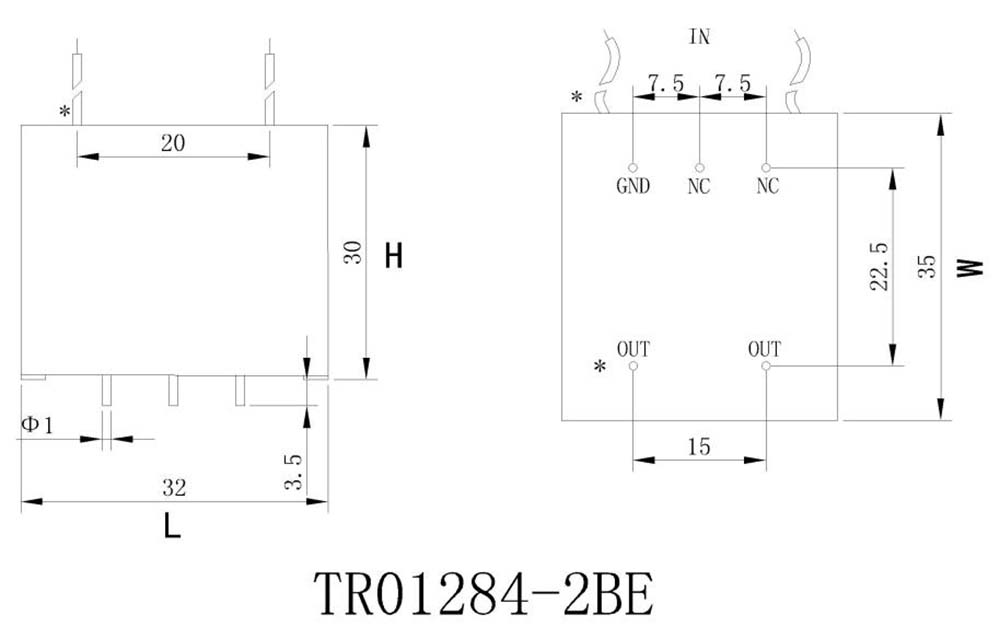

TR01284-2BE | 1A,5A | 20A/3.5V,3.53V 40A/3.5V,3.53V 100A/3.5V,3.53V 200A/3.5V,3.53V |
≤0.5 |
 L-W-H 32-35-30 |
||
 |

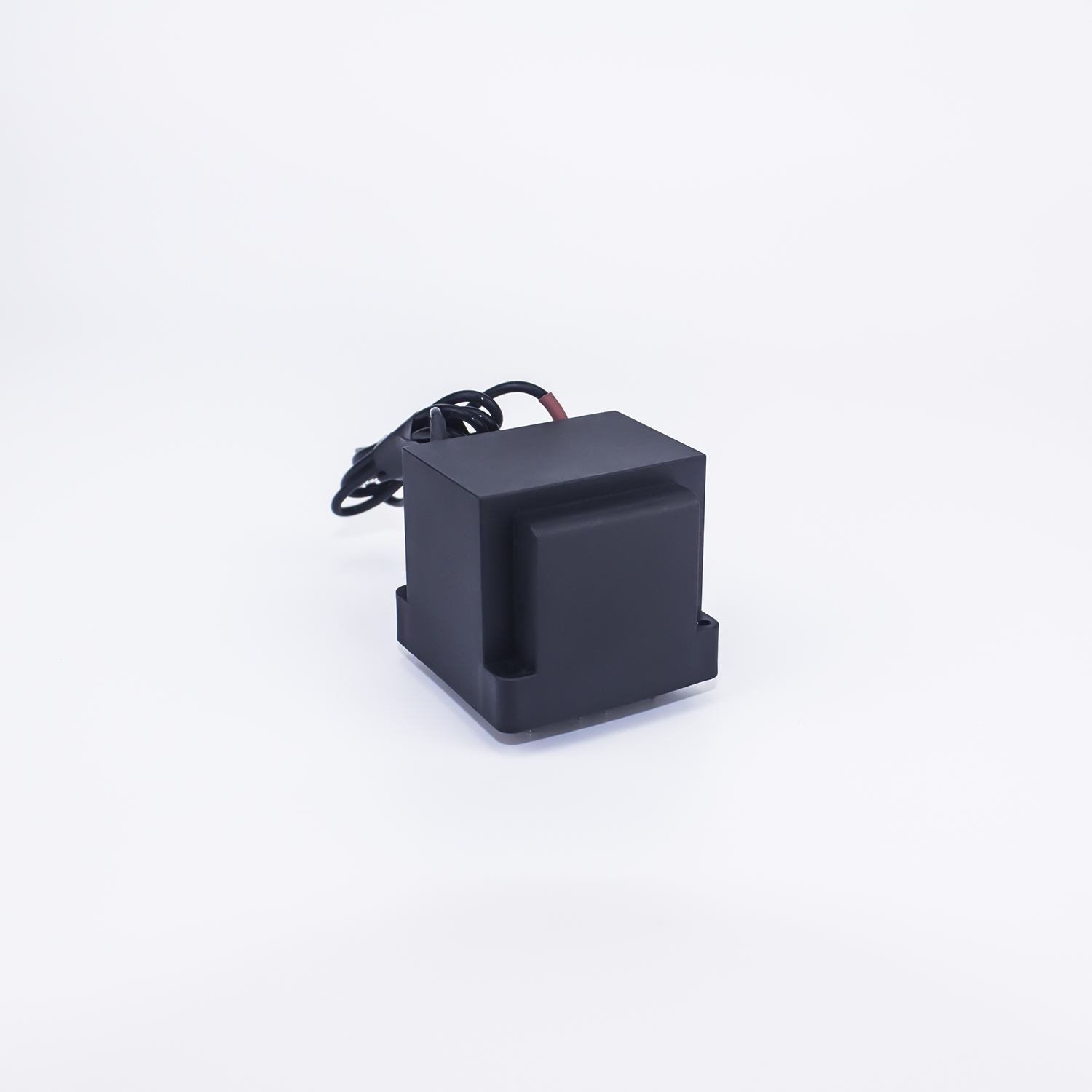

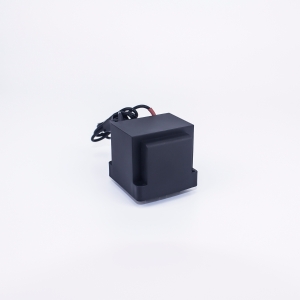

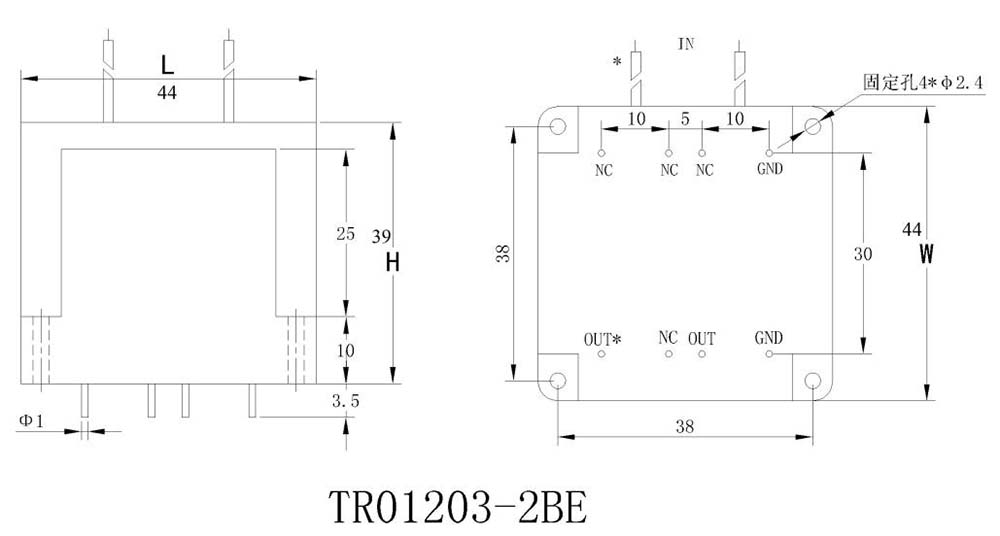

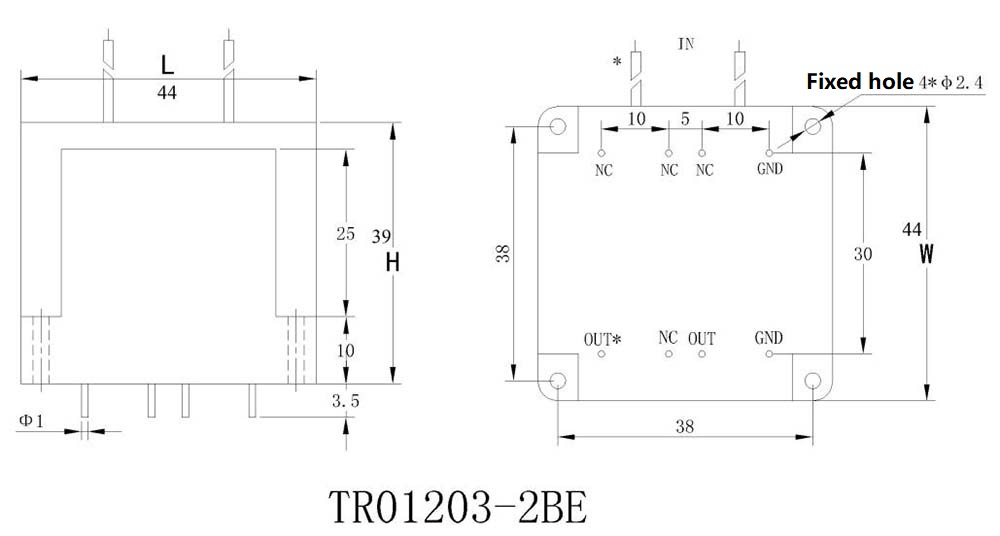

TR01203-2BE | 1A,5A | 20A/3.5V,3.53V 40A/3.5V,3.53V 100A/3.5V,3.53V 200A/3.5V,3.53V |
≤0.5 |
 L-W-H 44-44-39 |
Remarks：Customization available according to system requirements .
