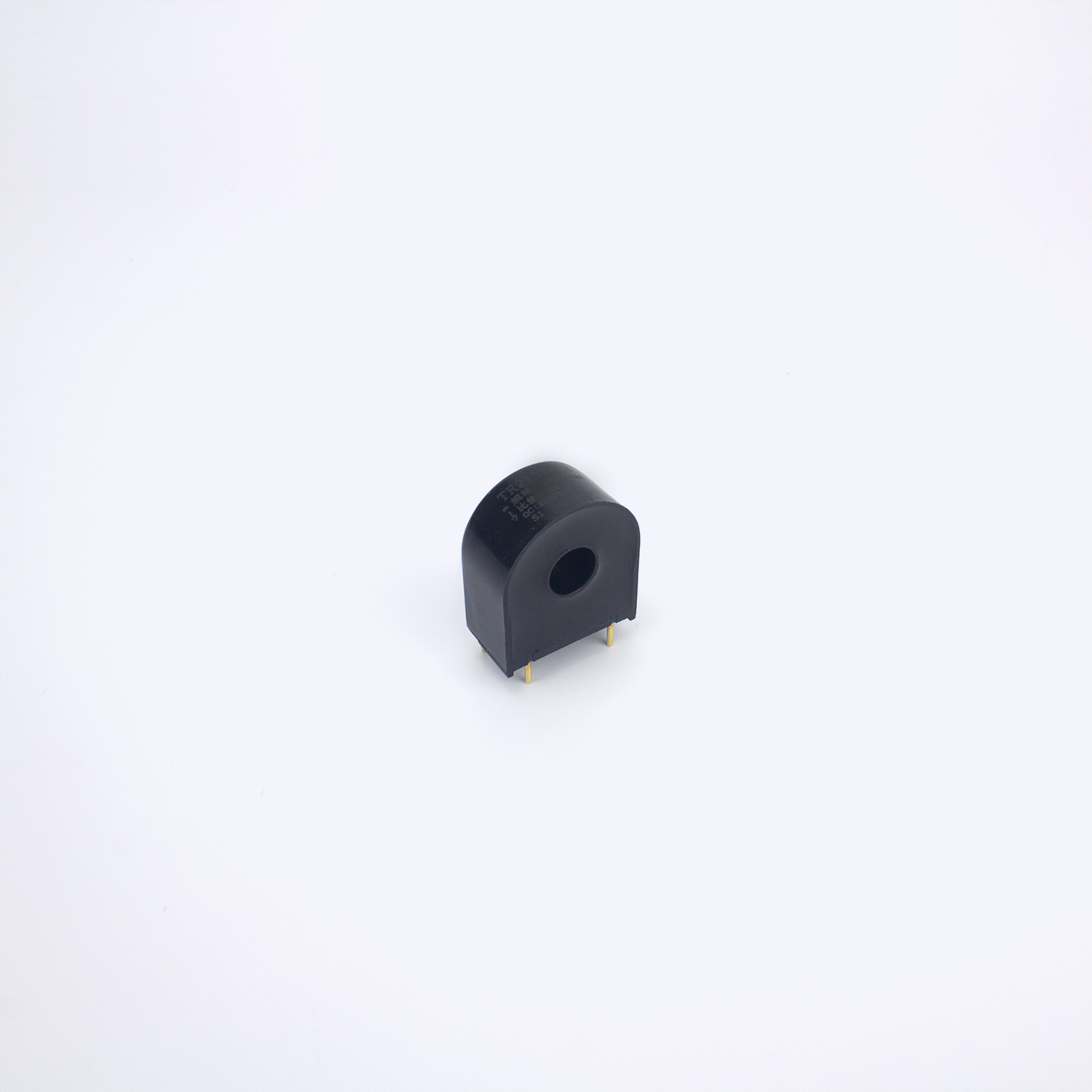

Product Description

This product is used as an electric energy metering device that requires high precision and small phase error. The input AC current through the core hole of the transformer induces a Ma-level current signal on the secondary side ,which is converted into the required voltage signal by the back-end sampling resistor and accurately transmitted to the electronic circuit based on micro-processing .
Product Characteristics


Low price ,easy cost control

High precision ,wide linear range ,excellent consistency

Small size and light weight ,easy for high –density PCB mounting

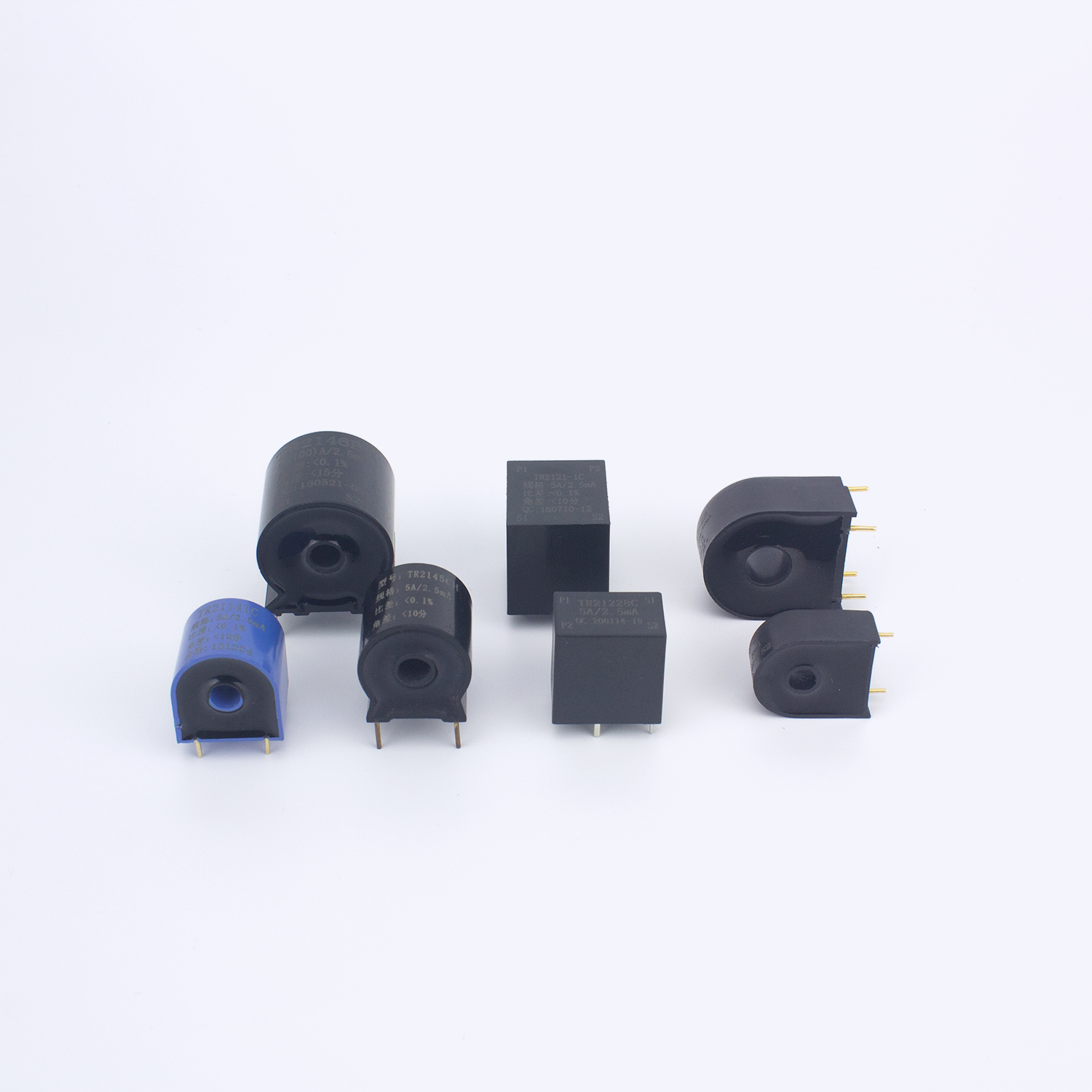

Various shape structures are available

Application

Apply to monitoring of multi-function instruments, intelligent detection instruments ,electronic watt-hour meters and building control systems .
Product Parameters

Electrical
performance
parameters		 Operation Temperature -25℃～+55℃/-40℃～+85℃ optional Relative Humidity ≤90%hPa
Internal Insulation Epoxy resin Insulation Resistance ≥500MΩ/500V DC
Power Frequency Withstand Voltage 3000V AC/1min Withstand Impulse Voltage 5000V（1.2/50μsStandard Lightning Wave）
Operation Frequency 50～400Hz Accuracy Class According to（IEC 61869-2）class 0.1，0.2 and（JBT/10665-2016）0.1，0.2
Environmental Friendly According to the requirement of RoHS;  \  \

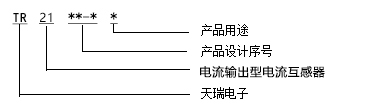

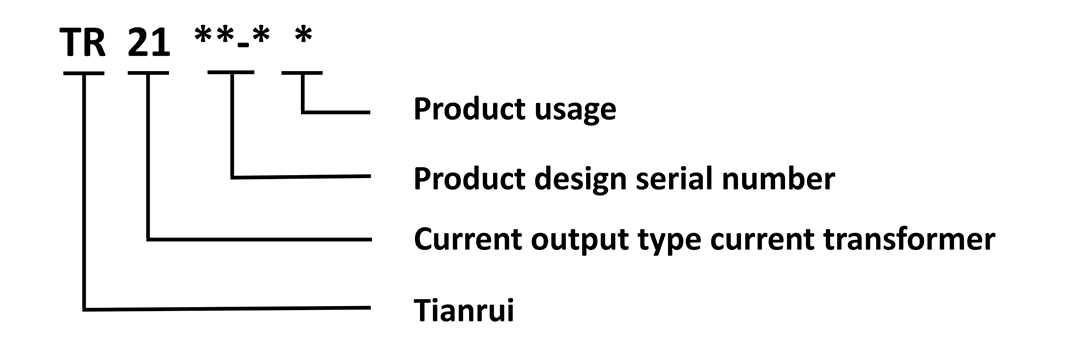

Model Interpretation

型号释义
Main Technical Specifications

Physical Pic Type Rated input Iin Rated output Iout Ratio Maximum overload times Secondary load(Ω) Accuracy class Dimensions（mm）

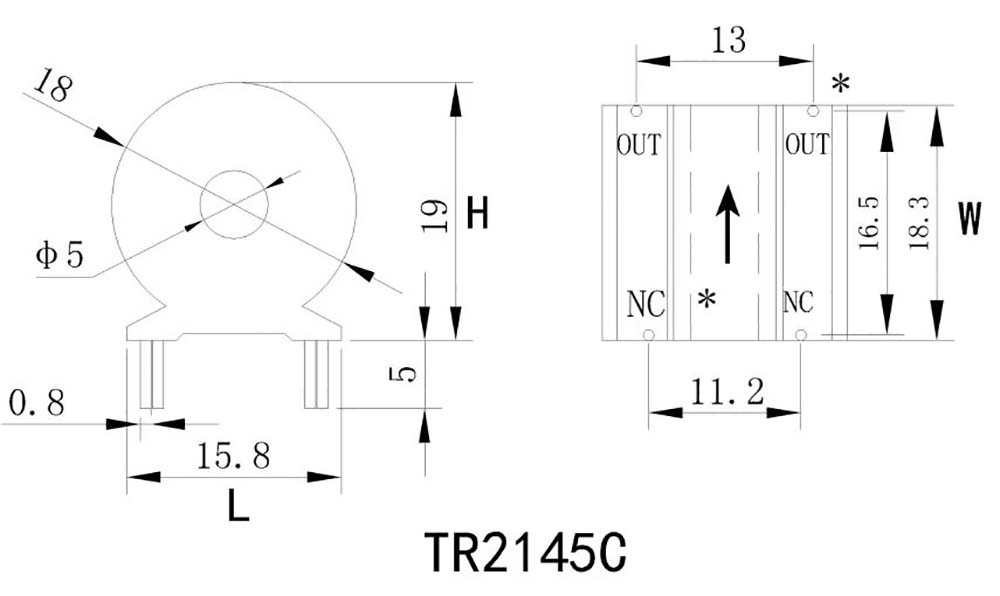

TR2145CB 0～5A 0～5mA 1000:1
2000:1

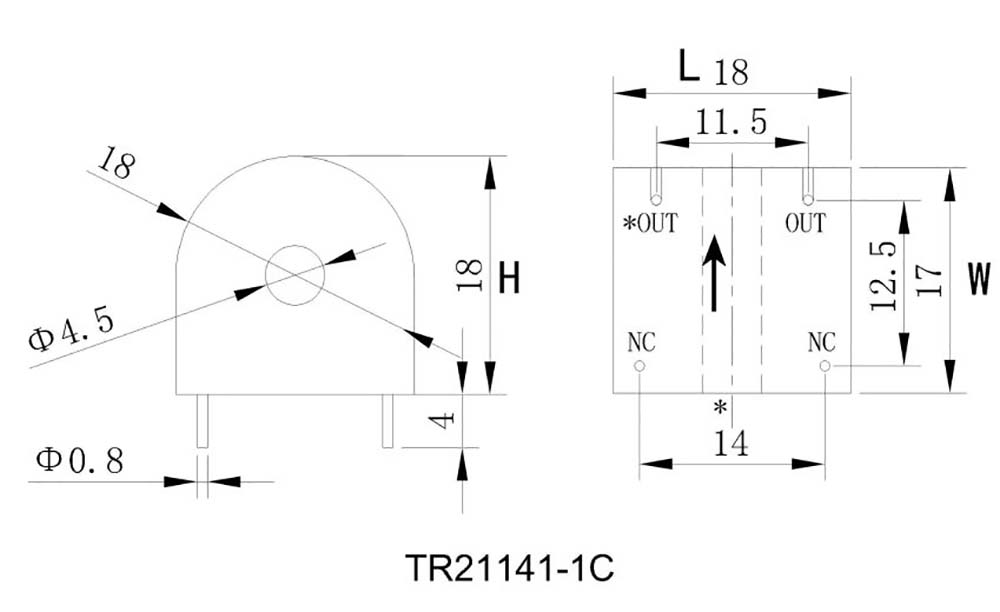

2500:1		 20 ≤20 0.1，0.2 查看外形结构图

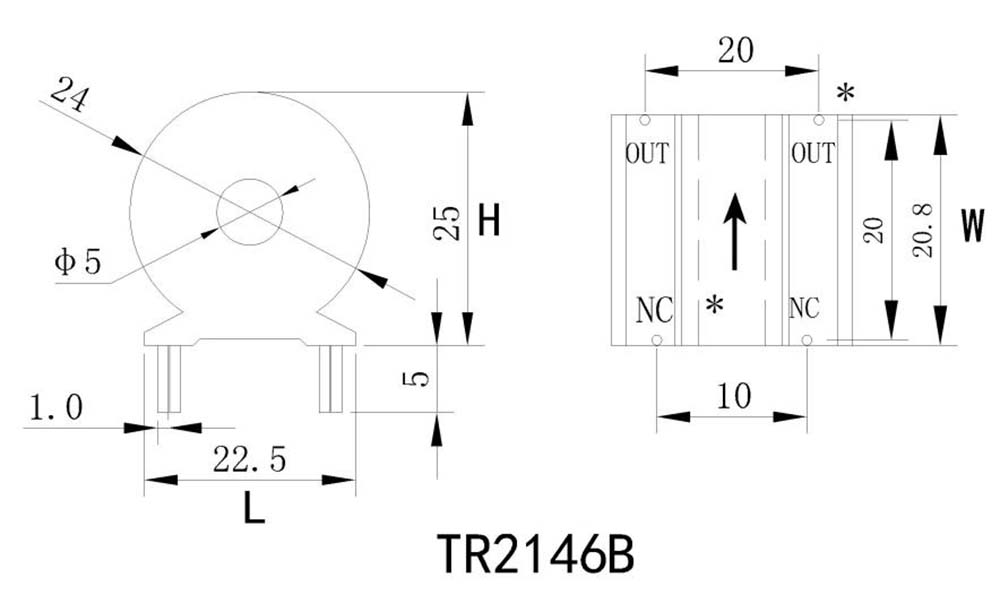

L-W-H
15.8-17.3-19
TR2146B 0～5A 0～5mA 1000:1
2000:1
2500:1		 20 ≤100 0.1，0.2 查看外形结构图
L-W-H
22.5-20.8-25

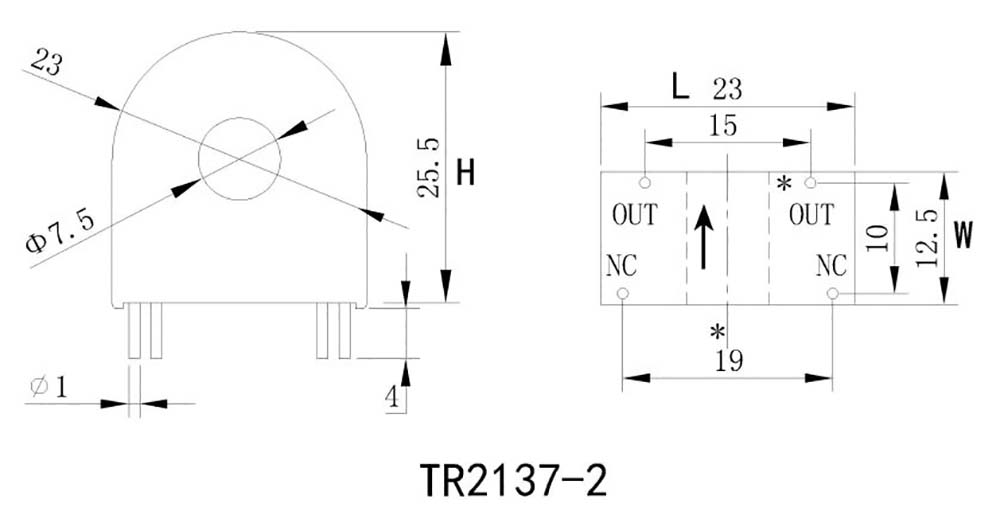

TR2137-2B 0～10A 0～10mA 400:1
500:1
1000:1
2000:1
2500:1		 20 ≤100 0.1，0.2 查看外形结构图
L-W-H
23-12.5-22.5
TR2121-1C 0～5A 0～5mA 1000:1
2000:1
2500:1		 5 ≤200 0.1，0.2 查看外形结构图

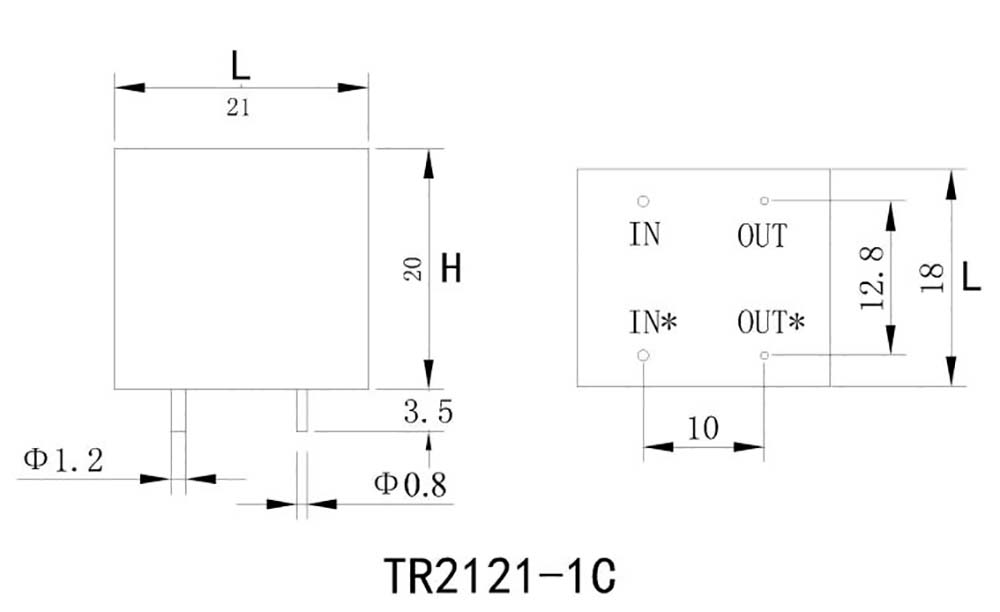

L-W-H
21-18-20
TR21141-1C 0～5A 0～5mA 1000:1
2000:1
2500:1		 10 ≤200 0.1，0.2 查看外形结构图
L-W-H
18-17-18

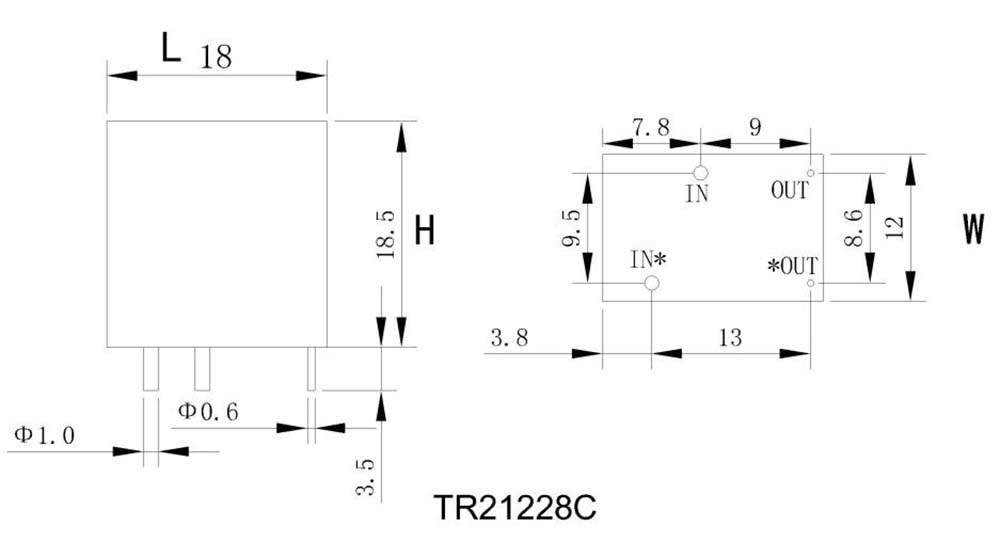

TR21228C 0～5A 0～5mA 1000:1
2000:1
2500:1		 2 ≤200 0.1，0.2 查看外形结构图
L-W-H
18-12-12.8
TR2155-2C 0～5A 0～5mA 1000:1
2000:1
2500:1		 2 ≤200 0.1，0.2 查看外形结构图

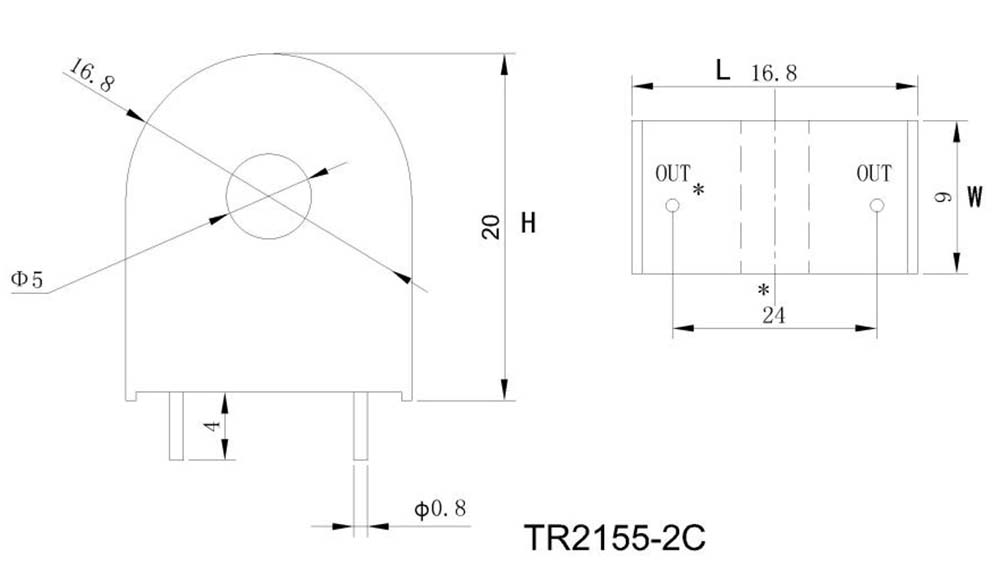

L-W-H
16.8-9-20

Remarks：Customization available according to system requirements .

We are a manufacturer has export qualification and experience.

instrument type at least 100pcs ;others by 1 -5 pcs;

T/T;L/C;

Instrument transformer 20 thousand pcs ;current transformer 12 thousand pcs ;voltage transformer 11 thousand pcs.

We have a R&D team for new product design. Successful cases and in continued cooperation. Discussion among both sides ➡general specification ensure➡structure drawing ➡original sample ➡electrical
