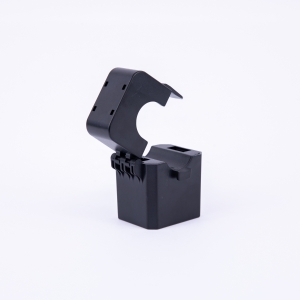

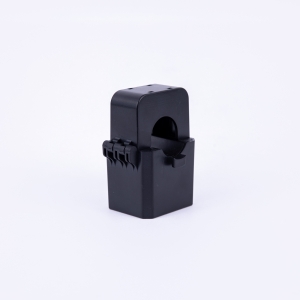

A Series Split-core Cable Type Current Transformer

A Series Split-core Cable Type Current Transformer

Product Detail
FAQ
Qualification certificate
Send Inquiry

Product description

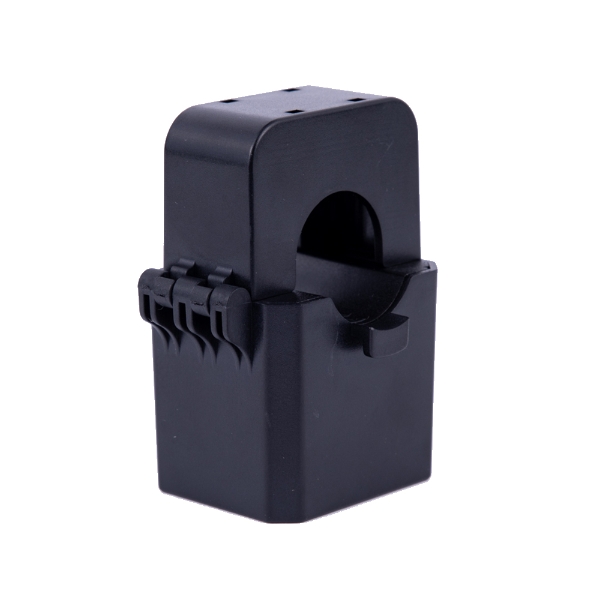

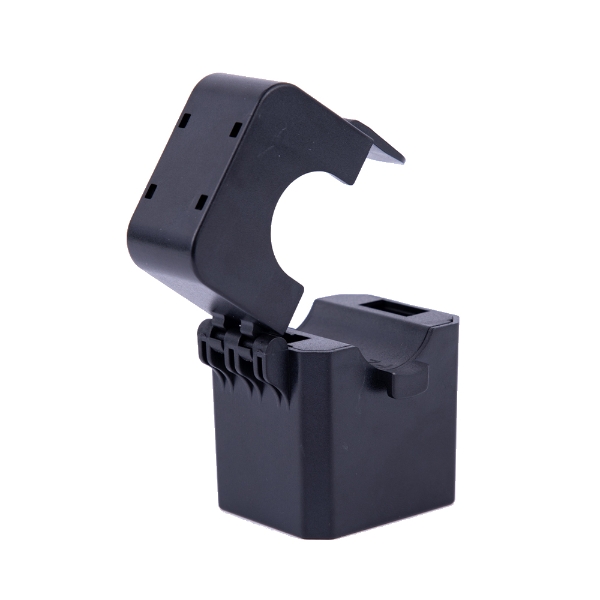

TR-A series open and close current transxformer,180 degrees open and close freely, indoor use. It can be quickly installed and disassembled in the state of no power failure and continuous line and the operation is simple ,Through the principle of electromagnetic induction ,the measured source is isolated from personnel and equipment ,effectively ensuring the safety of personnel and property. This series of products has a variety of apertures and specifications to meet different use and installation needs.

Product characteristics

The buckle structure is fixed and the stability is good;

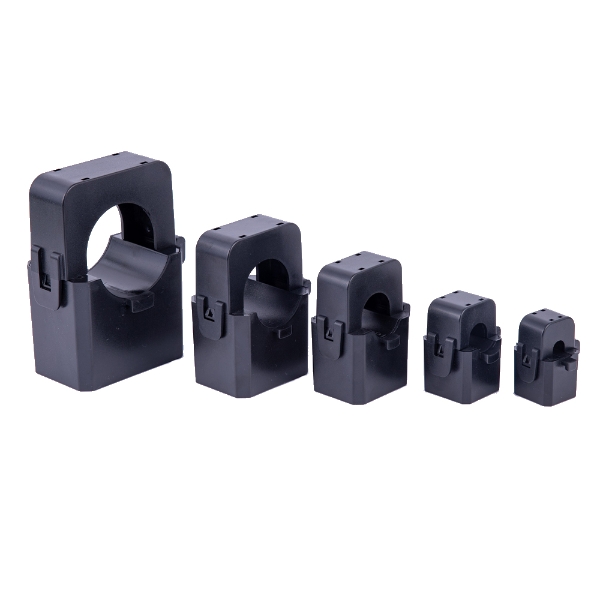

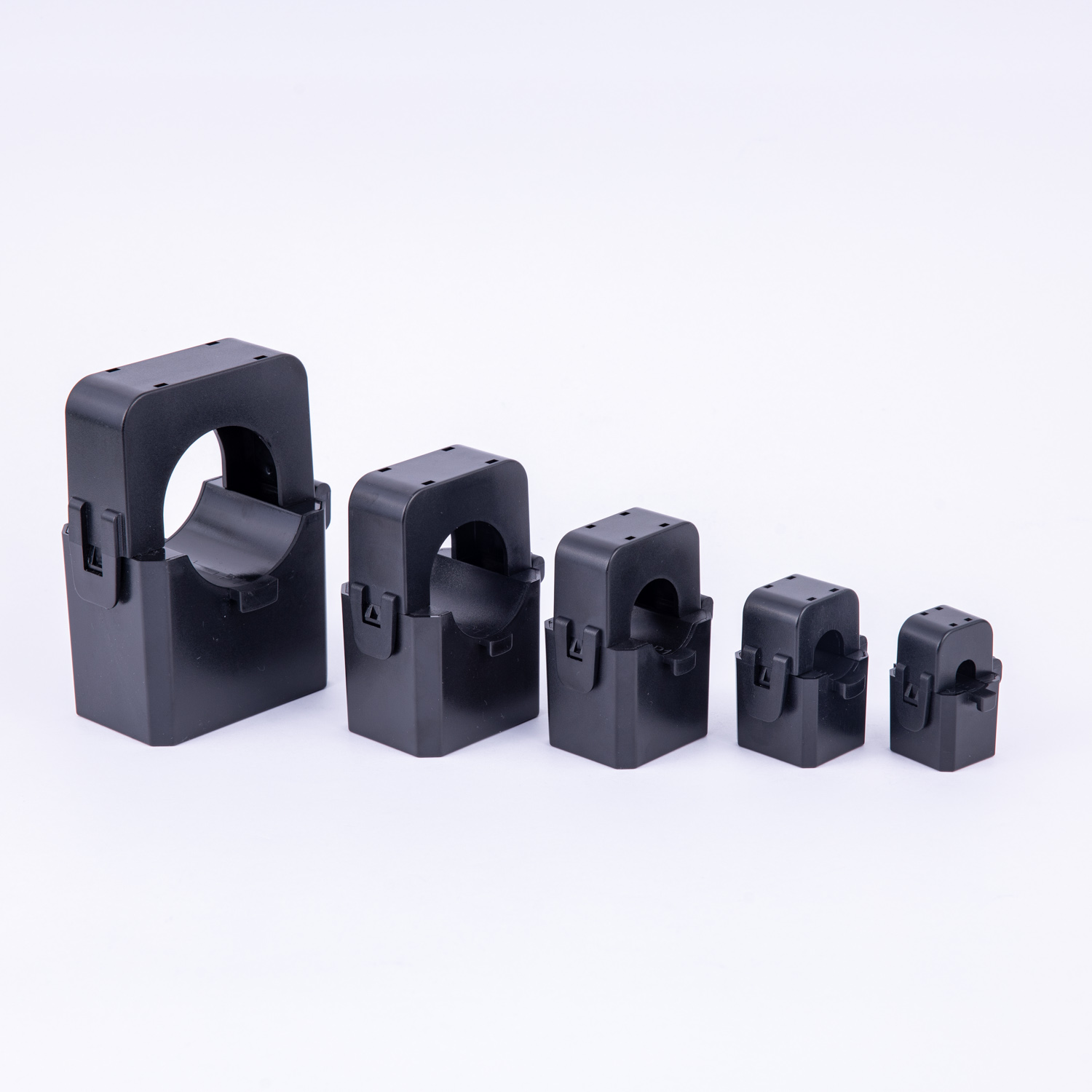

According to the cable specifications used in the main circuit, there are various core hole diameters corresponding to it ;

Wide quantity limit and strong anti-saturation ability .Rated primary current range :1~1000A,rated secondary current range :0~5 A, current transformation ratio range can reach 100:1~10000:1;

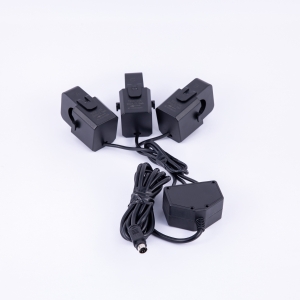

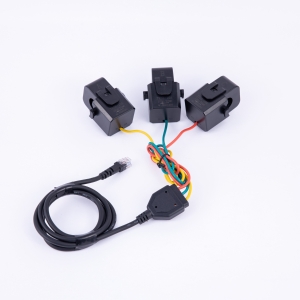

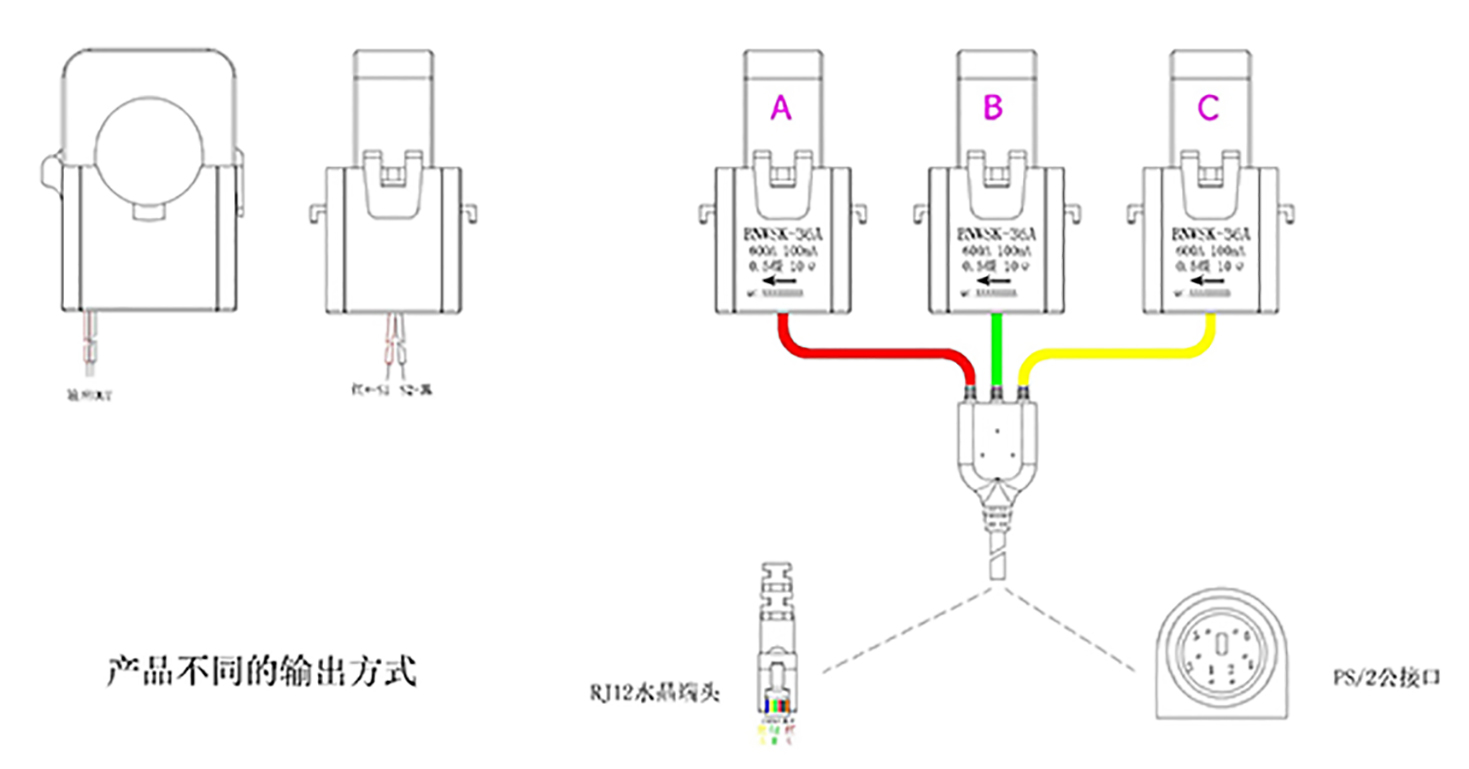

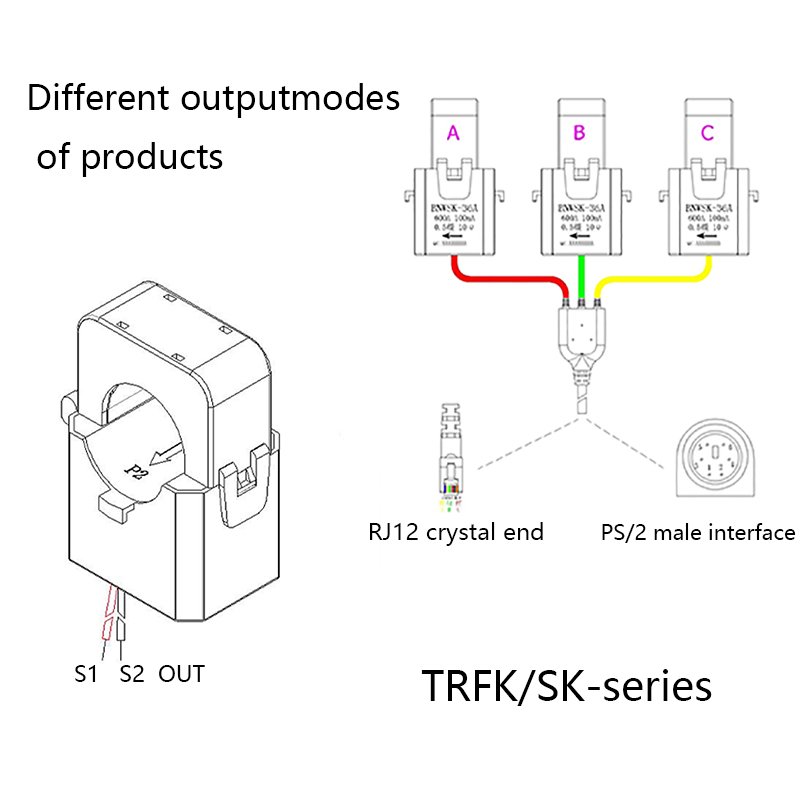

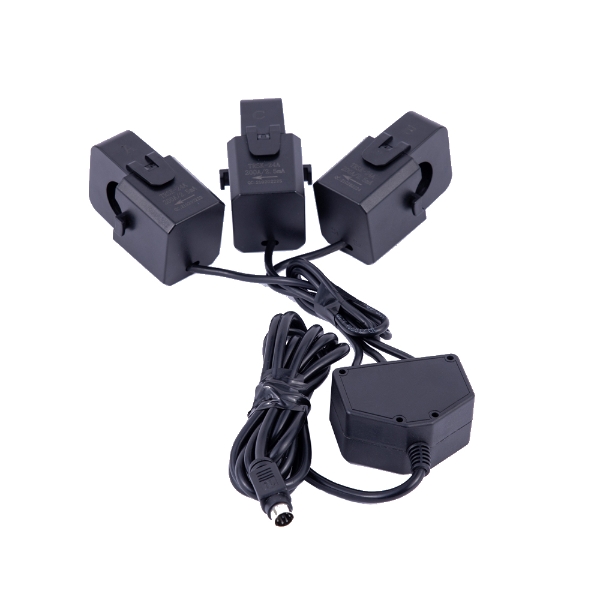

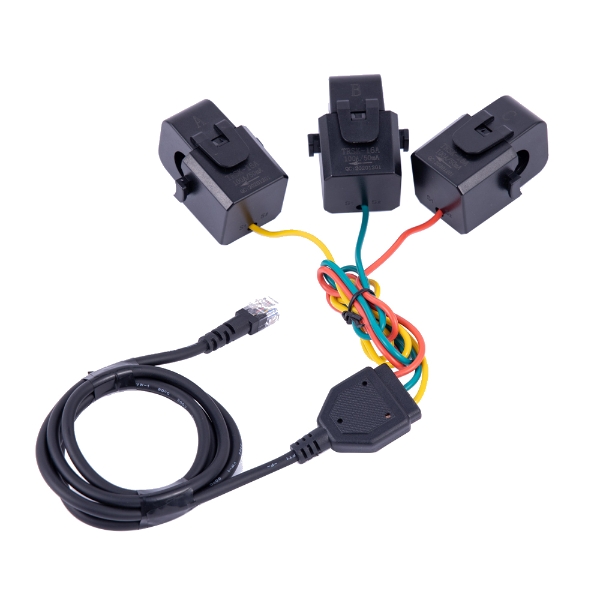

Provide a variety of combined output methods: when outputting ampere-level current, you can use PVC sheathed wire terminals alone ,output Ma-level current, you can choose three-phrase integrated collection terminals and choose a variety of signal interfaces.

Adopt high magnetic permeability core, good linearity and high sensitively .

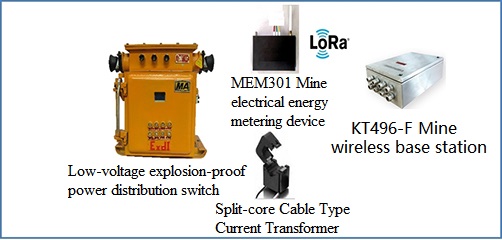

Application

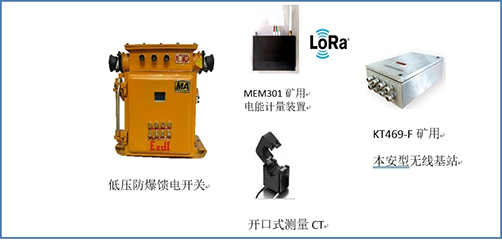

Rural power grid reconstruction project, online environmental monitoring ,smart fire-fighting power consumption, low-voltage power distribution system, smart power consumption system, electricity measurement ,power quality analysis and electrical equipment signal collection ,lighting equipment such as power installations, small current grounding systems, etc.

Performance

Electrical performance/p> parameters	Operation temperature	-40℃～+70℃	Relative humidity	≤90%
	Voltage level	0.4/0.66/0.72KV	Linear range	5%～120%
	Rated input current	0～1500A	Rated frequency	50/60Hz
	Rated capacity	0～5VA	Power frequency withstand voltage	3KV/min
	Accuracy class	0.5、1.0	Dielectric strength	1000MΩ/500V/min
Mechanical structure parameters	Shell	PA/PC Flammability rating 94-V0	Output method	PVC Sheathed cable/RJ12 Crystal terminal 头/PS/2Round head male interface
	Winding bobbin	PBT	Opening-closing structure	snap
	Core material	Silicon steel/manganese zinc ferrite	Construction plan	Nylon cable ties bundled and fixed cables

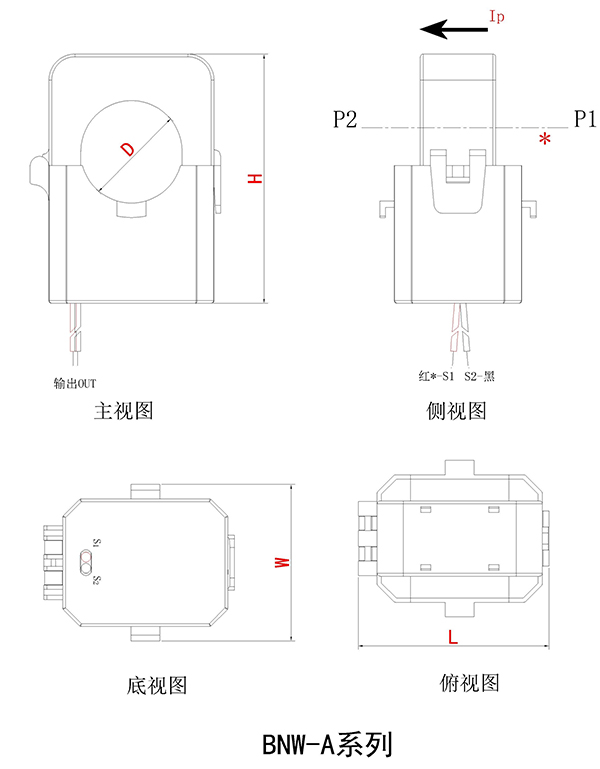

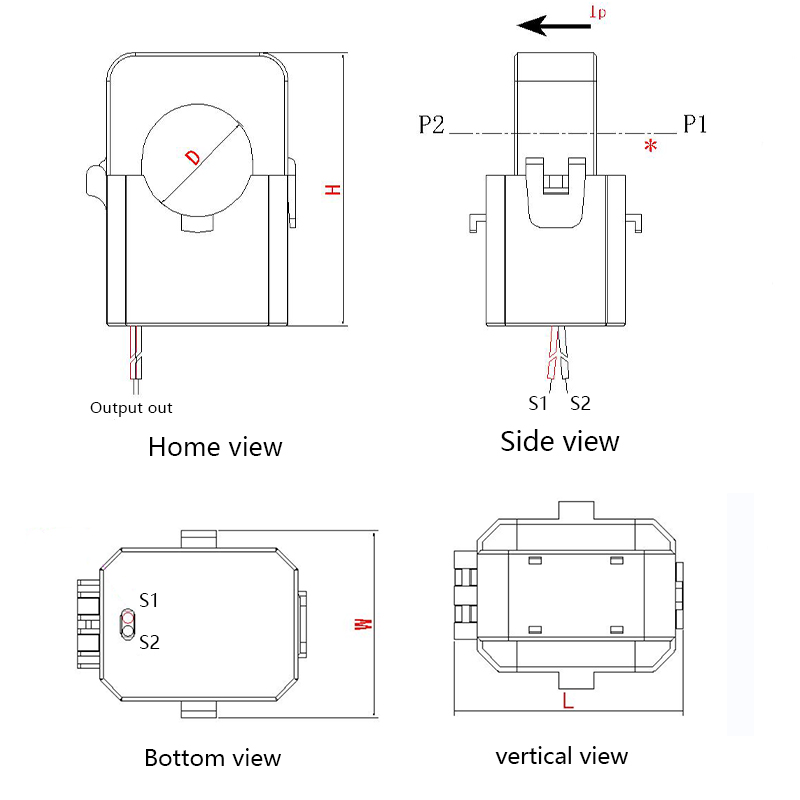

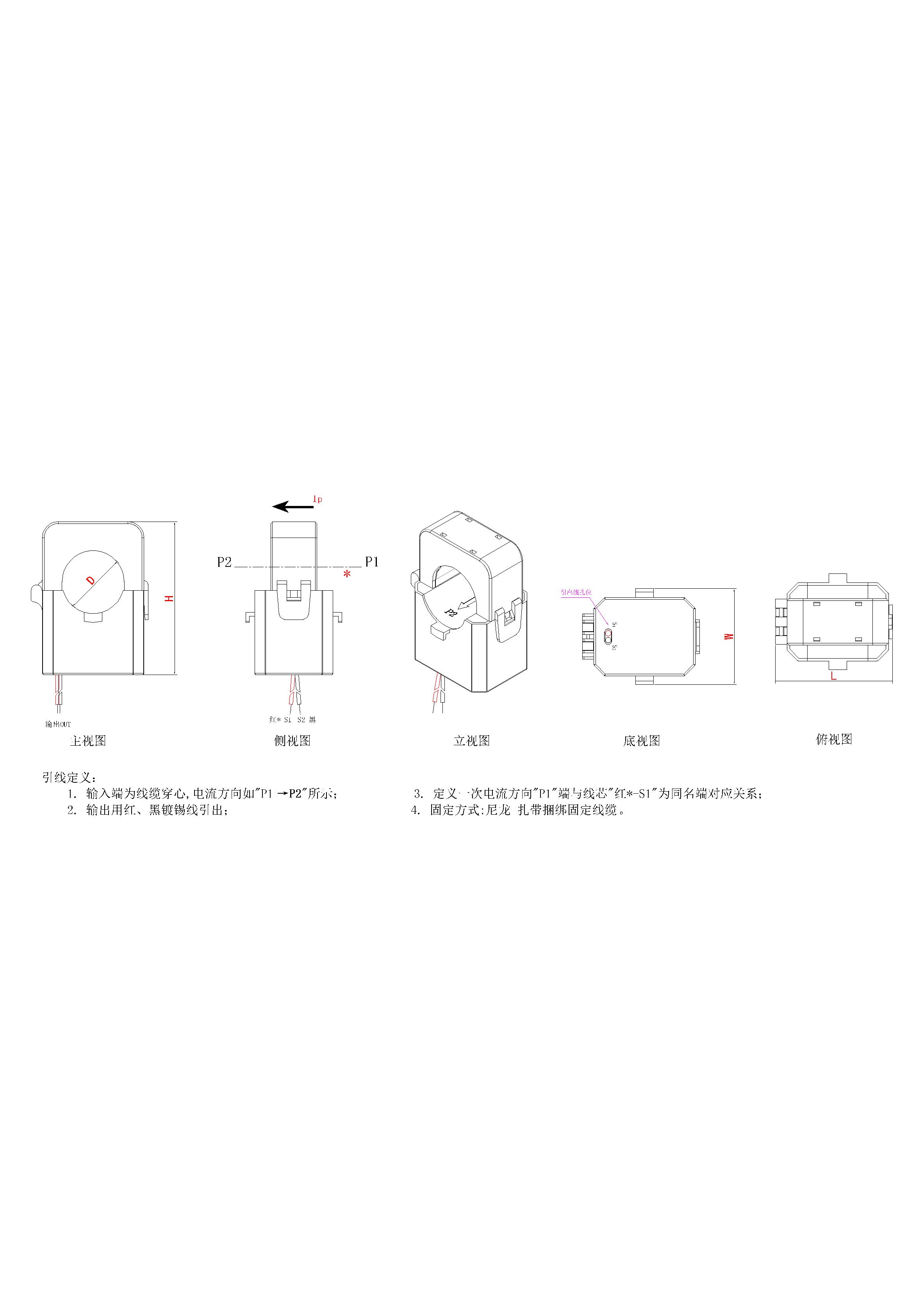

Shape and installation dimensions

Product model	rated input	rated output	accuracy class	Dimensions(mm)
Product model	rated input	rated output	accuracy class	D	L	W	H
TRFK-10A	0～75A	0～50mA （0～1.0V）	0.2 0.3 0.5 0.5s	9	34.5	37.5	45
TRFK-16A	0～150A	0～100mA （0～2.5V)		15	40.5	42.5	52
TRFK-24A	0～250A	0～100mA （0～5.0V)		22.5	54	47	71
TRSK-36-1A	0～300A	0～100mA （0～7.0V)		35	61	53	81
TRSK-36A	0～500A	0～100mA （0～7.0V)		35	66	53	87
TRSK-50-1A	0～600A	0～100mA （0～7.0V)		49	81	59	107.5
TRSK-50A	0～800A	0～100mA （0～7.0V)		50	88	59	114
TRSK-10A	5～100A	0～200mA （0.5VA）	0.5 0.5s 1.0 3.0	9	34.5	37.5	45
TRFK-16A	5～150A	0～1A （0.5VA 1VA）		15	40.5	42.5	52
TRFK-24A	10～300A	0～5A （0.5VA 2.5VA）		22.5	54	47	71
TRSK-36-1A	10～500A	0～5A （0.5VA 2.5VA）		35	61	53	81
TRSK-36A	10～600A	0～5A （0.5VA 3.75VA）		35	66	53	87
TRSK-50-1A	10～1000A	0～5A （0.5VA 3.75VA）		49	81	59	107.5
TRSK-50A	10～1500A	0～5A （0.5VA 5VA）		50	88	59	114

Products size chart

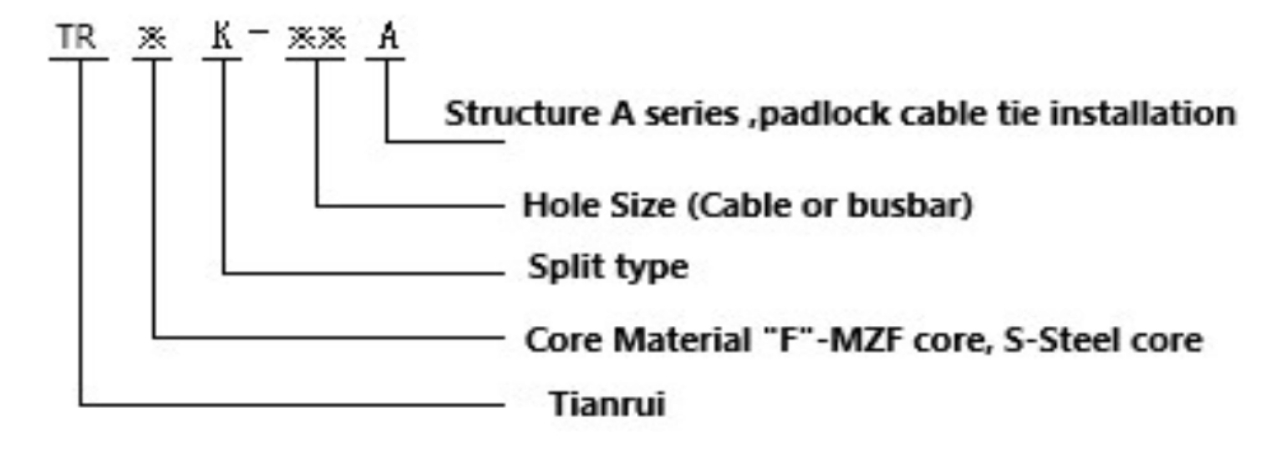

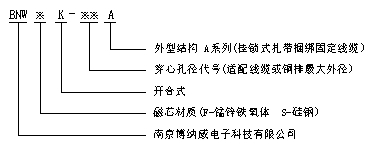

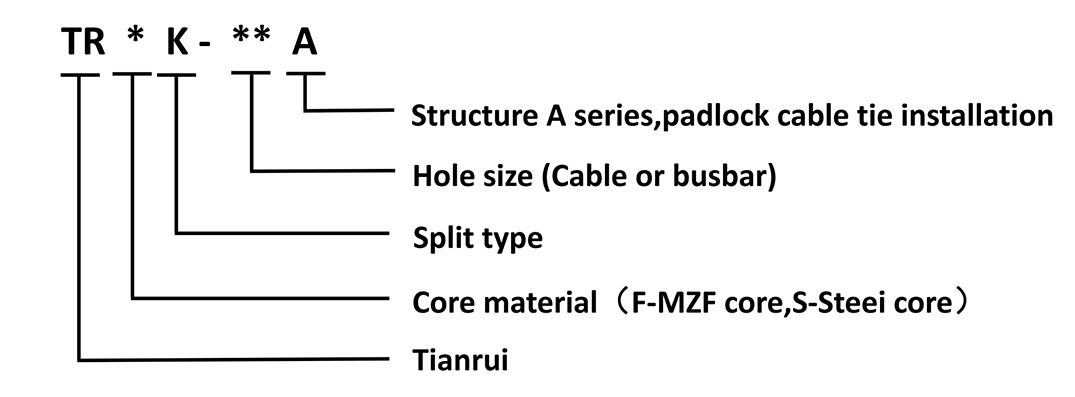

Product Model Naming rules

Installation precautions

Before the silicon steel core is closed ,ensure that the end face of the incision is clean ,free of stains and impurities;It must be treated with anti-rust agent;

It is recommended to use a special pry bar/pry tool to open it. Do not break the buckle with excessive force.
