PRODUCT OVERVIEW

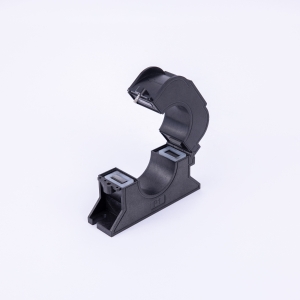

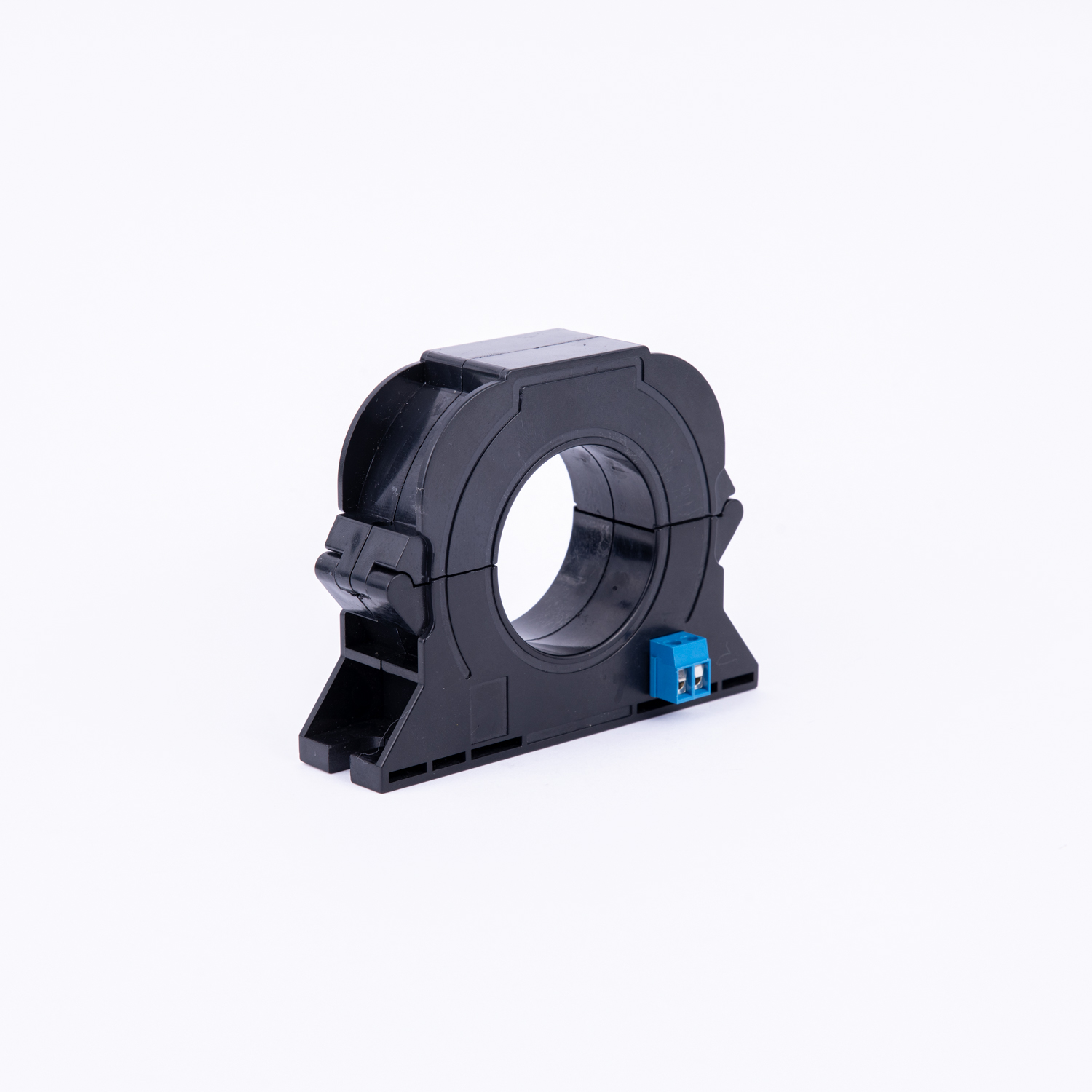

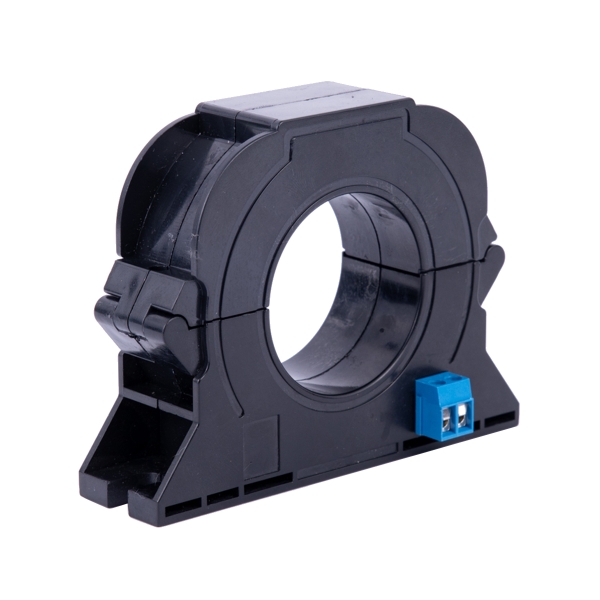

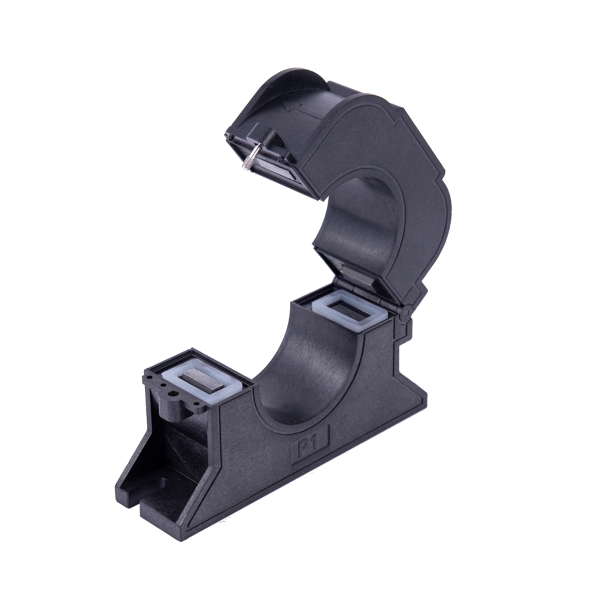

B series open and close residual current transformer, 90 degrees open and close freely, can be used outdoors. It can be quickly installed and disassembled in the state of no power failure and continuous line, and the operation is simple. This series of products has a variety of apertures corresponding to the cable specifications used in the main circuit to meet different use and installation needs. The use of high magnetic permeability magnetic core improves the response time of the transformer to residual current. The unbalanced current monitoring value is better than 5mA, which greatly reduces the false alarm and malfunction caused by the main circuit current magnetic field interference, which provides a sufficient guarantee for the reliability of the equipment.
Product Features

Split-core structure, easy to install on site and easy to operate;

The magnetic core winding structure is cast with epoxy resin, and the end faces of the incision are matched, and the stability is good;

Adopt high-permeability ultra-microcrystalline core, with good linearity and high sensitivity;

Scope of Application
Electrical fire monitoring system, fire-fighting equipment power monitoring system, rural power grid reconstruction project, intelligent power consumption system, low-current grounding system, electromagnetic relay protection, online environmental monitoring, etc.
PERFORMANCE
Electric
Performance
Parameters 		Operating Temperature -40℃～+70℃ Relative Humidity ≤90%
Voltage Level 0.4/0.66/0.72KV Linear Range 5%～1000%
Rated Input Current 0～1A Rated Frequency 50/60Hz
Rated Output 0～0.25mA or 0～1V Power Frequency Withstand Voltage 3KV/min
Accuracy Class 0.5、1.0 Insulation Strenth 1000MΩ/500V/min
Mechanical
Structure
Parameters 		Shell and Skeleton PBT/PC Flame Retardant Grade 94-V0 Output Method Sheathed Lines
Iron Core Material Nanocrystalline Split-core Structure “304”Fastening with inseparable screw
Sealing and Filling Epoxy Resin Construction Plan Base mounting screw fixing

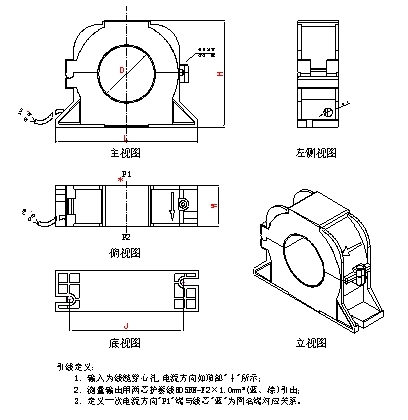

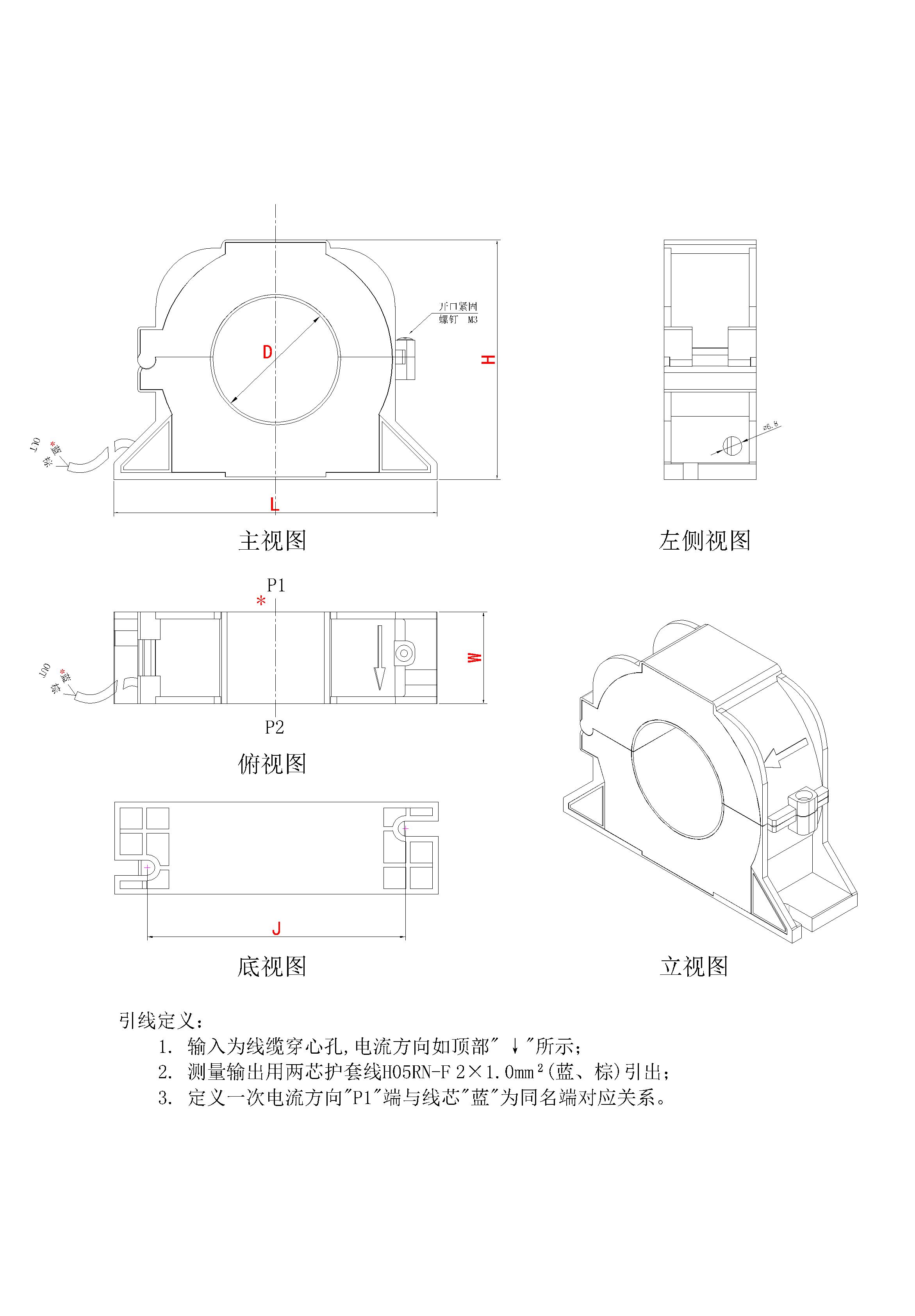

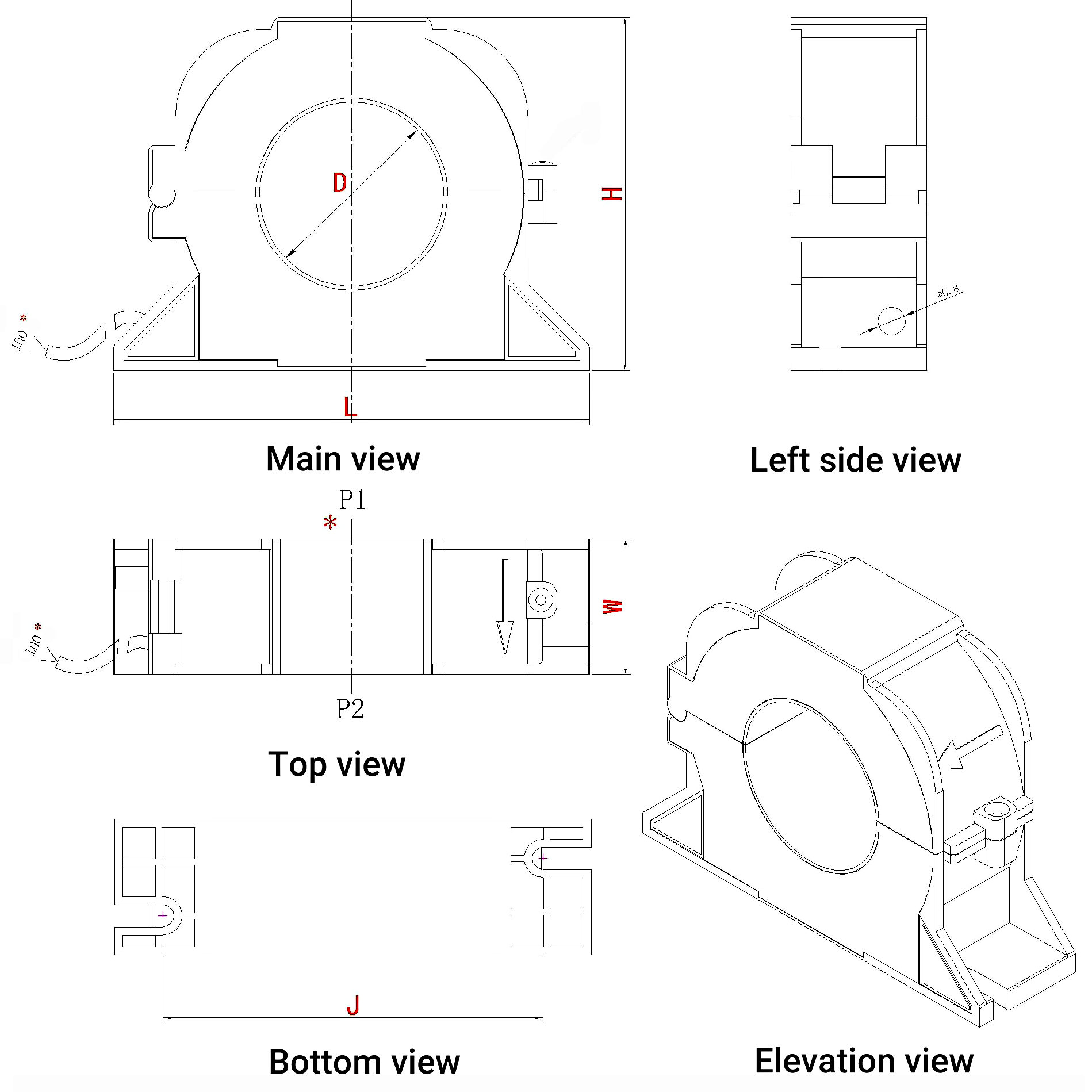

Shape and Installation Dimensions
Product
Model NO. 		Rated
Input 		Rated
Output 		Precision
Class 		Dimensions(mm)
D L W H J K

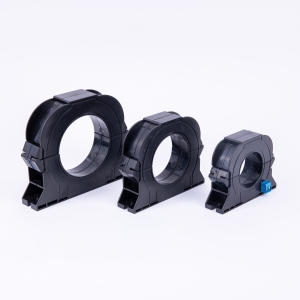

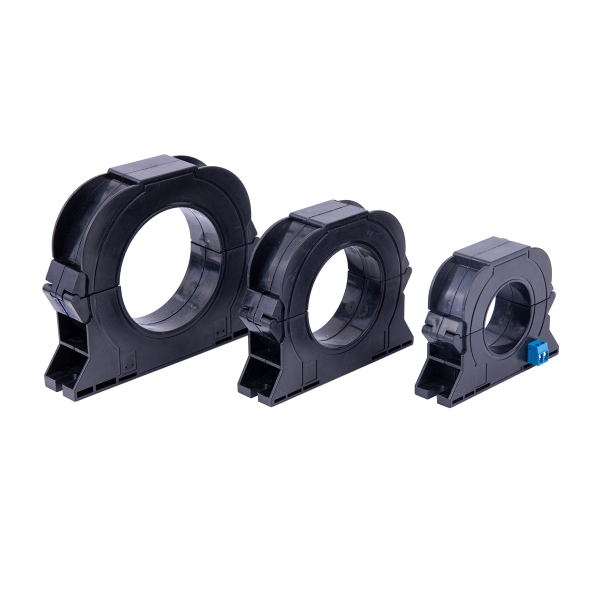

BNWAK-30B 0～1A 0～1A
(0.5mA) 		0.5
1.0 		30 88 30 68 76 M5
BNWAK-45B 45 116 33 86 92 M5
BNWAK-65B 65 130 33 105 110 M6
BNWAK-80B 80 160 33 128 143 M6
BNWAK-100B 100 188 33 154 178 M6
BNWAK-150B 150 238 33 204 228 M6

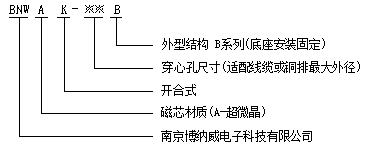

Product Model NO. Naming Rules
Installation Precautions

The live wire and the neutral wire must pass through the core hole of the transformer at the same time;

Before the iron core is closed, ensure that the end face of the incision is clean, free of stains and impurities;

Use a torque wrench (electric/pneumatic) when tightening the screws, and set the torque to a reasonable range.

We are a manufacturer has export qualification and experience.

instrument type at least 100pcs ;others by 1 -5 pcs;

T/T;L/C;

Instrument transformer 20 thousand pcs ;current transformer 12 thousand pcs ;voltage transformer 11 thousand pcs.

We have a R&D team for new product design. Successful cases and in continued cooperation. Discussion among both sides ➡general specification ensure➡structure drawing ➡original sample ➡electrical

Standard Carton Export fumigatin-free tray Tray Film Edge fixing strip Vacuum packaging acceptable Customize size acceptable
