Applications and Definition

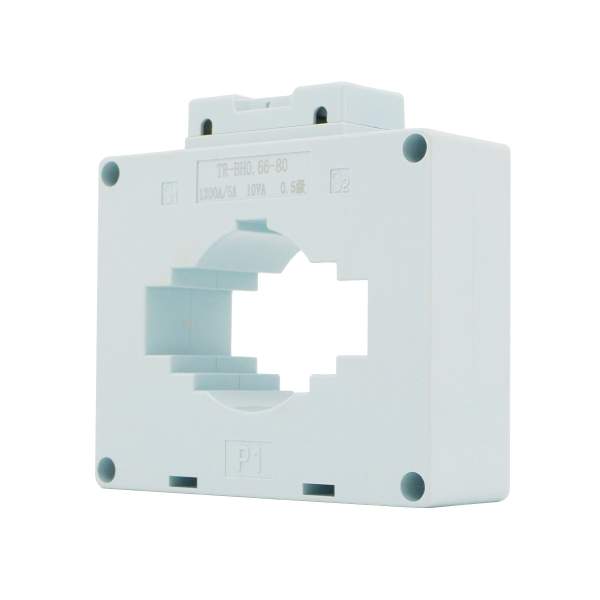

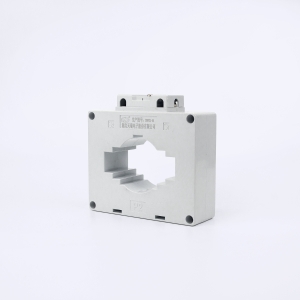

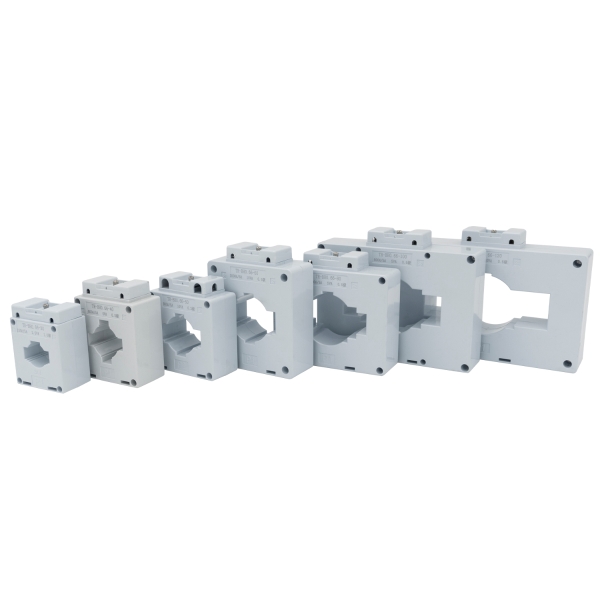

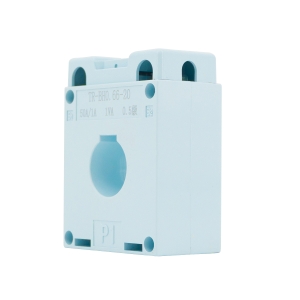

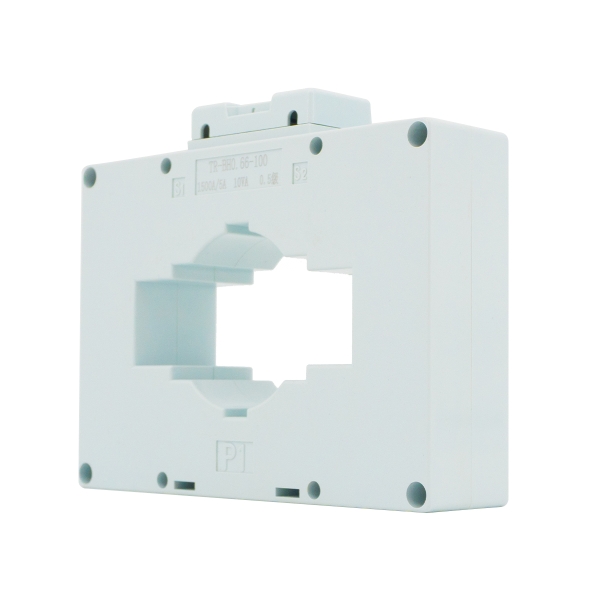

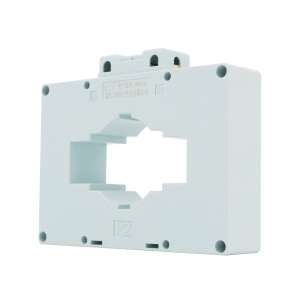

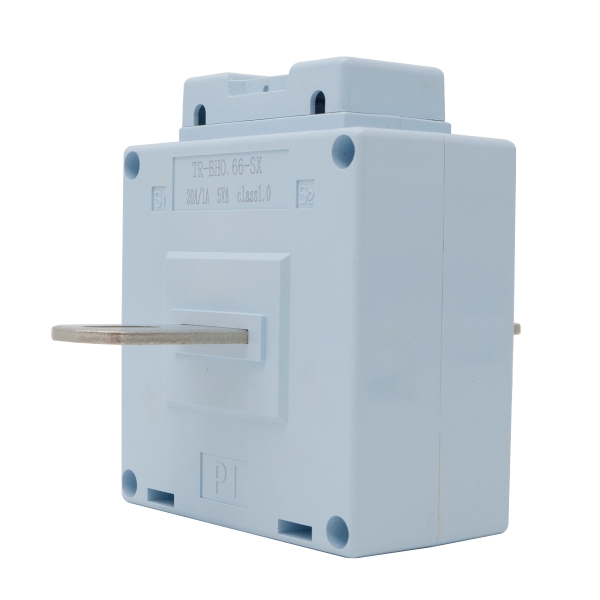

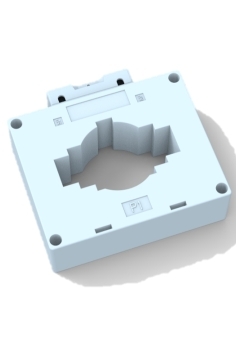

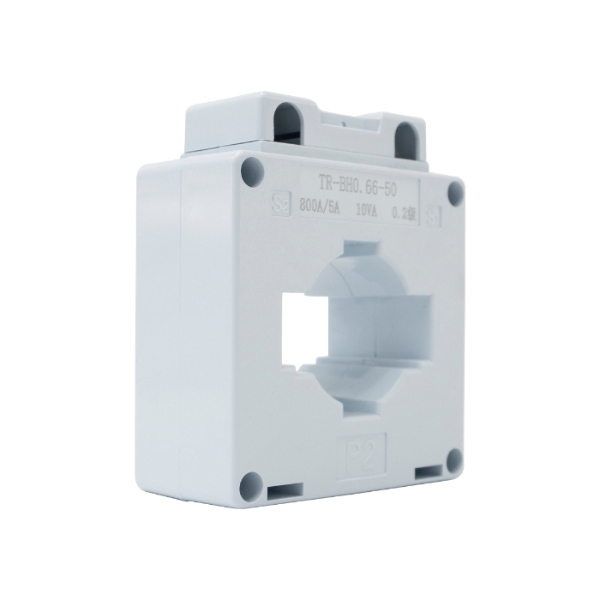

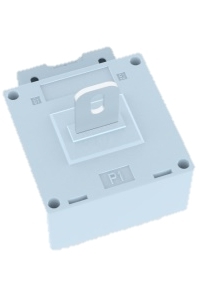

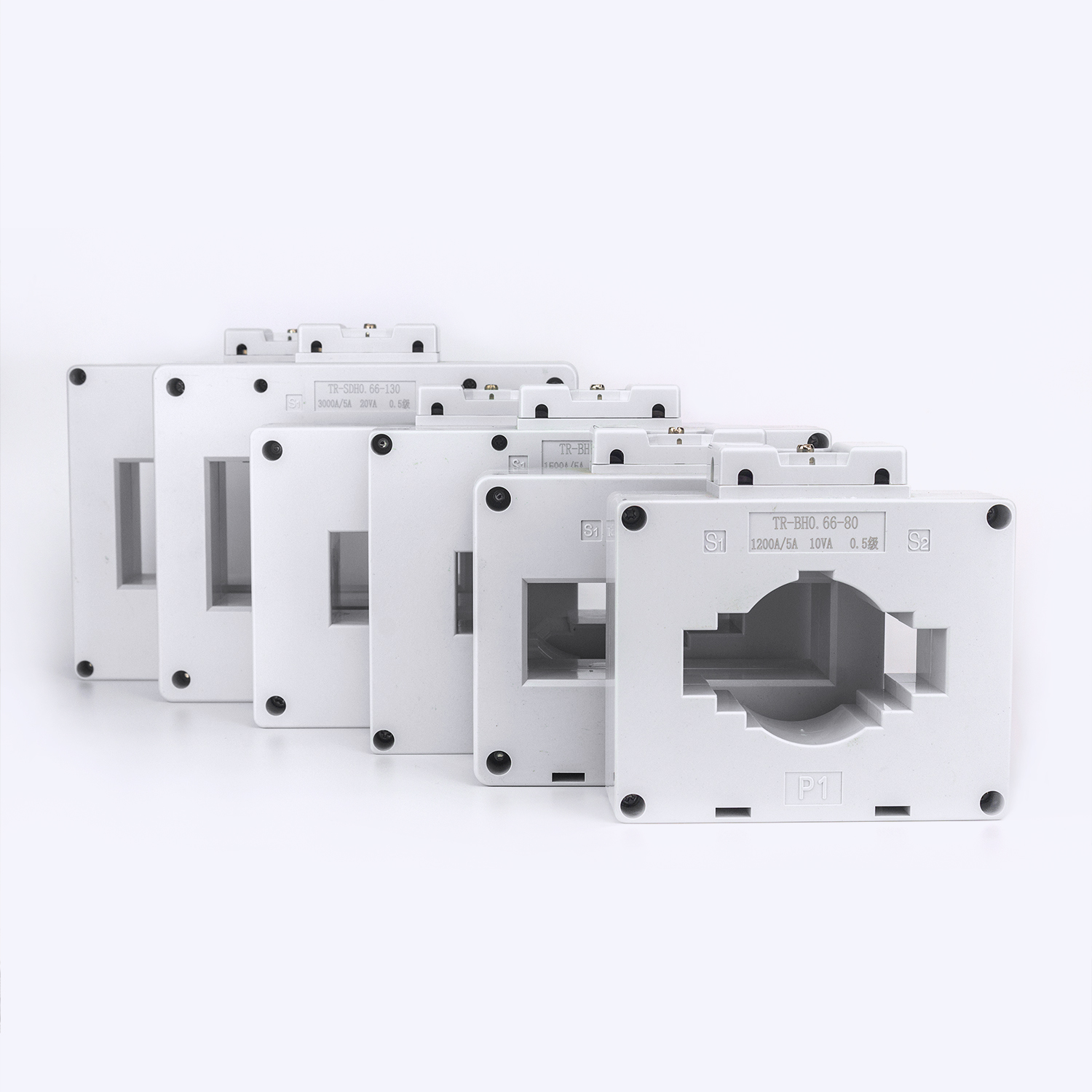

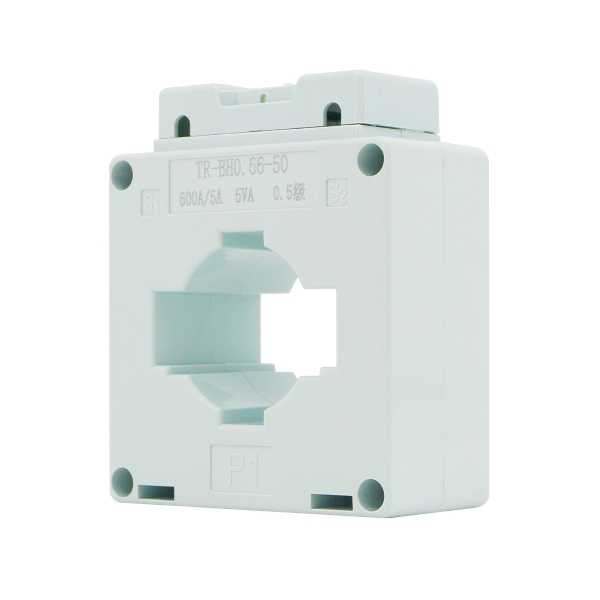

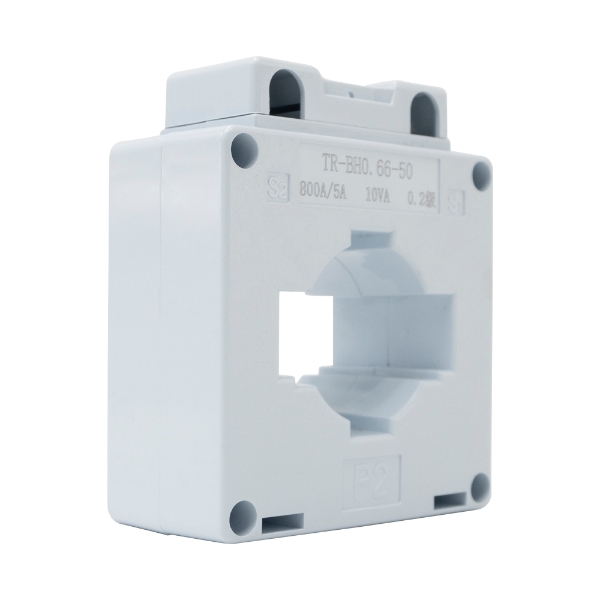

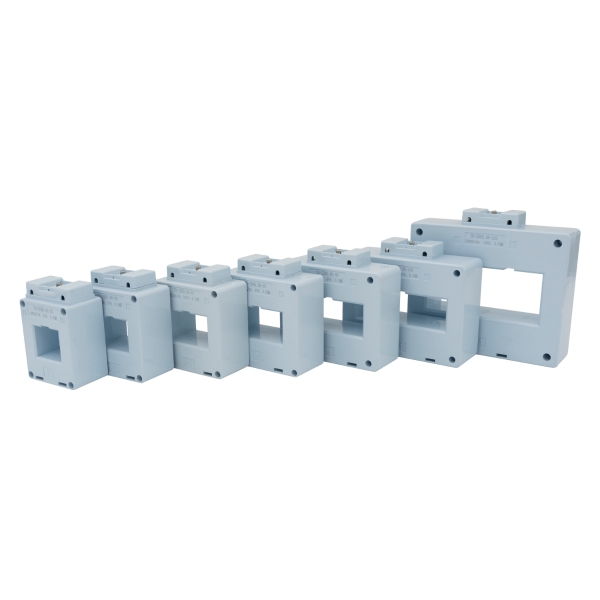

TR-BH and TR-SDH series current transformers are used in the protection test of GCS low-voltage pull-out switchgear and domino combined switchgear as well as high-power electrical equipment. They are suitable for the measurement and protection of electric energy in ac circuits with rated voltage of 0.66kV blow and rated frequency of 50Hz and 60Hz. This type of transformer has the characteristics of low price and good quality, high performance index, flexible installation mode and strong applicability, etc., and can also be customized according to user requirements.

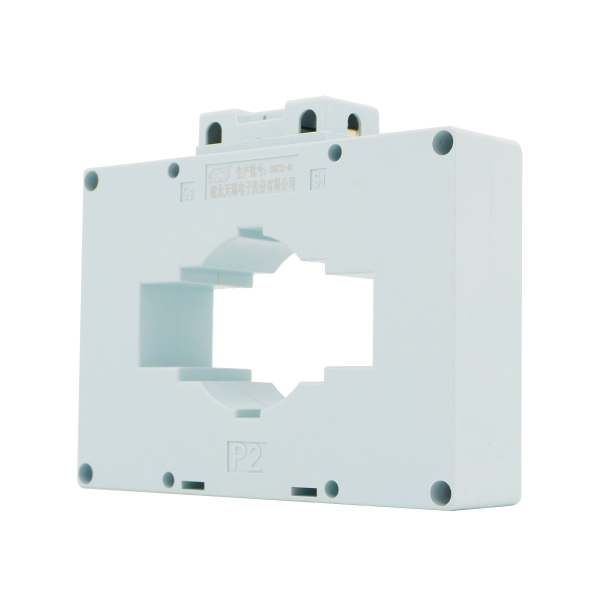

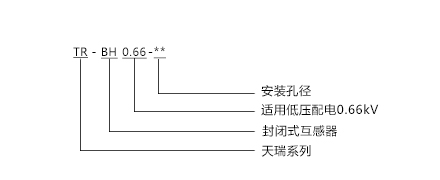

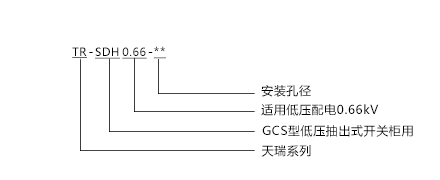

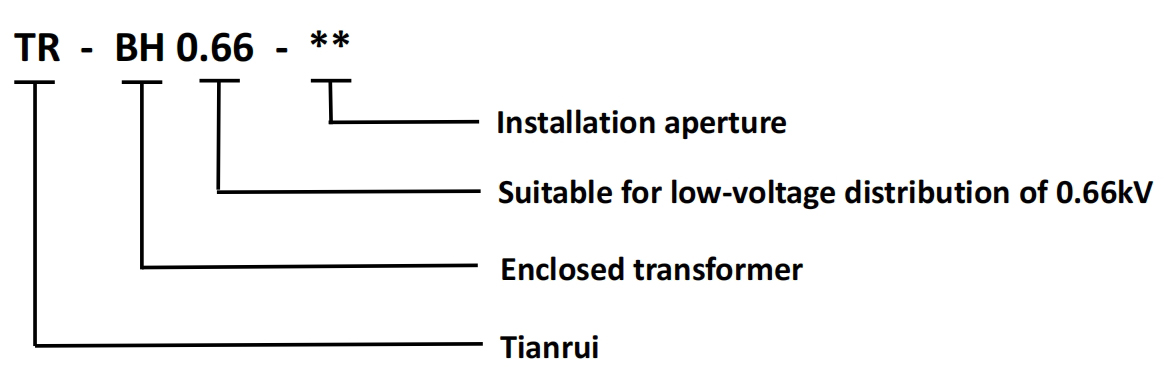

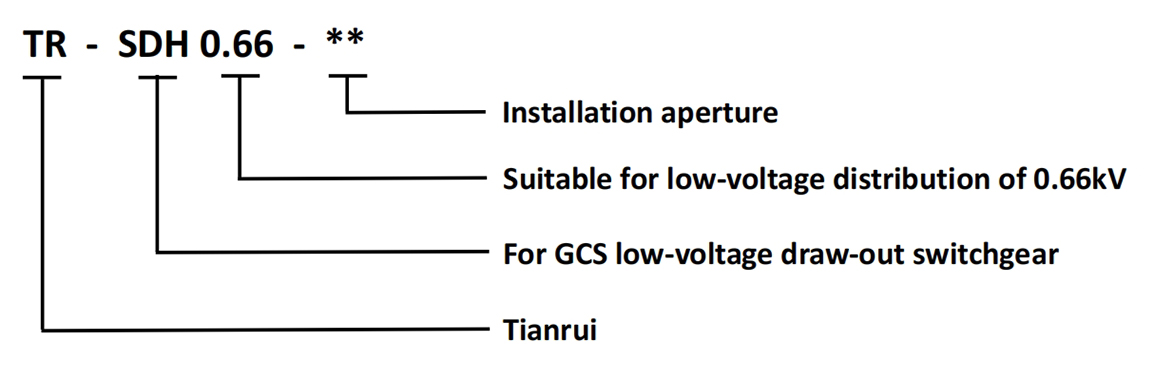

Product Model NO. Naming

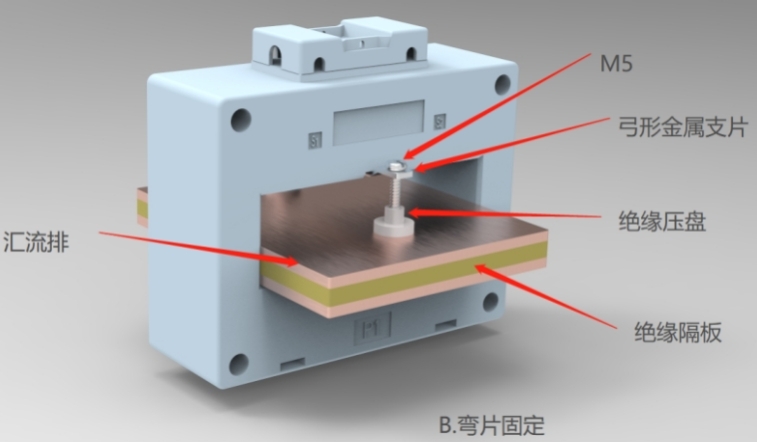

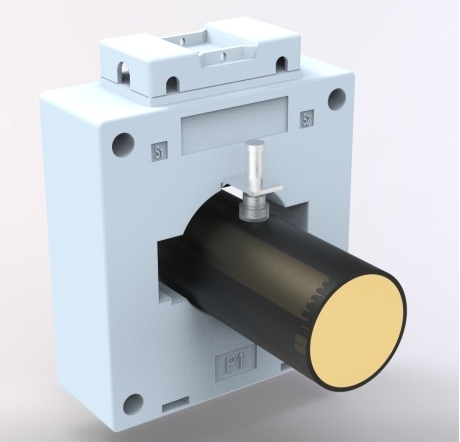

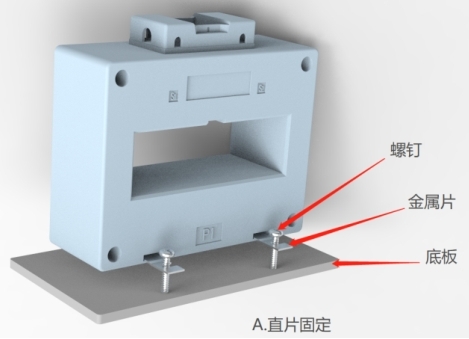

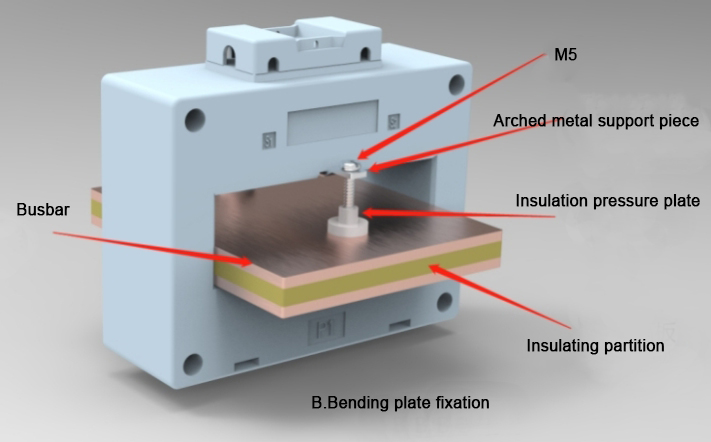

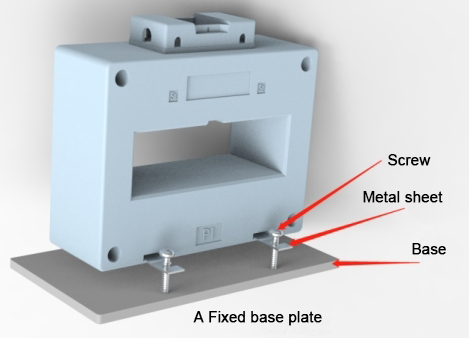

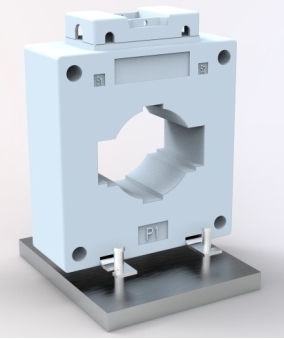

Product Installation Diagram


All series products are composed of the above two installation methods A and B, and the installation components are shipped by default.

Specifications

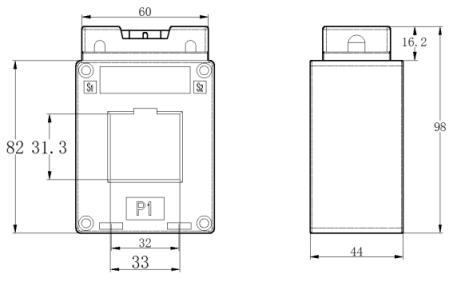

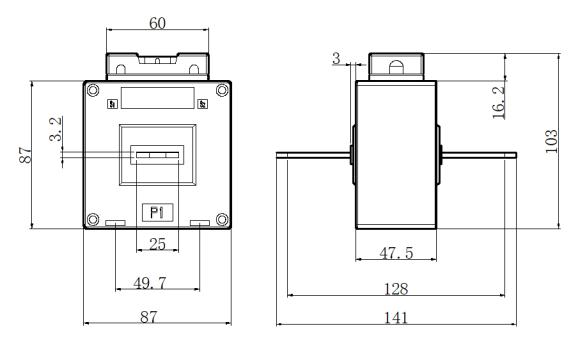

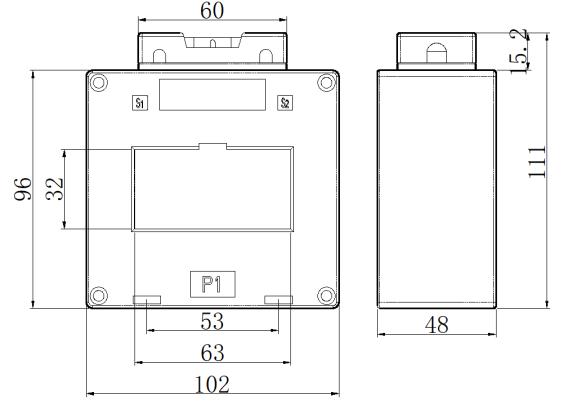

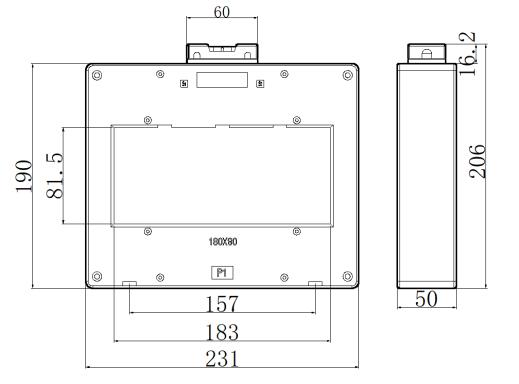

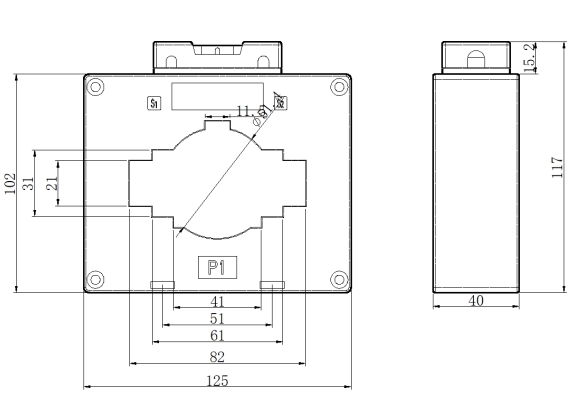

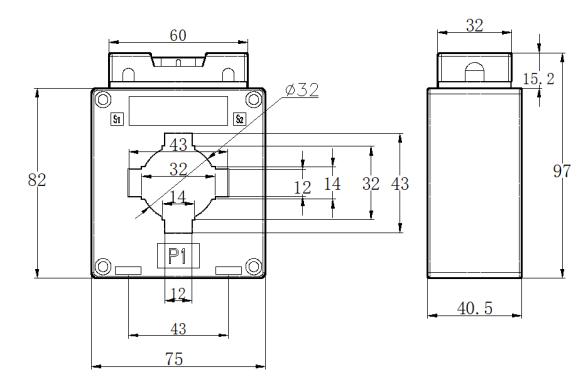

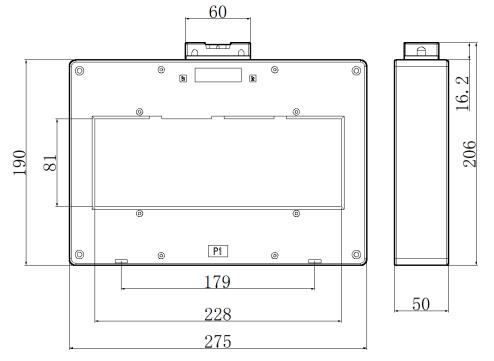

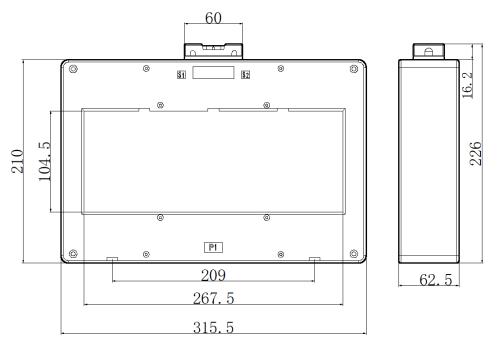

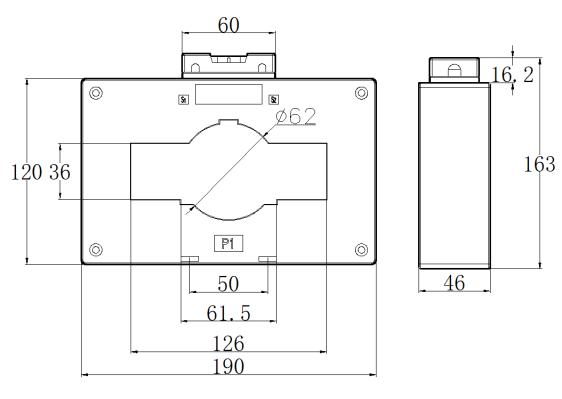

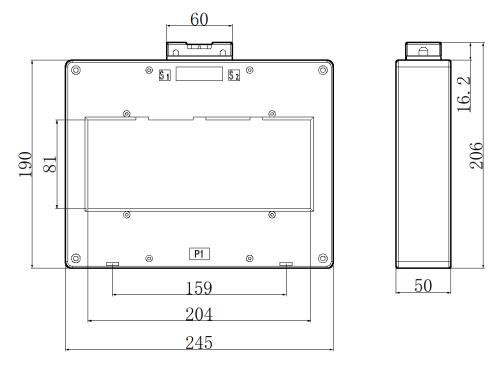

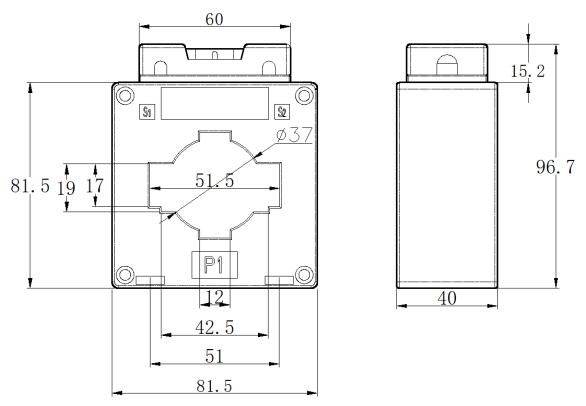

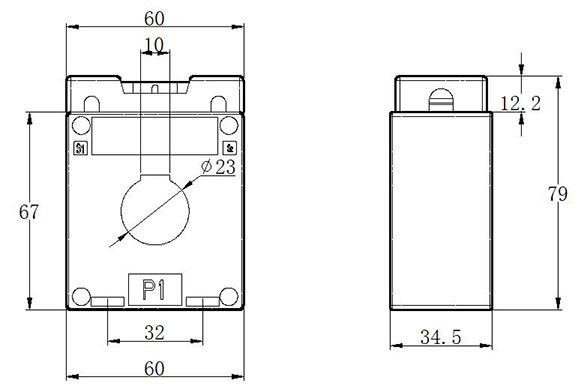

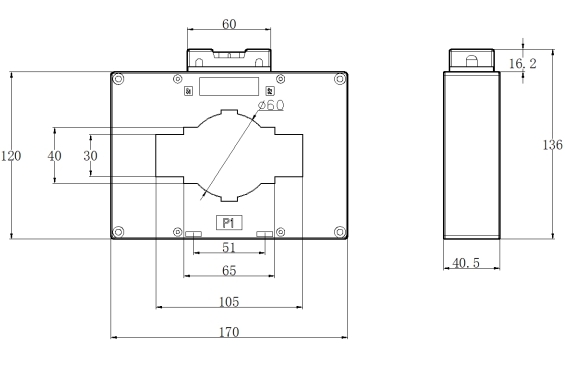

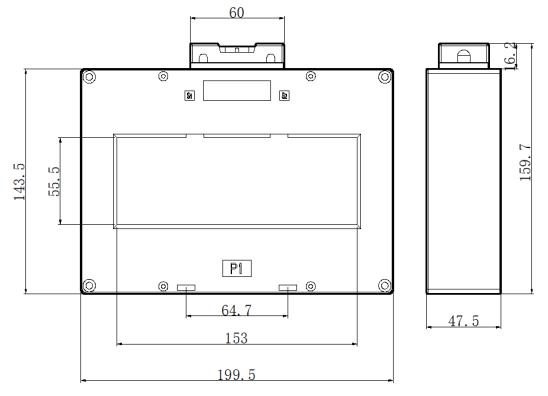

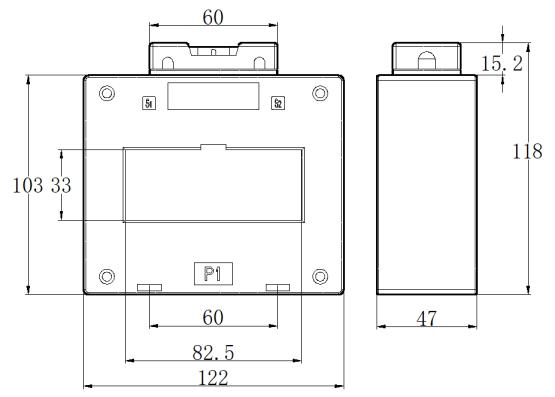

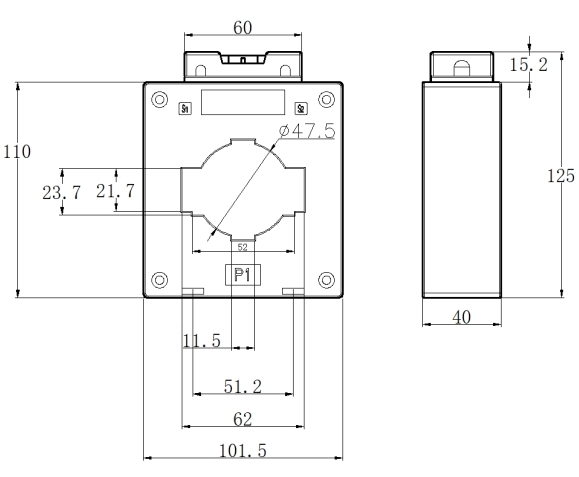

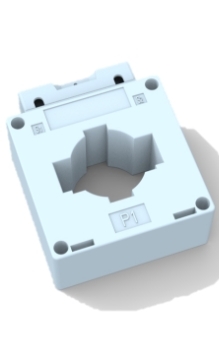

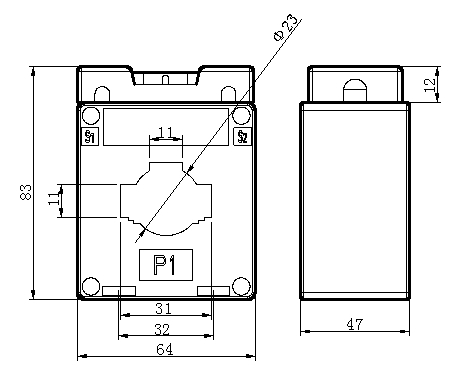

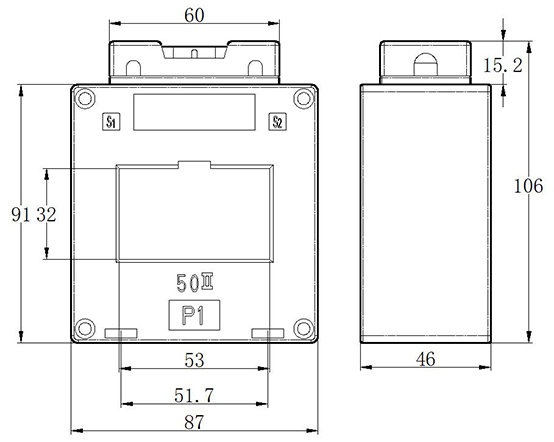

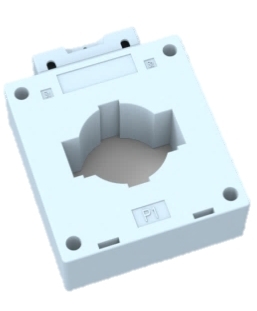

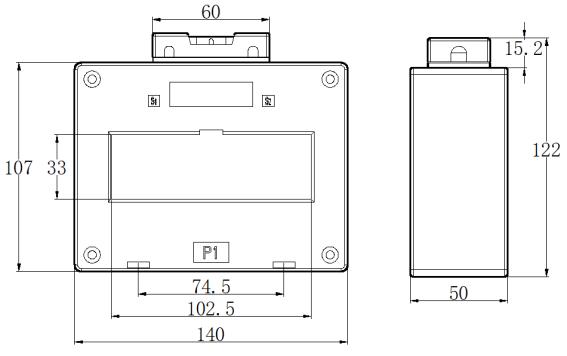

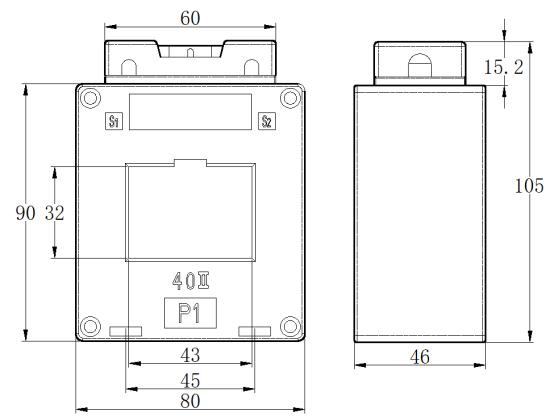

Physical Products Current Ratio Rated Secondary Load（VA） Number of Turns through core Outline and Installation Dimensions
1.0 Class 0.5 Class 0.5S Class 0.2 Class 0.2S Class

            TR-BH0.66-SX		 150/5 5 2.5 2.5 -- -- 1
200/5 5 2.5 2.5 -- -- 1
250/5 5 2.5 2.5 -- -- 1
300/5 5 5 5 5 5 1
400/5 5 5 5 5 5 1
500/5 5 5 5 5 5 1
600/5 5 5 5 5 5 1

            TR-BH0.66-20		 200/5 5 3.7 2.5 2.5 2.5 1
250/5 5 5 5 5 5 1
300/5 5 5 5 5 5 1
400/5 5 5 5 5 5 1
500/5 5 5 5 5 5 1
600/5 5 5 5 5 5 1
750/5 10 10 10 10 10 1
800/5 10 10 10 10 10 1

             TR-BH0.66-30		 200/5 5 3.7 -- -- -- 1
250/5 5 3.7 -- -- -- 1
300/5 5 5 5 5 5 1
400/5 5 5 5 5 5 1
500/5 5 5 5 5 5 1
600/5 5 5 5 5 5 1
750/5 10 10 10 10 10 1
800/5 10 10 10 10 10 1
1000/5 10 10 10 10 10 1
1200/5 10 10 10 10 10 1
1500/5 10 10 10 10 10 1
Physical Products Current Ratio Rated Secondary Load（VA） Number of Turns through core Outline and Installation Dimensions
1.0 Class 0.5 Class 0.5S Class 0.2 Class 0.2S Class

TR-BH0.66-40		 150/5 5 2.5 2.5 -- -- 1
200/5 5 2.5 2.5 -- -- 1
250/5 5 2.5 2.5 -- -- 1
300/5 5 5 5 5 5 1
400/5 5 5 5 5 5 1
500/5 5 5 5 5 5 1
600/5 5 5 5 5 5 1

TR-BH0.66-50		 200/5 5 3.7 2.5 2.5 2.5 1
250/5 5 5 5 5 5 1
300/5 5 5 5 5 5 1
400/5 5 5 5 5 5 1
500/5 5 5 5 5 5 1
600/5 5 5 5 5 5 1
750/5 10 10 10 10 10 1
800/5 10 10 10 10 10 1

TR-BH0.66-60		 200/5 5 3.7 -- -- -- 1
250/5 5 3.7 -- -- -- 1
300/5 5 5 5 5 5 1
400/5 5 5 5 5 5 1
500/5 5 5 5 5 5 1
600/5 5 5 5 5 5 1
750/5 10 10 10 10 10 1
800/5 10 10 10 10 10 1
1000/5 10 10 10 10 10 1
1200/5 10 10 10 10 10 1
1500/5 10 10 10 10 10 1
Physical Products Current Ratio Rated Secondary Load（VA） Number of Turns through core Outline and Installation Dimensions
1.0 Class 0.5 Class 0.5S Class 0.2 Class 0.2S Class

TR-BH0.66-80		 300/5 5 5 -- -- -- 1
400/5 5 5 5 5 5 1
500/5 5 5 5 5 5 1
600/5 5 5 5 5 5 1
750/5 10 10 10 10 10 1
800/5 10 10 10 10 10 1
1000/5 10 10 10 10 10 1
1200/5 10 10 10 10 10 1
1500/5 10 10 10 10 10 1
2000/5 20 20 20 20 20 1

TR-BH0.66-100		 600/5 5 5 5 5 5 1
750/5 10 10 10 10 10 1
800/5 10 10 10 10 10 1
1000/5 10 10 10 10 10 1
1500/5 10 10 10 10 10 1
2000/5 20 20 20 20 20 1
2500/5 20 20 20 20 20 1

TR-BH0.66-120		 800/5 10 10 -- -- -- 1
1000/5 10 10 10 10 10 1
1500/5 10 10 10 10 10 1
2000/5 20 20 20 20 20 1
2500/5 20 20 20 20 20 1
3000/5 20 20 20 20 20 1
4000/5 30 30 30 30 30 1

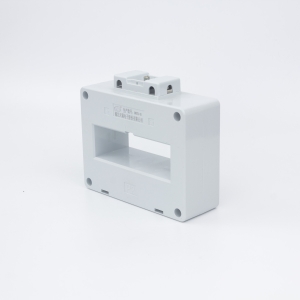

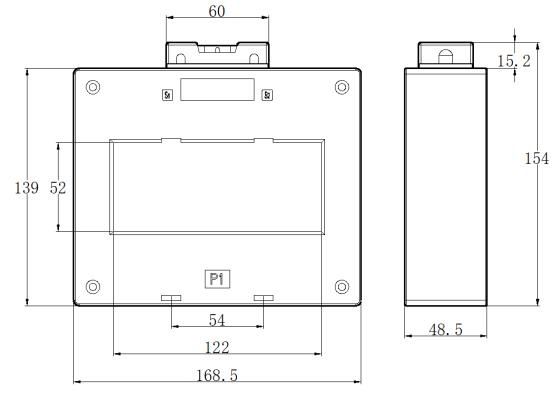

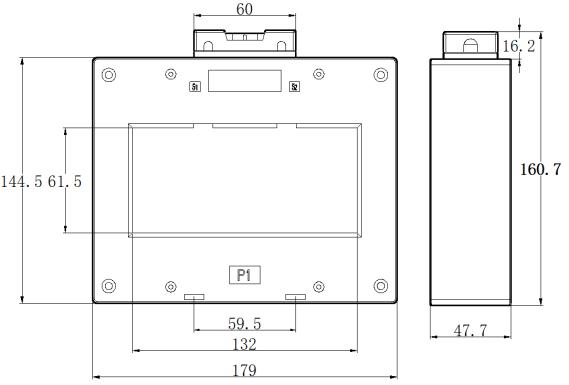

TR-SDH0.66-30		 150/5 2.5 -- -- -- -- 1
200/5 2.5 2 -- -- -- 1
250/5 5 5 2.5 2.5 2.5 1
300/5 5 5 5 5 5 1
400/5 5 5 5 5 5 1
Physical Products Current Ratio Rated Secondary Load（VA） Number of Turns through core Outline and Installation Dimensions
1.0 Class 0.5 Class 0.5S Class 0.2 Class 0.2S Class

TR-SDH0.66-40		 150/5 5 1.5 -- -- -- 1
200/5 5 2.5 -- -- -- 1
250/5 5 5 5 5 5 1
300/5 5 5 5 5 5 1
400/5 5 5 5 5 5 1
500/5 5 5 5 5 5 1
600/5 5 5 5 5 5 1

TR-SDH0.66-50		 200/5 5 5 2.5 2.5 2.5 1
250/5 5 5 5 5 5 1
300/5 5 5 5 5 5 1
400/5 5 5 5 5 5 1
500/5 5 5 5 5 5 1
600/5 5 5 5 5 5 1
750/5 10 10 10 10 10 1
800/5 10 10 10 10 10 1

TR-SDH0.66-60		 400/5 5 5 5 5 5 1
500/5 5 5 5 5 5 1
600/5 5 5 5 5 5 1
750/5 10 10 10 10 10 1
800/5 10 10 10 10 10 1
1000/5 10 10 10 10 10 1
1200/5 10 10 10 10 10 1
1500/5 10 10 10 10 10 1

TR-SDH0.66-80		 600/5 5 5 5 5 5 1
750/5 10 10 10 10 10 1
800/5 10 10 10 10 10 1
1000/5 10 10 10 10 10 1
1200/5 10 10 10 10 10 1
1500/5 10 10 10 10 10 1
2000/5 20 20 20 20 20 1
Physical Products Current Ratio Rated Secondary Load（VA） Number of Turns through core Outline and Installation Dimensions
1.0 Class 0.5 Class 0.5S Class 0.2 Class 0.2S Class

TR-SDH0.66-100		 750/5 10 10 10 10 10 1
800/5 10 10 10 10 10 1
1000/5 10 10 10 10 10 1
1200/5 10 10 10 10 10 1
1500/5 10 10 10 10 10 1
2000/5 20 20 20 20 20 1
2500/5 20 20 20 20 20 1

TR-SDH0.66-120		 1000/5 10 10 10 10 10 1
1200/5 10 10 10 10 10 1
1500/5 20 20 20 20 20 1
2000/5 20 20 20 20 20 1
2500/5 20 20 20 20 20 1
3000/5 20 20 20 20 20 1
4000/5 30 30 30 30 30 1

TR-SDH0.66-130		 800/5 10 10 -- -- -- 1
1000/5 10 10 10 10 10 1
1200/5 10 10 10 10 10 1
1500/5 10 10 10 10 10 1
2000/5 20 20 20 20 20 1
2500/5 20 20 20 20 20 1
3000/5 20 20 20 20 20 1
4000/5 30 30 30 30 30 1
5000/5 30 30 30 30 30 1

TR-SDH0.66-150		 1000/5 10 10 10 10 10 1
1200/5 10 10 10 10 10 1
1500/5 10 10 10 10 10 1
2000/5 20 20 20 20 20 1
2500/5 20 20 20 20 20 1
3000/5 20 20 20 20 20 1
4000/5 30 30 30 30 30 1
5000/5 30 30 30 30 30 1
6000/5 30 30 30 30 30 1
Physical Products Current Ratio  Rated Secondary Load（VA） Number of Turns through core Outline and Installation Dimensions
1.0 Class 0.5 Class 0.5S Class 0.2 Class 0.2S Class

TR-SDH0.66-180		 1500/5 10 10 10 10 10 1
2000/5 20 20 20 20 20 1
2500/5 20 20 20 20 20 1
3000/5 20 20 20 20 20 1
4000/5 30 30 30 30 30 1
5000/5 30 30 30 30 30 1
6000/5 30 30 30 30 30 1

TR-SDH0.66-200		 2000/5 20 20 20 20 20 1
2500/5 20 20 20 20 20 1
3000/5 20 20 20 20 20 1

4000/5

 30 30 30 30 30 1
5000/5 30 30 30 30 30 1
6000/5 30 30 30 30 30 1

TR-SDH0.66-220		 2000/5 20 20 20 20 20 1
2500/5 20 20 20 20 20 1
3000/5 20 20 20 20 20 1
4000/5 30 30 30 30 30 1
5000/5 30 30 30 30 30 1
6000/5 30 30 30 30 30 1

TR-SDH0.66-260		 2000/5 20 20 20 20 20 1
2500/5 20 20 20 20 20 1
3000/5 20 20 20 20 20 1
4000/5 30 30 30 30 30 1
5000/5 30 30 30 30 30 1
6000/5 30 30 30 30 30 1

We are a manufacturer has export qualification and experience.

instrument type at least 100pcs ;others by 1 -5 pcs;

T/T;L/C;

Instrument transformer 20 thousand pcs ;current transformer 12 thousand pcs ;voltage transformer 11 thousand pcs.

We have a R&D team for new product design. Successful cases and in continued cooperation. Discussion among both sides ➡general specification ensure➡structure drawing ➡original sample ➡electrical
