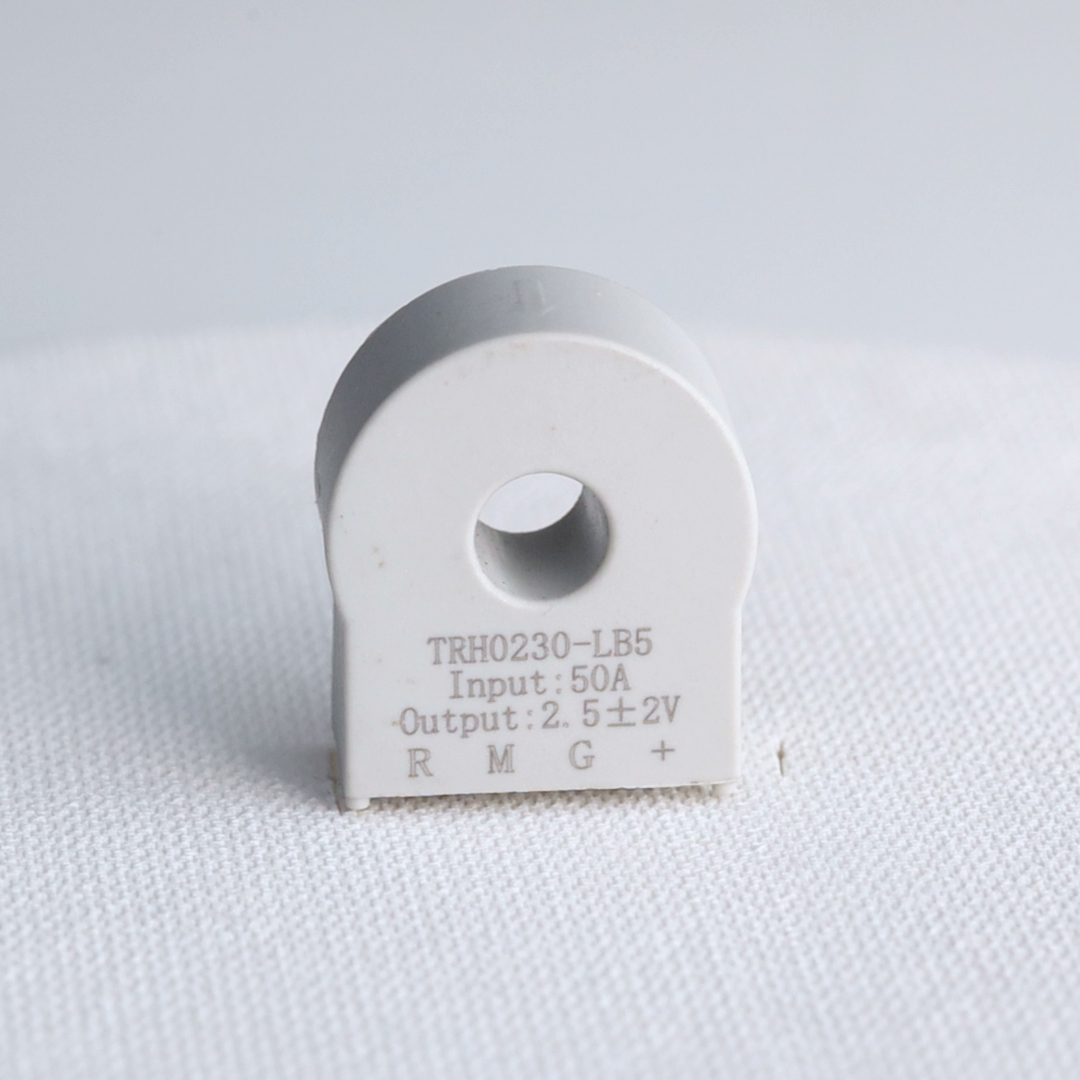

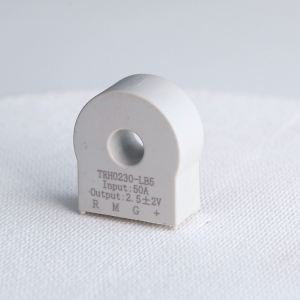

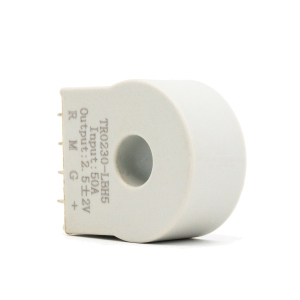

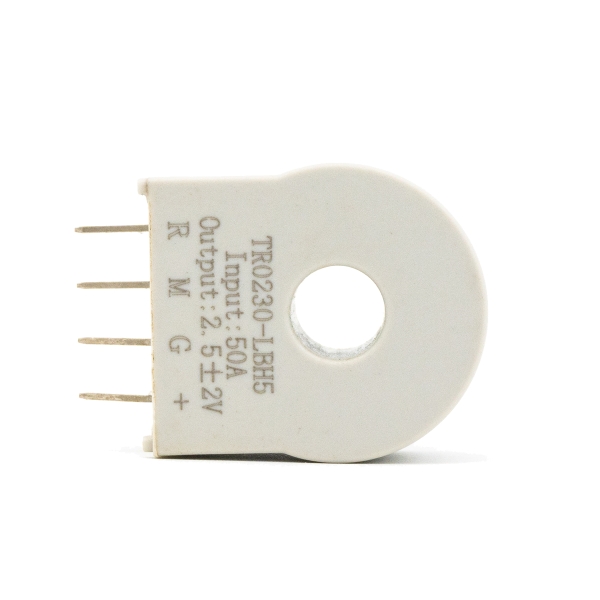

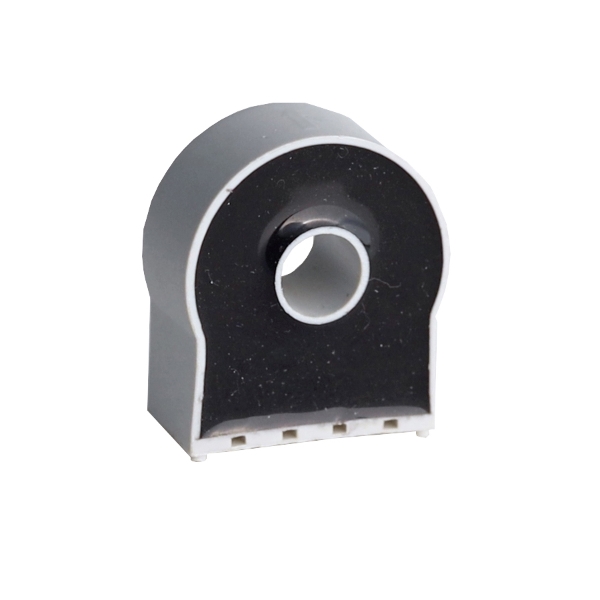

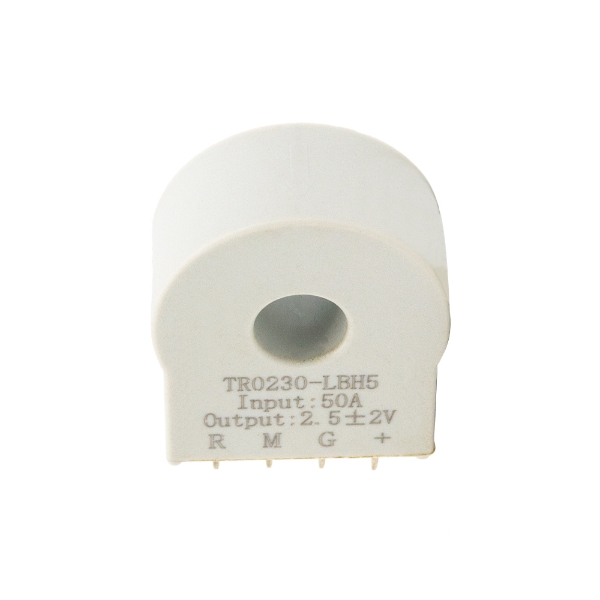

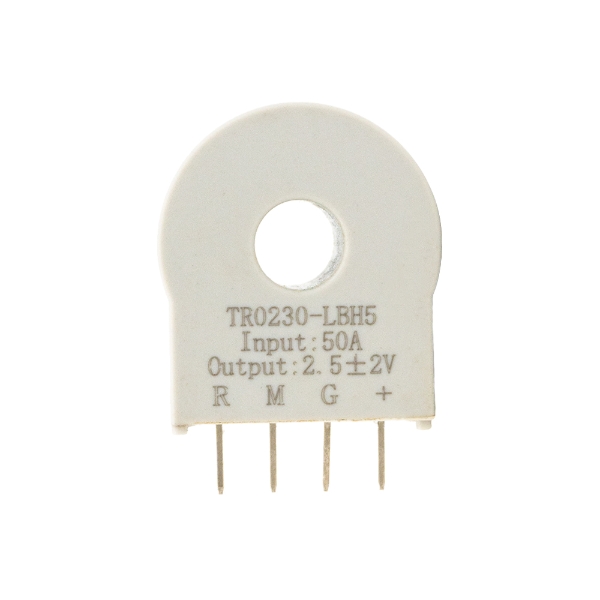

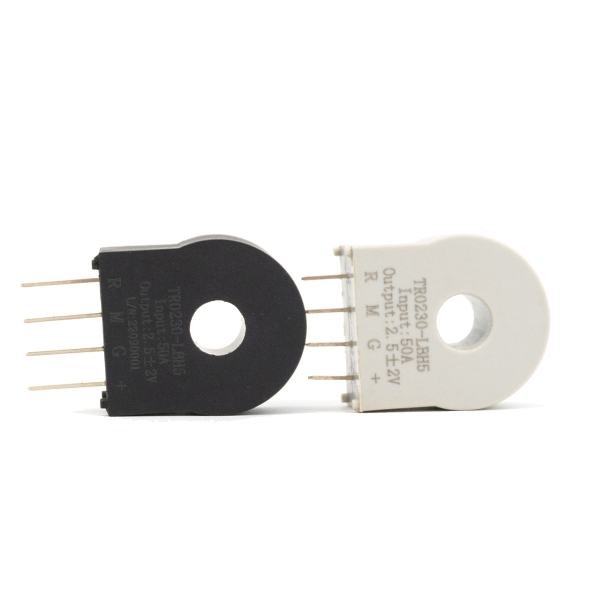

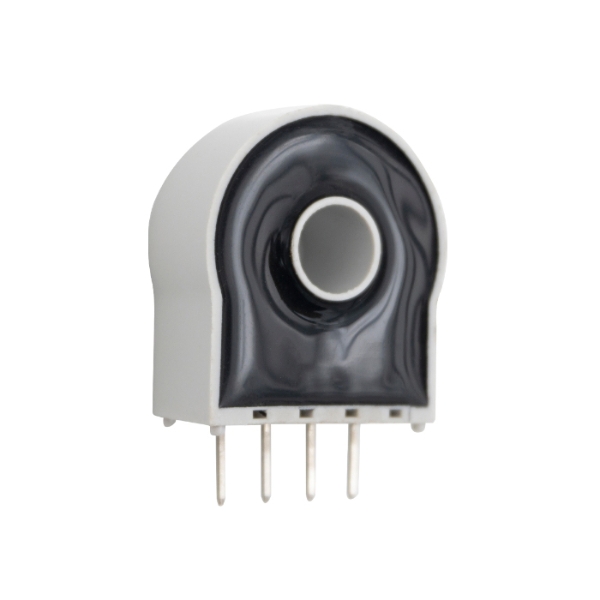

Measures AC, DC and pulsed signals
Excellent accuracy, good linearity
Strong resistance to external interference, high common mode rejection ratio
Low temperature drift, low power consumption, wide frequency band
Perforated structure, no insertion loss
AC frequency conversion speed regulation
Servo motor traction
Uninterruptible power supply(UPS)
Welding machine, battery power supply
| Specification | 10A/1V | 25A/1V | 50A/1V | Unit | |
|---|---|---|---|---|---|
| IPN | Primary Rated Input Current | 10 | 25 | 50 | A |
| IP | Primary Current Measurement Range | 0～20 | 0～50 | 0～100 | A |
| VSN | Secondary rated output voltage | 2.5±1 | V | ||
| VC | The Power Supply Voltage | +5V(±5%) | V | ||
| IC | Current Consumption | ＜20 | mA | ||
| Vd | Insulation Voltage | Between primary and secondary circuits:3kV/50Hz/1min | |||
| εL | Linearity | ＜0.1 | %FS | ||
| X | Precision | T A=25℃:≤±0.5 | % | ||
| V0 | Offset Voltage | T A=25℃:≤±10 | mV | ||
| VOM | Magnetic Offset Voltage | I P =0 after 3*IPN:≤±10 | mV | ||
| VOT | Offset voltage temperature drift | I P =0 TA=-40～+80℃:≤±0.1 | mV/℃ | ||
| Tr | Response time | ＜1 | μS | ||
| f | Bandwidth(-1dB ) | DC～200 | kHz | ||
| TA | Working Temperature | -40～+80 | ℃ | ||
| TS | Storage Temperature | -45～+85 | ℃ | ||
Note:

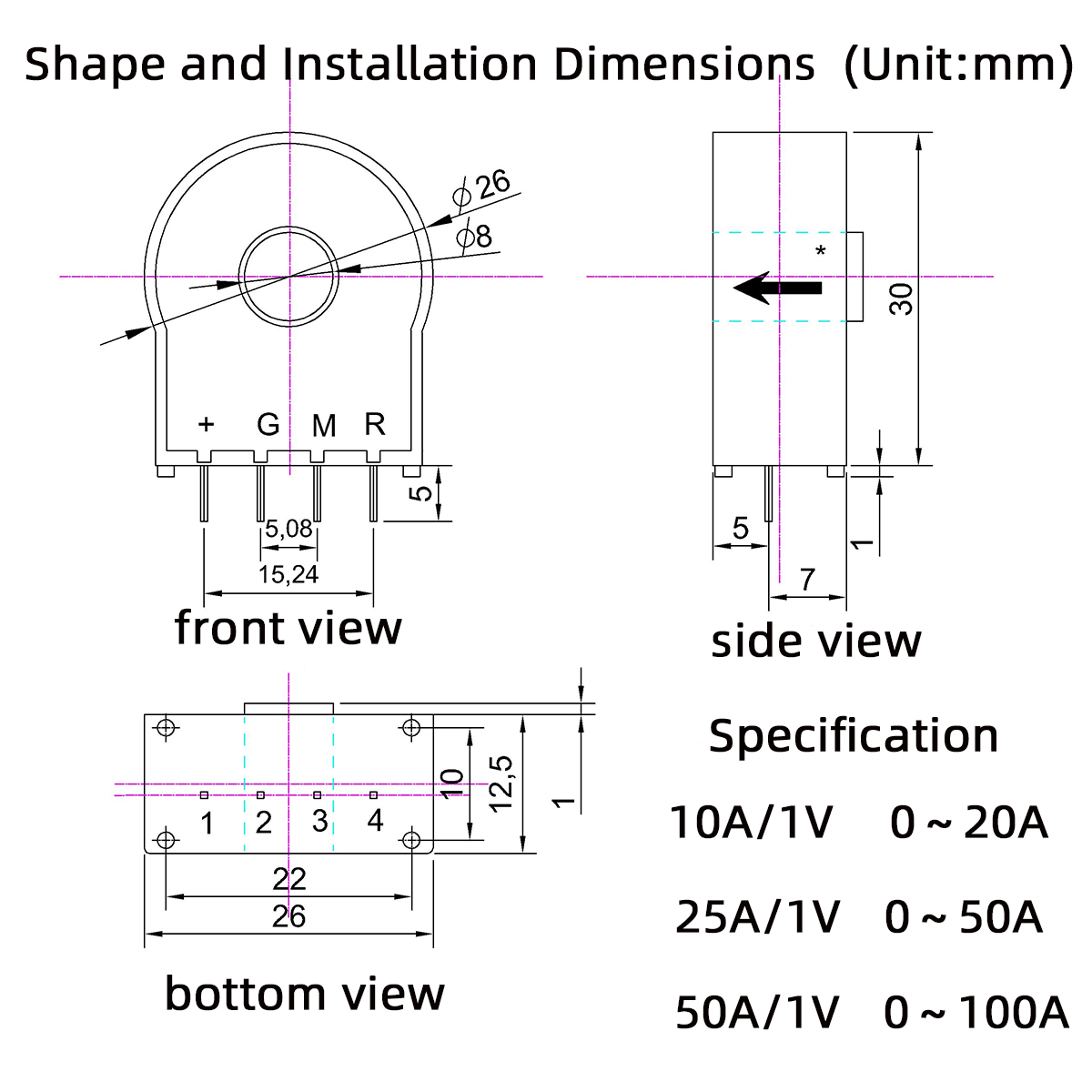

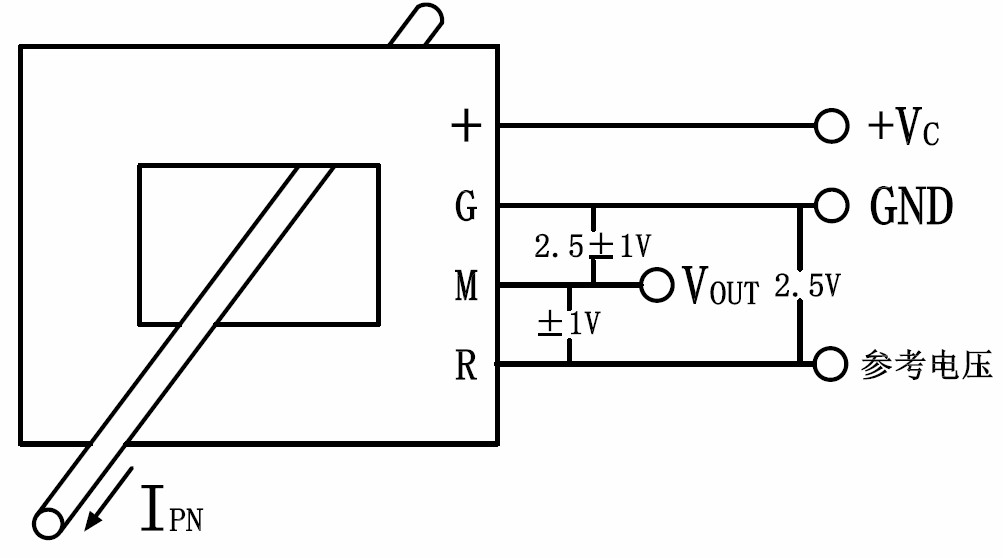

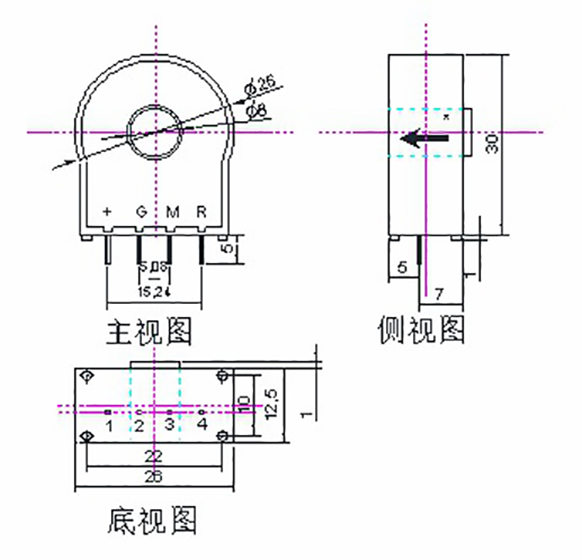

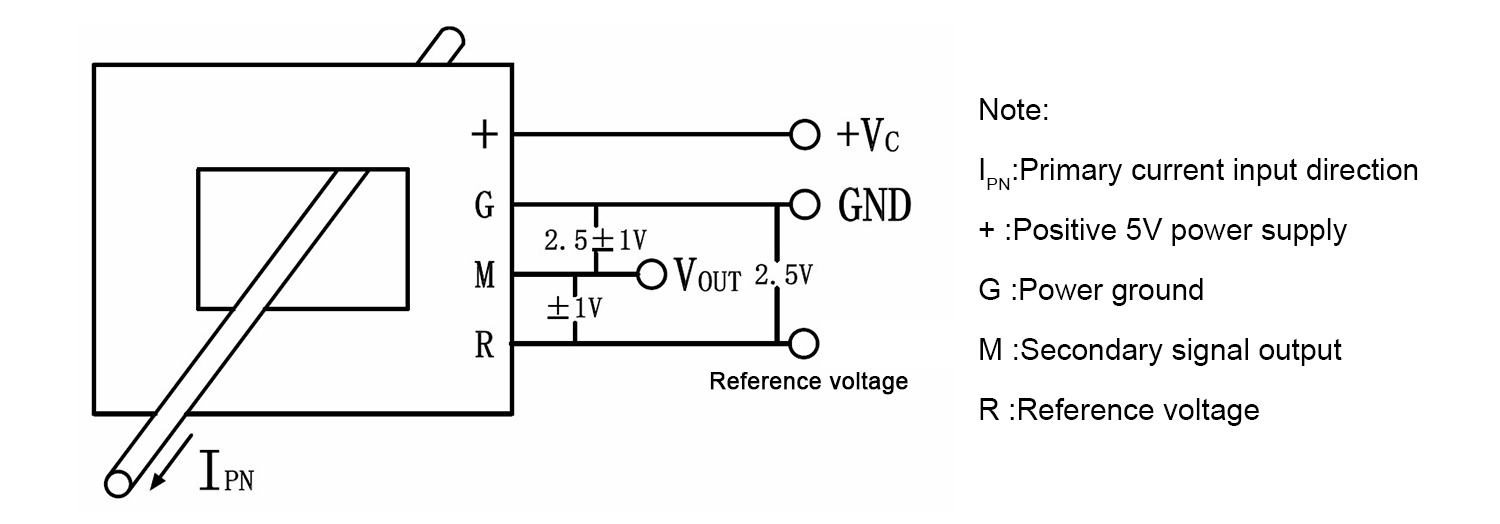

The sensor should be wired correctly, otherwise it may damage the internal components of the sensor
When the sensor is soldered to the circuit board, it needs to be soldered with a low-temperature soldering iron, and the time should not be too long, and secondly, the pins should not be squeezed by a large amount, otherwise the internal connection may be opened.
