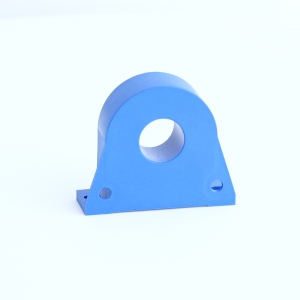

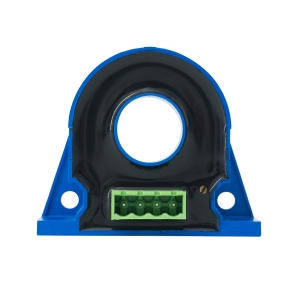

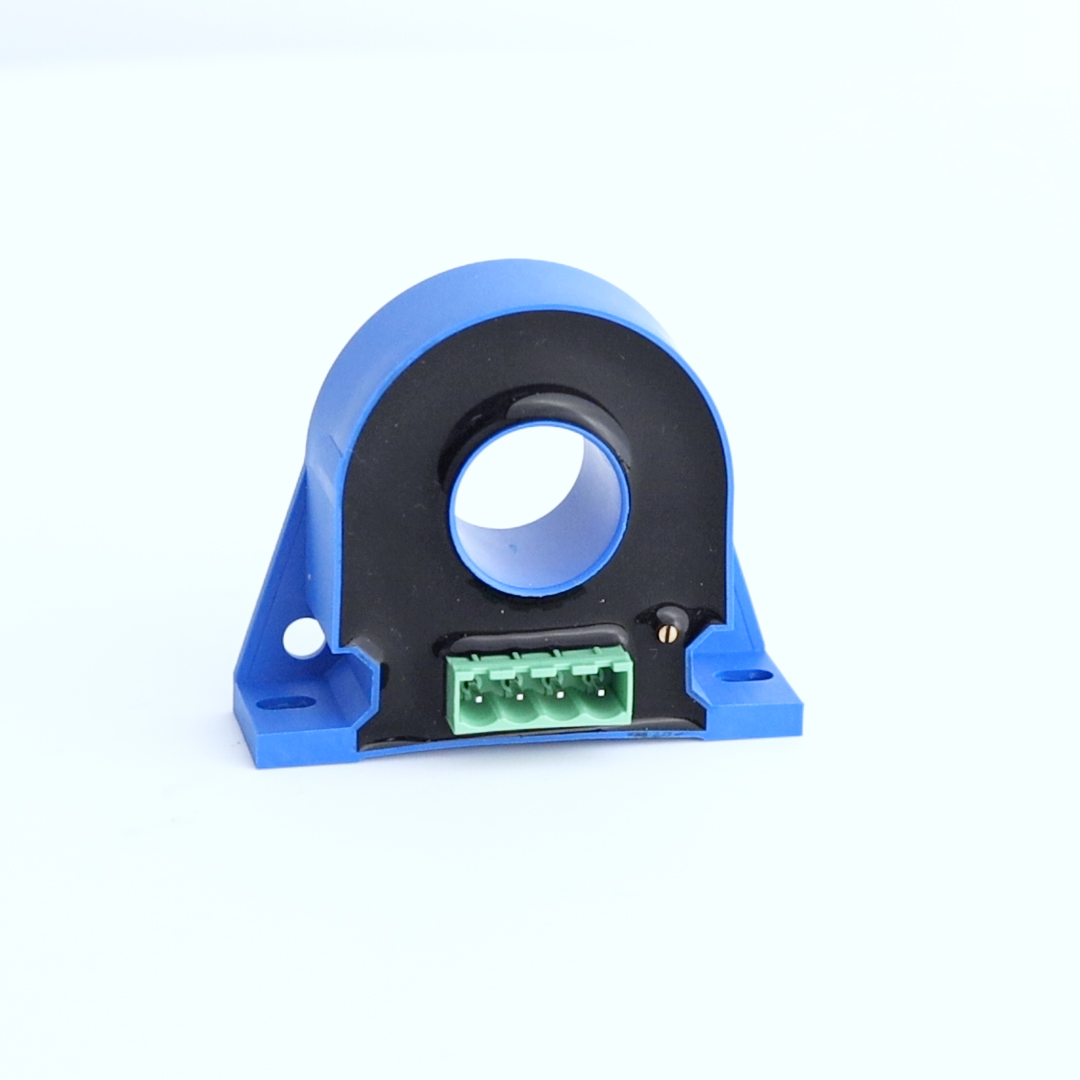

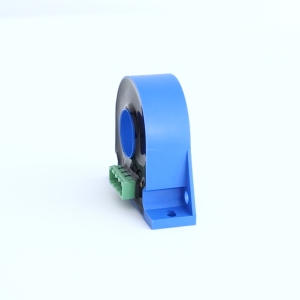

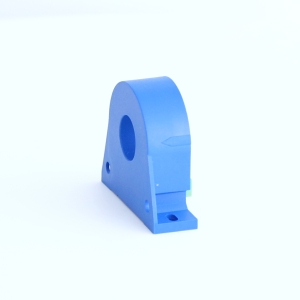

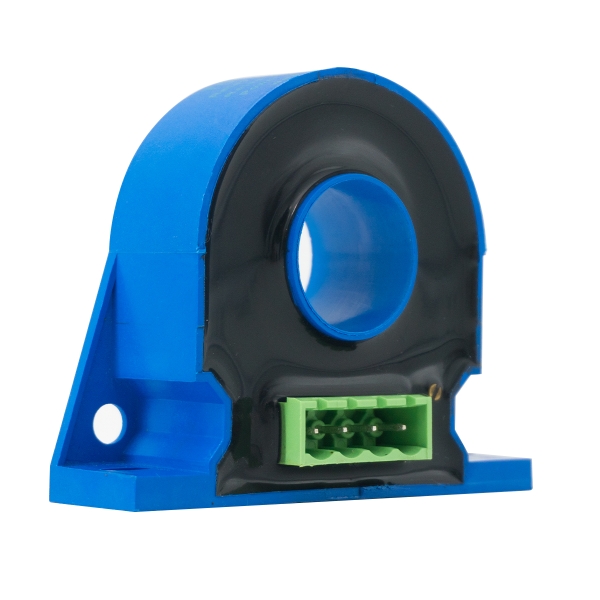

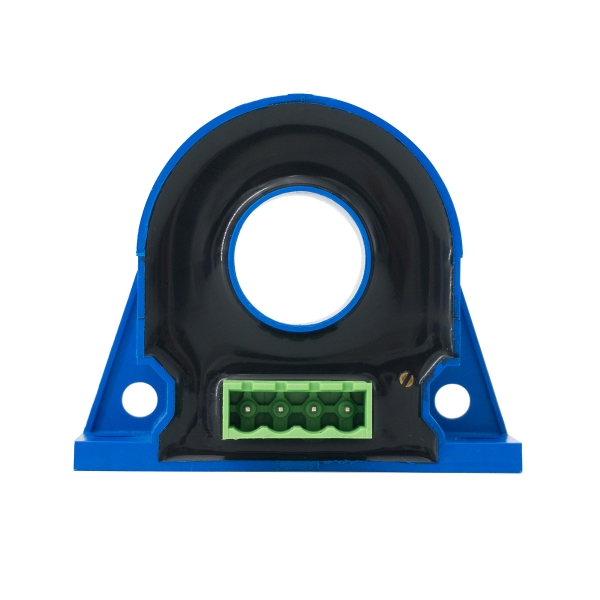

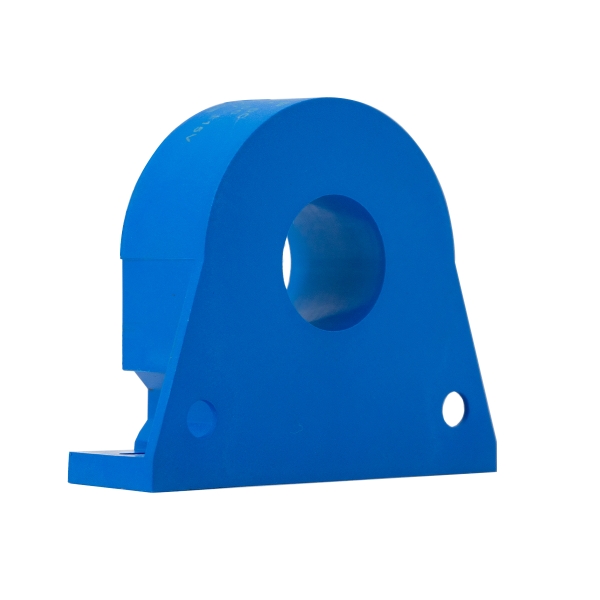

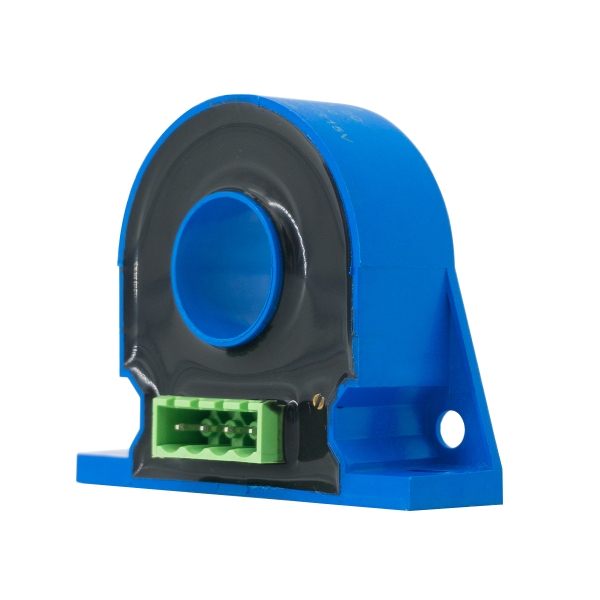

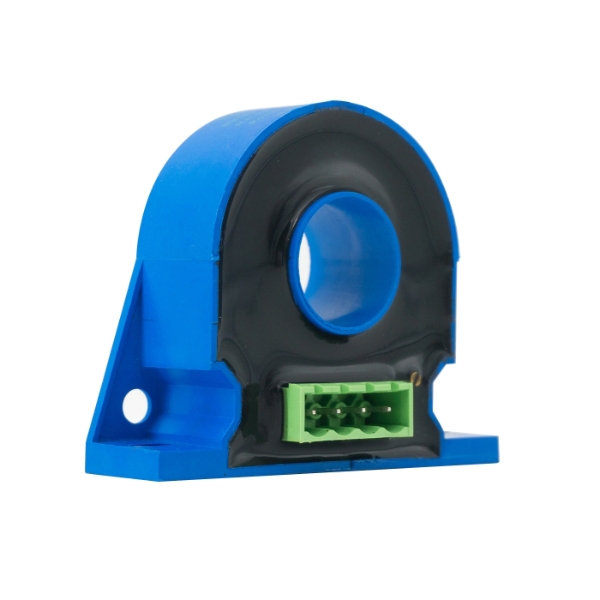

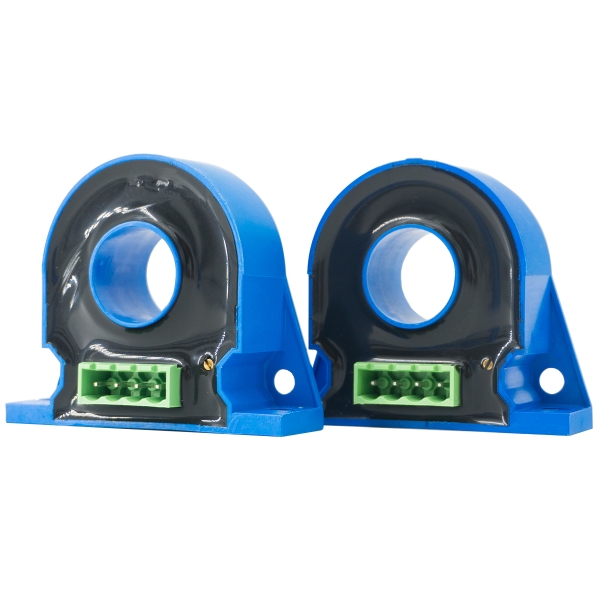

Small current measurement performance is stable
Excellent accuracy, good linearity
Wide measuring range and strong overload capacity
Perforated structure, no insertion loss
The signal system
Line detection
Leakage Monitoring System
Current difference measurement
| Specification | 10mA/5V | 50mA/5V | 200mA/5V | Unit | |
|---|---|---|---|---|---|
| IPN | Primary Rated Input Current (DC) | 10 | 50 | 200 | mA |
| IP | Primary Current Measurement Range | 0～15 | 0～75 | 0～300 | mA |
| VSN | Secondary rated output voltage(DC) | 5 | V | ||
| VC | The Power Supply Voltage | ±12～15(±5%) | V | ||
| IC | Current Consumption | ＜30 | mA | ||
| Vd | Insulation Voltage | Between primary and secondary circuits:2.5kV/50Hz/1min | |||
| εL | Linearity | ＜1 | %FS | ||
| X | Precision | TA=25℃:≤±0.5 | % | ||
| V0 | Offset Voltage | TA=25℃:≤±50 | mV | ||
| VOT | Offset Voltage Temperature Drift | Ip =0 TA =-40～+80℃:≤±1.5 | mV/℃ | ||
| Tr | Response Time | ≤120 | mS | ||
| TA | Working Temperature | -40～+80 | ℃ | ||
| TS | Storage Temperature | -45～+85 | ℃ | ||
| RL | Load Resistance | TA=25℃:≥10 | kΩ | ||

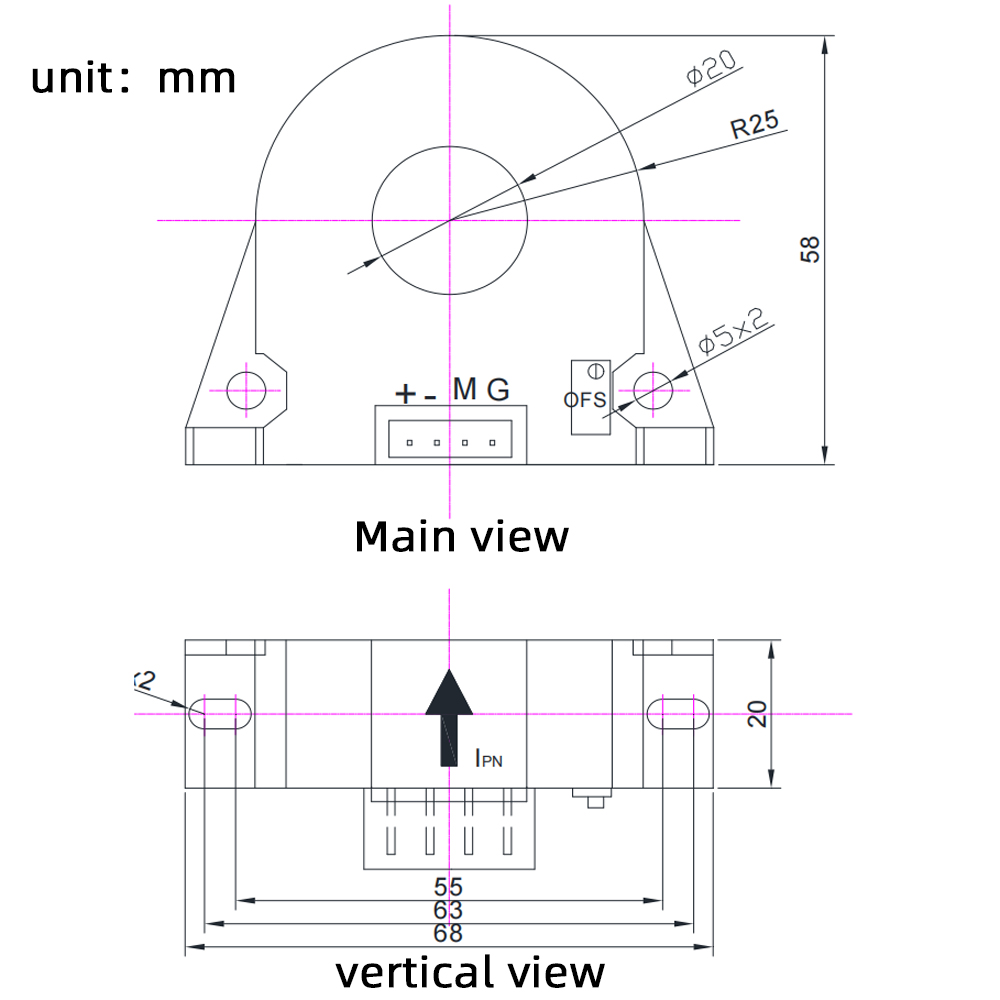

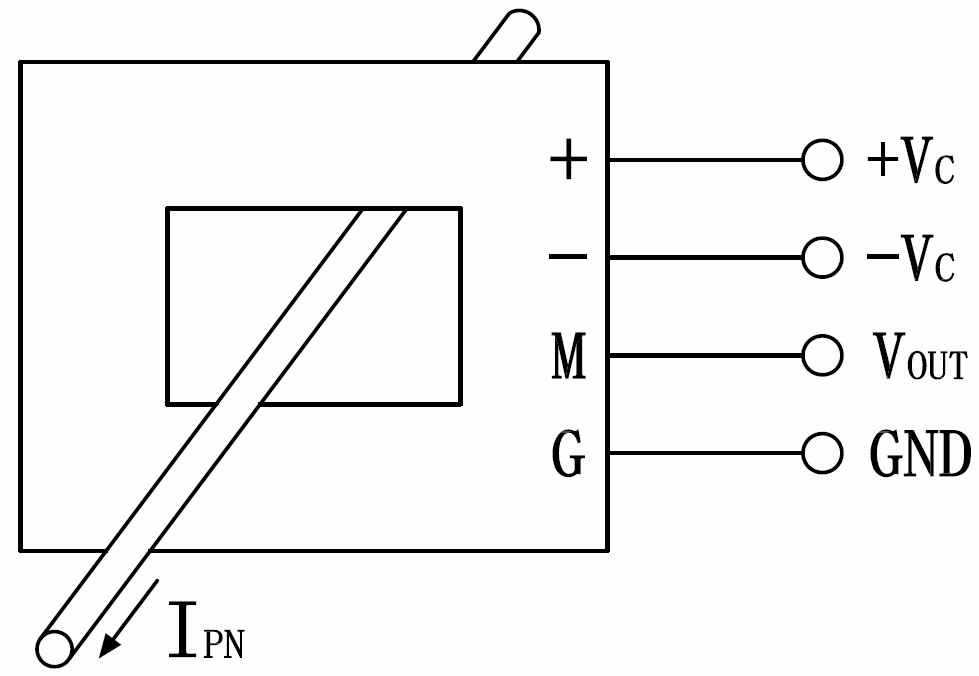

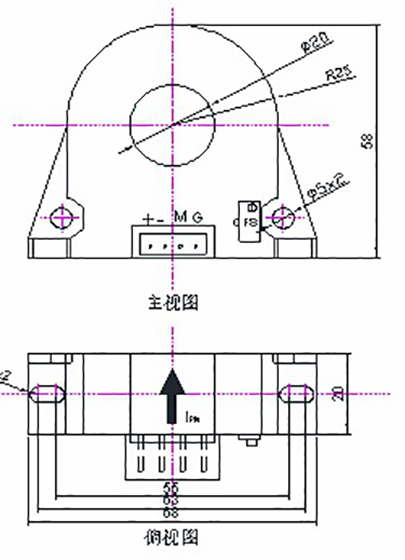

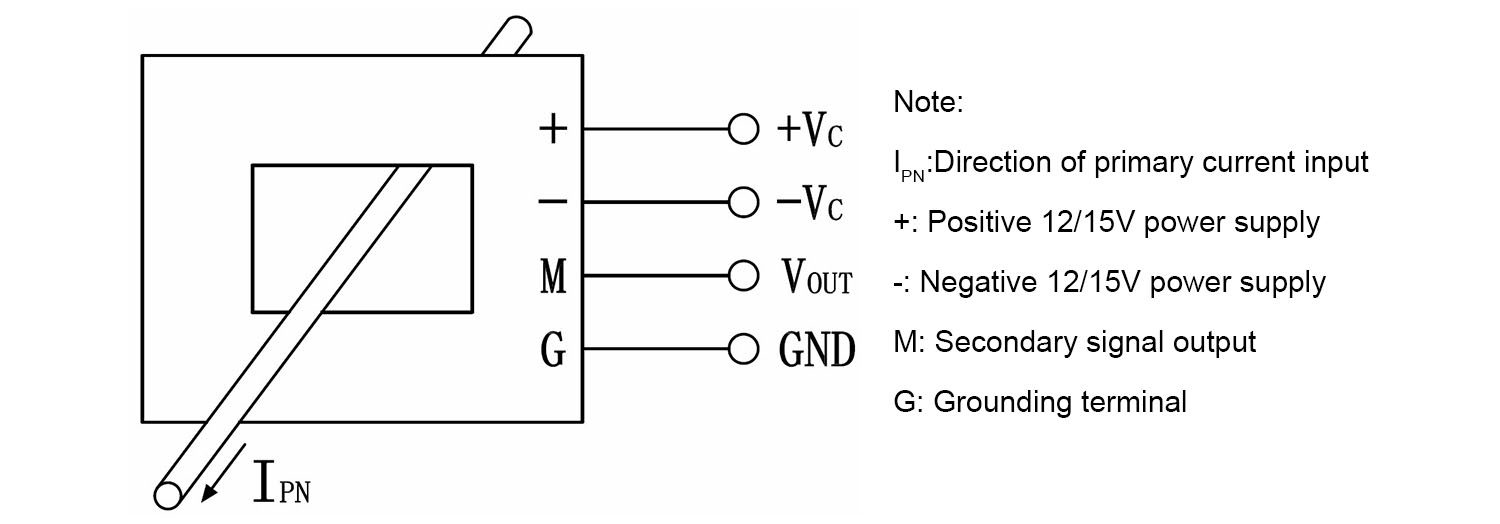

Note:
The sensor should be wired correctly, otherwise it may damage the internal components of the sensor
