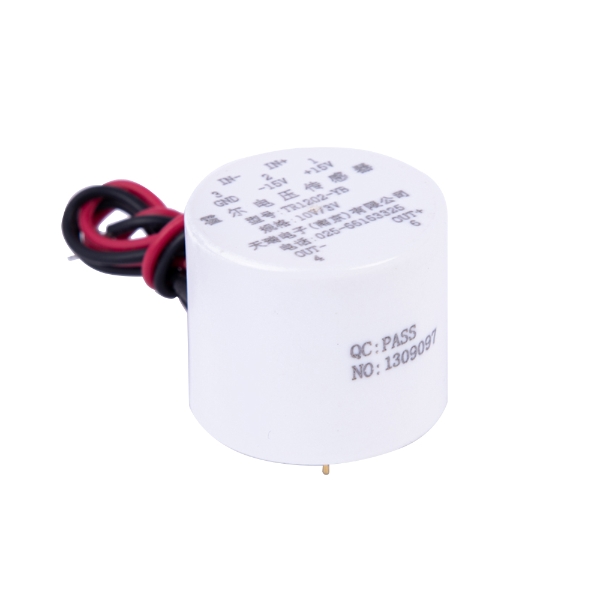

PRODUCT OVERWIEW

The sensor adopts linear optocoupler signal transmission, the primary side input and secondary side output are completely isolated, effectively overcome common mode interference, miniaturization, micro power consumption, suitable for intensive installation.
Product Features


Excellent performance and cost performance

Excellent accuracy, good linearity

Strong resistance to external interference, high common mode rejection ratio

Low temperature drift, fast response time, wide frequency band

Complete isolation between primary and secondary

Scope of Application


Automatic Control

Measuring Meter

Railway Monitoring System

Circuit Monitoring System

Technical Parameter


Specification 120V/3.53V 250V/3.53V 380V/3.53V Unit
VPN Primary Rated Input Voltage 120 250 380 V
VP Primary Voltage Measurement Range 0~150 0~300 0~450 V
VSN Secondary Rated Output Voltage 3.53 V
VC The Power Supply Voltage +12(±5%) V
IC Current Consumption <10 mA
Vd Insulation Voltage Between Primary and Secondary Circuits: 1.5kV/50Hz/1min
εL Linearity <0.2 %FS
X Precision TA=25℃:≤±0.5 %
V0 Offset Voltage TA=25℃:≤±25 mV
VOT Offset Voltage Temperature Drift VP=0 TA=-40~+80℃:≤0.1 mV/℃
Tr Response Time ≤15 μS
f Bandwidth DC
TA Working Temperature -40~+80
TS Storage Temperature -45~+85

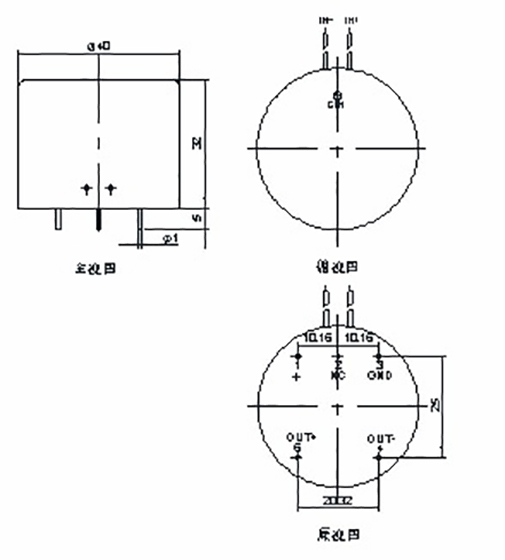

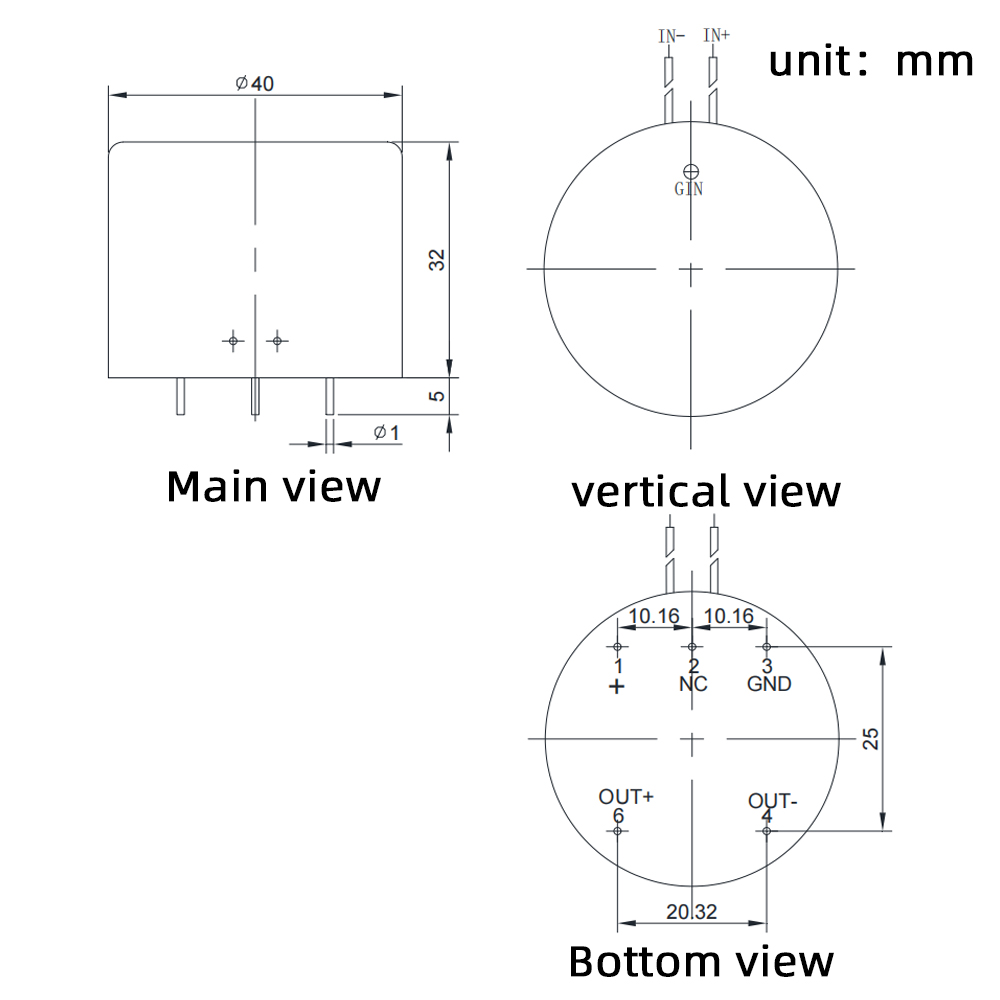

Shape and Installation Dimensions

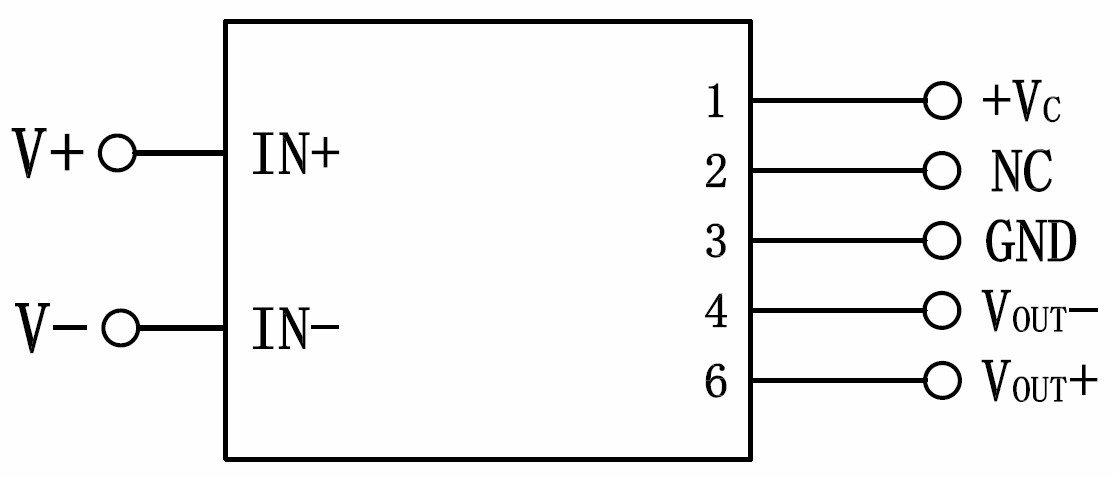

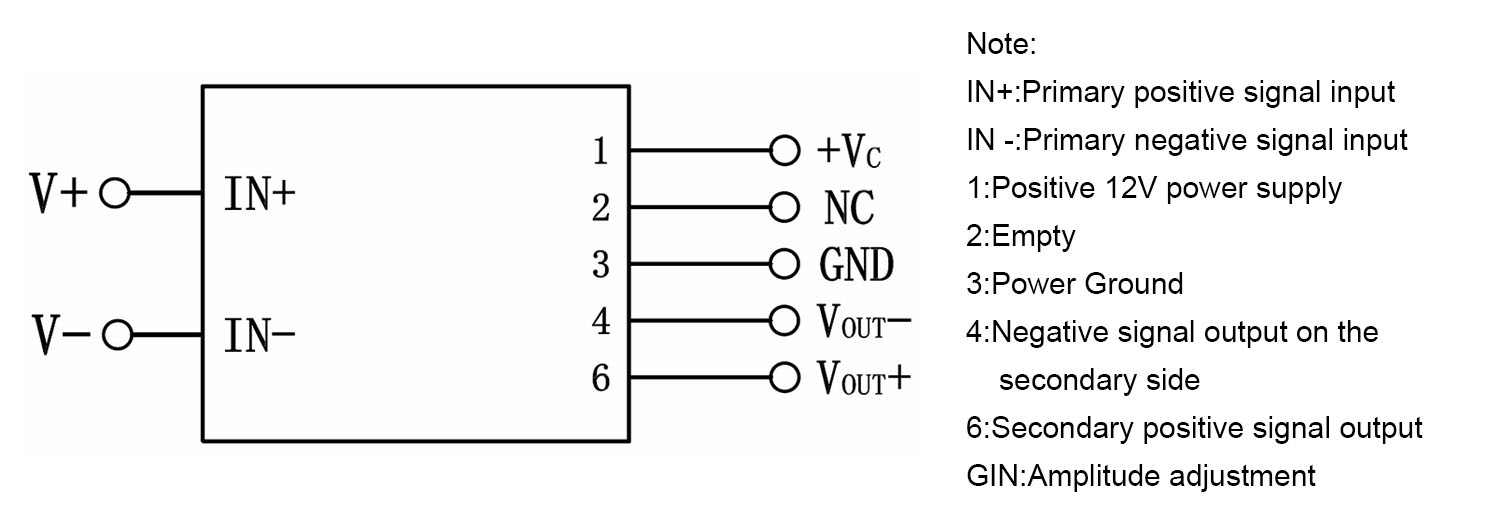

Circuit Link Diagram


Illustrate:

IN+:Primary Positive Signal Input
IN-:Primary Side Negative Signal Input
1 :Positive 12V Power Supply
2 :Null
3 :Power Ground
4 :Secondary Side Negative Signal Output
6 :Secondary Positive Signal Output
GIN:Amplitude Adjustment
Installation Precautions


The sensor should be wired correctly, otherwise it may damage the internal components of the sensor
